Ford (4WD) Suspension Lift Kit - Carli Suspension - CS-FLVL-SIG-23

Suspension Lift Kit
CS-FLVL-SIG-23
Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 or CS-FEL-LVL-17 or CS-FTSB-LVL-17
Radius Arms: CS-FARA-LVL-23
Leaf Spring Options (REQUIRED): CS-FPAP-LVL-17 or CS-FFSP-LVL-17 or CS-FFSP-LVL-17-HD
Leaf Spring Shackle: CS-FSHACKLE-11
Steering Stabilizer - High mount: CS-FHMSS-17
Steering Stabilizer - Low mount: CS-FLMSS-23
Trophy Hitch: CS-FHITCH-1723
Carli Ford Leveling System
The Carli Signature Leveling System is the entry level kit designed for the customer who wants to improve their ride and have the option to upgrade over time.

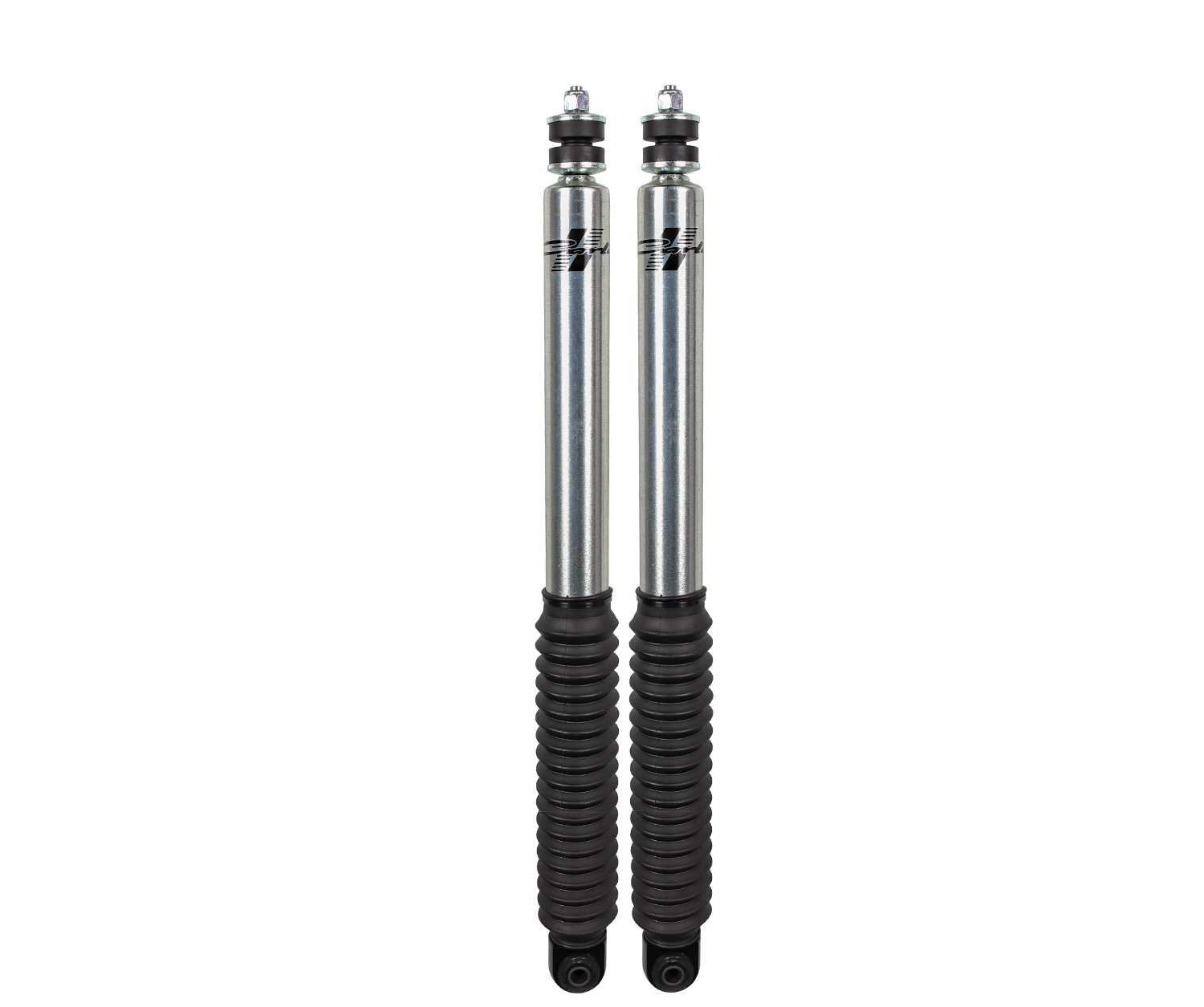

Carli Signature Series Shocks are Carli tuned and corrosion resistant to provide a durable and comfortable ride.
System includes front and rear shock package, radius arm drops, linear rate coil springs, brake line kit, bump drops, and caster correction shims.
Carli Signature Series shocks carry a limited lifetime warranty so you can upgrade without worry.
Increases wheel travel to 9" front and 13" rear.
23+ FORD F250/350 4X4 DIESEL 3.5" LEVELING SYSTEM
Carli Signature Leveling System, Base, 3.5” Lift, 2023+ Ford F250/F350, Diesel
Parts Included: CS-FBDF-25-17; CS-FCASTERSHIM-45; CS-FLC-05; CS-FORDBBL-LVL-17-F; CS-FSIG20SPKG-FRONT-LVL-05; CS-FRAD-LVL-2325
Carli Signature Series Shocks are Carli tuned and corrosion resistant to provide a durable and comfortable ride.
System includes front and rear shock package, radius arm drops, linear rate coil springs, brake line kit, bump drops, and caster correction shims.
Carli Signature Series shocks carry a limited lifetime warranty so you can upgrade without worry.
Increases wheel travel to 9" front and 13" rear.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Coils Quantity Front: 2
Maximum Lift: 3.5
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel

Detailed Fitment Results
Year Make Model Drive Type 2023 Ford F-250 Super Duty 4WD 2023 Ford F-350 Super Duty 4WD 2024 Ford F-250 Super Duty 4WD 2024 Ford F-350 Super Duty 4WD 2025 Ford F-250 Super Duty 4WD 2025 Ford F-350 Super Duty 4WD 2026 Ford F-250 Super Duty 4WD 2026 Ford F-350 Super Duty 4WD
