Ford (4WD) Suspension Lift Kit - Carli Suspension - CS-FLVL-PT25-23

Pintop Suspension
CS-FLVL-PT25-23
Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-FSBD-LVL-1723 orCS-FELKIT-LVL-17 or CS-FTSB-LVL-17
Radius Arms: CS-FARA-LVL-23
Leaf Spring Options (REQUIRED): CS-FFSP-LVL-17 or CS-FPAP-LVL-17
Leaf Spring Shackle: CS-FSHACKLE-11
Steering Stabilizer - High mount: CS-FHMSS-17
Steering Stabilizer - Low mount: CS-FLMSS-23
Carrier Bearing Drop: CS-CARRIERDROP-F
Trophy Hitch: CS-FHITCH-1723
Carli Ford Pintop Leveling System, BASE
23+ FORD F250/350 4X4 DIESEL 3.5" LIFT PINTOP SYSTEM
Carli's most popular system, The pintop kit boasts Remote Reservoir King 2.5" shocks. Designed and tuned in house for the customer looking for substantial on and offroad performance improvement.
The Carli Pintop is a Jack-of-all-trades system that delivers a sedate yet confident on-road ride with all the harsh edges rounded and smoothed while making light- to medium-duty off-road escapades completely controlled and uneventful. The system features Carli-specific, blueprinted, King 2.5” shocks on all four corners. With a 2.5” diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0” shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

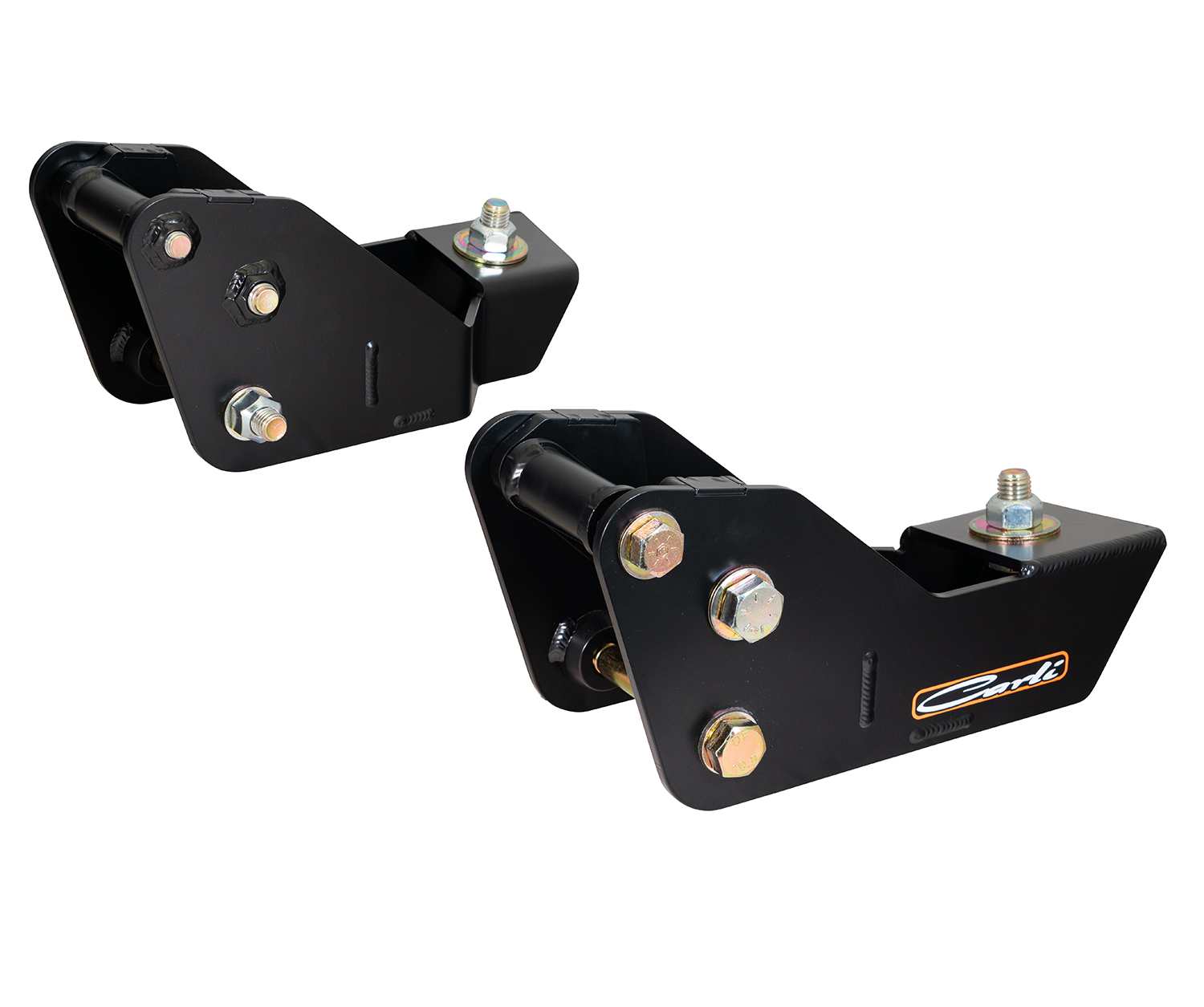

System includes front and rear shock package, linear rate coil springs, brake line kit, bump stop drops, caster correction shims, radius arm drop brackets, and adjustable track bar.
Increases wheel travel to 9" front and 13" rear.
Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
Requires but does not include sway bar option.
Carli Pintop Leveling System, Base, 3.5” Lift, 2023+ Ford F250/350, Diesel
Parts Included: AS-FPT25SPKG-LVL-05; CS-FATB-17; CS-FBDF-25-17; CS-FCASTERSHIM-45; CS-FLC-05; CS-FORDBBL-LVL-17-F; CS-FRM-25; CS-SRM-25; CS-FARA-LVL-2325
System includes front and rear shock package, linear rate coil springs, brake line kit, bump stop drops, caster correction shims, radius arm drop brackets, and adjustable track bar.
Increases wheel travel to 9" front and 13" rear.
Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
Requires but does not include sway bar option.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Coils Quantity Front: 2
Maximum Lift: 3.5
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel

Detailed Fitment Results
Year Make Model Drive Type 2023 Ford F-250 Super Duty 4WD 2023 Ford F-350 Super Duty 4WD 2024 Ford F-250 Super Duty 4WD 2024 Ford F-350 Super Duty 4WD 2025 Ford F-250 Super Duty 4WD 2025 Ford F-350 Super Duty 4WD 2026 Ford F-250 Super Duty 4WD 2026 Ford F-350 Super Duty 4WD
