Ford (4WD) Suspension Lift Kit - Carli Suspension - CS-F45-PF-17

Suspension Lift Kit
CS-F45-PF-17
Carli Pathfinder 4.5"/5.5" Lift System, 17-22 Ford F250/350, DIESEL
The Carli Pathfinder system is the true do-all Suspension setup. Featuring Carli-Spec 2.5" shocks tuned for optimal on road ride, improved offroad performance, stability when towing, durability, appearance, and easy on the wallet
2.5" Pathfinder shocks provide the best blend of comfort, control, and cooling capability for a great all-around shock.
Shocks are finished in a durable gray hardcoat for resistance to corrosion and great appearance.

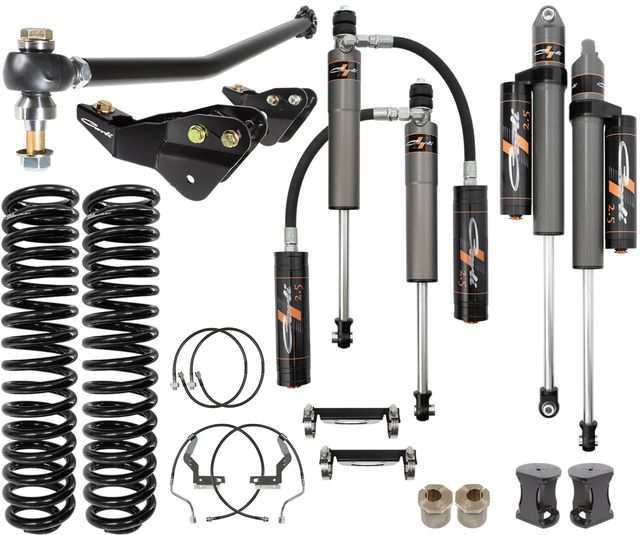

System includes Carli soft-ride coil springs, adjustable track bar, Pathfinder 2.5" shock package, caster shims, front bump drops, radius arm drop brackets and brake line kit.
Further improve performance by adding fabricated radius arms, steering stabilizer, leaf springs or add-a-pack, or leaf spring shackles.
Shocks are tuned for optimized ride quality when paired with Carli Full Progressive spring pack, but will also perform well with OEM rear leafs.
This system lifts the FRONT ONLY, no rear lift is provided in this base kit.
Sway Bar option is REQUIRED with this system
Parts Included: AS-F45SPKG-CS25RR-A; CS-FMRC-05; CS-FCASTERSHIM-45; CS-FORDBBL-45-17; CS-FATB-17; CS-FRM-CS25; CS-FBDF-45-17; CS-FRAD-17
2.5" Pathfinder shocks provide the best blend of comfort, control, and cooling capability for a great all-around shock.
Shocks are finished in a durable gray hardcoat for resistance to corrosion and great appearance.
System includes Carli soft-ride coil springs, adjustable track bar, Pathfinder 2.5" shock package, caster shims, front bump drops, radius arm drop brackets and brake line kit.
Further improve performance by adding fabricated radius arms, steering stabilizer, leaf springs or add-a-pack, or leaf spring shackles.
Shocks are tuned for optimized ride quality when paired with Carli Full Progressive spring pack, but will also perform well with OEM rear leafs.
This system lifts the FRONT ONLY, no rear lift is provided in this base kit.
Sway Bar option is REQUIRED with this system
Bushings Included: Yes
Coil Spring Color: Black
Coils Quantity Front: 2
Front Spring Rate Type: Linear
Grade Type: Performance
Mounting Hardware Included: Yes
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel

Detailed Fitment Results
Year Make Model Drive Type 2017 Ford F-250 Super Duty 4WD 2017 Ford F-350 Super Duty 4WD 2018 Ford F-250 Super Duty 4WD 2018 Ford F-350 Super Duty 4WD 2019 Ford F-250 Super Duty 4WD 2019 Ford F-350 Super Duty 4WD 2020 Ford F-250 Super Duty 4WD 2020 Ford F-350 Super Duty 4WD 2021 Ford F-250 Super Duty 4WD 2021 Ford F-350 Super Duty 4WD 2022 Ford F-250 Super Duty 4WD 2022 Ford F-350 Super Duty 4WD
