Dodge (4WD) Radius Arm Kit - Carli Suspension - CS-DRA6-10-S

Radius Arm Kit
CS-DRA6-10-S

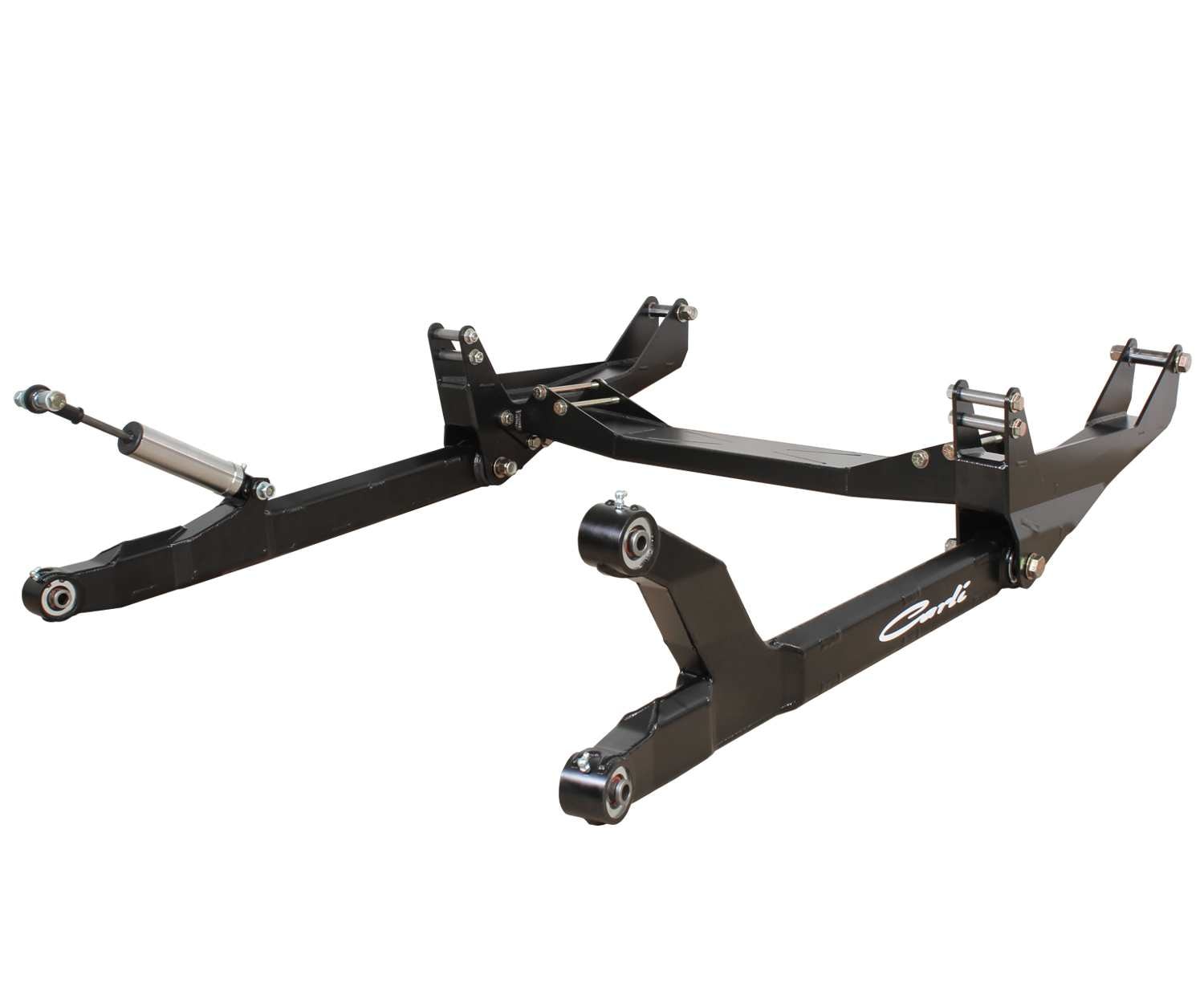

Carli Radius Arm System
Take your trucks performance to the next level with the Fabricated Radius Arm System. Designed around the Carli 6" Systems, this kit provides huge gains in articulation and control.
Carli 6″ lift radius arms were engineered for exact geometry. The result is maximum strength 3/16″ construction with full-length 1/4″ internal gussets, zero-bind axle articulation thanks to the axle control shock, and maximum wheel travel given their length. The design is a 3 link with a custom axle control shock on the driver’s side arm. A custom built and tuned stainless plunger shock controls low-speed axle articulation movement maintaining precise suspension geometry offering the longest service life and most articulation of any long-arm conversion.
Features 2 piece crossmember for ease of installation.
3/16" internal construction with 1/4" intrenal gusseting for maximum strength and durability.
Designed to fit 2010-2013 Ram 2500/3500s equipped with 6" lift systems.
Spherical bearings are greasable and servicable for ease of maintenance.
10-12 RAM 2500/3500 4X4 RADIUS ARM SYSTEM and X-MEMBER - 6" LIFT
Parts Included: CS-DCM6-03-S; CS-DRA6-DROP-03; CS-DRAPKG-10
Features 2 piece crossmember for ease of installation.
3/16" internal construction with 1/4" intrenal gusseting for maximum strength and durability.
Designed to fit 2010-2013 Ram 2500/3500s equipped with 6" lift systems.
Spherical bearings are greasable and servicable for ease of maintenance.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Detailed Fitment Results
Year Make Model Drive Type 2010 Dodge Ram 2500 4WD 2010 Dodge Ram 3500 4WD 2011 Dodge Ram 2500 4WD 2011 Dodge Ram 3500 4WD 2012 Dodge Ram 2500 4WD 2012 Dodge Ram 3500 4WD 2013 Dodge Ram 2500 4WD
