Dodge (4WD) Suspension Ball Joint - Carli Suspension - CS-DBJP-03

Ball joint
CS-DBJP-03
Carli Extreme-Duty Ball Joint Package, 2003-2013 Ram 2500/3500
RAM EXTREME DUTY BALL JOINT PACKAGE RAM: 2003-13: 2500 4X4, and 2003-12: 3500 4X4
Carli Extreme-Duty Ball Joints are designed to be superior to stock at every turn. Materials, process, and exacting build tolerances play a critical role in the impressive durability and performance of Carli Extreme-Duty Ball Joints.
Ball joints are made up of a lower ball joint and upper floating king-pin. The upper ball joint is designed as a pivot point determining the axis on which the knuckle will move and thus, only sees a lateral load. The lower ball joint tracks the knuckle on an imperfect axis, the spherical lower is required to allow the knuckle to move freely with only a slight vertical travel through its steering cycle. Carli Extreme-Duty Upper Ball Joints have a pin and housing but the “hat” of the pin contacts the housing. This adds a second wear surface to further distribute the load applied laterally to the ball joint while providing the same failsafe as a factory ball joint ensuring the pin cannot be pulled through the bottom of the ball joint housing. Further, there is no sleeve isolating the wear surfaces, eliminating the point of failure. A Viton Seal at the bottom of the housing prevents the environment elements from entering the ball joint. The lower joints have no liners of any kind. At the top, a bronze wear surface preloaded by a disc spring, safety washer and snap ring ensures the ball joints wear surfaces are always held tightly together for superior performance. Materials and process play an important role in the impressive durability and performance of Carli Extreme-Duty Ball Joints. It starts with masking. All surfaces but the wear surface are masked with a copper plating. Once plated, the ball joints head to carburizing. The carburizing creates an extremely hard surface with a case-hardness (penetrating depth) of 20-25 thousandths. When the ball joint has completed the carburizing/heat treatment, it’s stripped of the copper masking, leaving the entire joint heat treated and the wear surfaces incredibly hard. The entire joint is then covered with a corrosion resistant gray coating for protection from the elements.
LIFETIME WARRANTY: Carli Ball Joints carry an industry leading lifetime warranty. If you ever see excessive play in these at any point throughout the lifetime of your truck, Carli will replace it free.

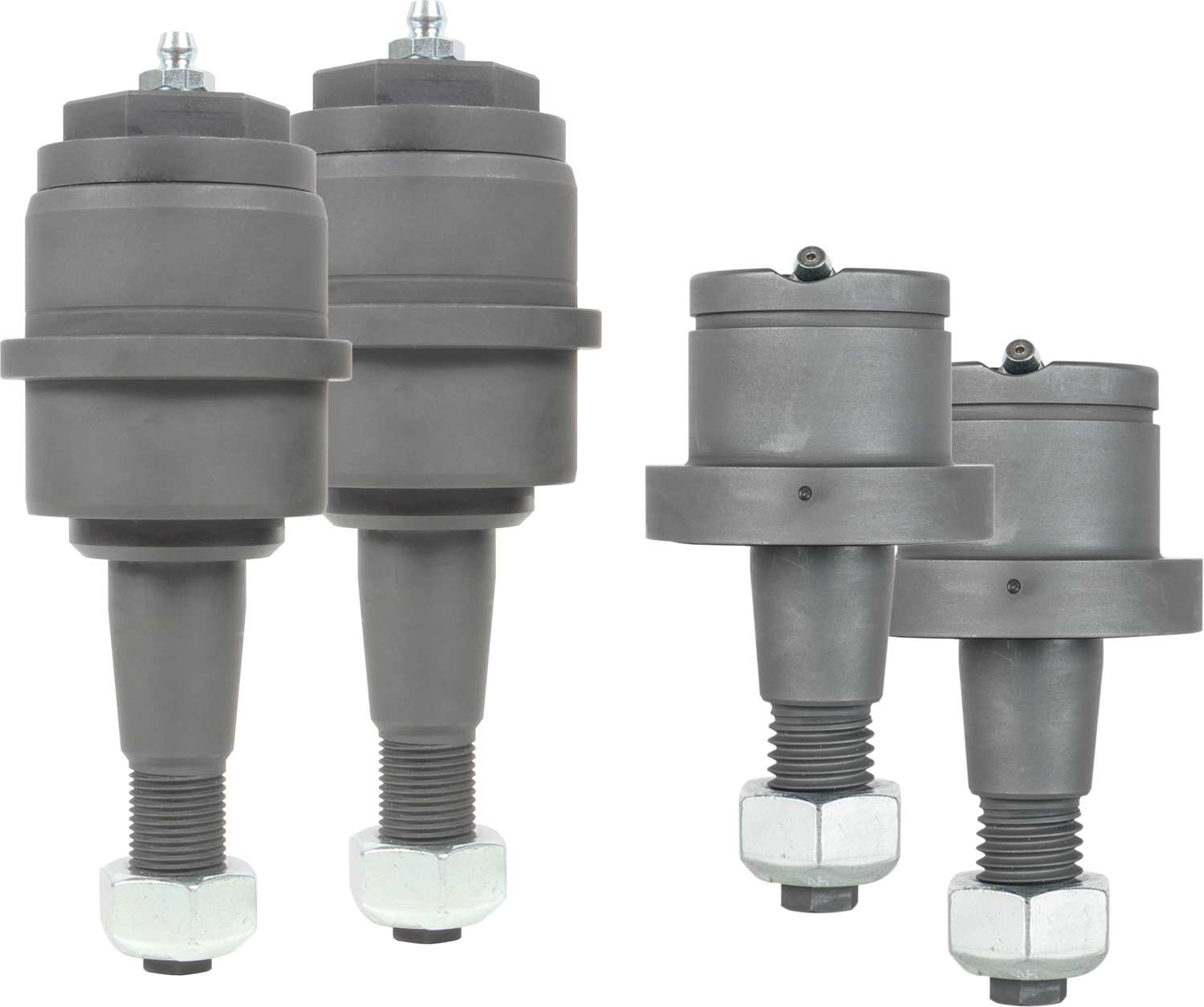

Included items: The Lifetime Ball Joint kit includes 2 upper and 2 lower ball joints, along with the necessary lower ball joint install tool and a full tube of Redline CV2 grease to be used for initial installation and maintenance.
Ease of maintenance: Carli Lifetime Balljoints feature easily accessible grease fittings. The fittings on the lower ball joint are recessed for protection and installed at an angle, making greasing an easy and simple process.
Carli Extreme-Duty Ball Joint Package, 2003-2012/13 Ram 2500/3500, CS-DBJP-03
03-12 RAM 2500/3500 4X4 EXTREME DUTY BALL JOINTS, UPPER and LOWER
Carli Extreme-Duty Ball Joint Package, 4WD 2003-2012/13 Ram 2500/3500
LIFETIME WARRANTY: Carli Ball Joints carry an industry leading lifetime warranty. If you ever see excessive play in these at any point throughout the lifetime of your truck, Carli will replace it free.
Included items: The Lifetime Ball Joint kit includes 2 upper and 2 lower ball joints, along with the necessary lower ball joint install tool and a full tube of Redline CV2 grease to be used for initial installation and maintenance.
Ease of maintenance: Carli Lifetime Balljoints feature easily accessible grease fittings. The fittings on the lower ball joint are recessed for protection and installed at an angle, making greasing an easy and simple process.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Detailed Fitment Results
Year Make Model Drive Type 2003 Dodge Ram 2500 4WD 2003 Dodge Ram 3500 4WD 2004 Dodge Ram 2500 4WD 2004 Dodge Ram 3500 4WD 2005 Dodge Ram 2500 4WD 2005 Dodge Ram 3500 4WD 2006 Dodge Ram 2500 4WD 2006 Dodge Ram 3500 4WD 2007 Dodge Ram 2500 4WD 2007 Dodge Ram 3500 4WD 2008 Dodge Ram 2500 4WD 2008 Dodge Ram 3500 4WD 2009 Dodge Ram 2500 4WD 2009 Dodge Ram 3500 4WD 2010 Dodge Ram 2500 4WD 2010 Dodge Ram 3500 4WD 2011 Dodge Ram 2500 4WD 2011 Dodge Ram 3500 4WD 2012 Dodge Ram 2500 4WD 2012 Dodge Ram 3500 4WD 2013 Dodge Ram 2500 4WD
