Ram (4WD) Suspension Track Bar - Carli Suspension - CS-DATB-1419

Adjustable Track Bar
CS-DATB-1419
steering rod, stabilizer bar, Dodge Ram
Carli Adjustable Track Bar
14-23 RAM 2500/3500 ADJUSTABLE TRACK BAR 0-3" LIFT
Tailored for 2014+ Ram 2500/3500 4x4 with 0-3" of lift. Designed for maximum suspension travel with minimal deflection and no bending. Featuring Vibration-Damping CUB Joint.
The track bar plays a crucial role in the front end of heavy-duty straight axle trucks, serving as both a suspension and steering component. Any deflection or wear in the track bar and its bushings immediately impacts the driver's experience, leading to issues like excessive steering input, floating front end, wandering, and the dreaded Death Wobble. Lifting the truck makes matters worse by putting additional load and strain on the bar by pulling the axle off-center and changing the undercarriage geometry. Carli's Adjustable Track Bar is engineered to address these problems effectively. It deflects less than the stock bar, ensuring improved handling and damping vibrations without compromising performance and allows the axle to be re-centered restoring proper geometry. Unlike the factory bar, Carli's track bar offers an extended service life, being rebuildable rather than replaceable.
Vibration Dampening CUB Joint: Captured Uniball Design allows bind-free cycling while reducing vibrations with the use of double vulcanized uniball bushings for the frame side mount.
The Carli "Jammit Nut" design ensures no movement of the heim joint in the tube with the use of a tapered lock nut and tube. Boasting 100% more surface area than standard Jam nut, you can be sure the FK heim joint will not budge.

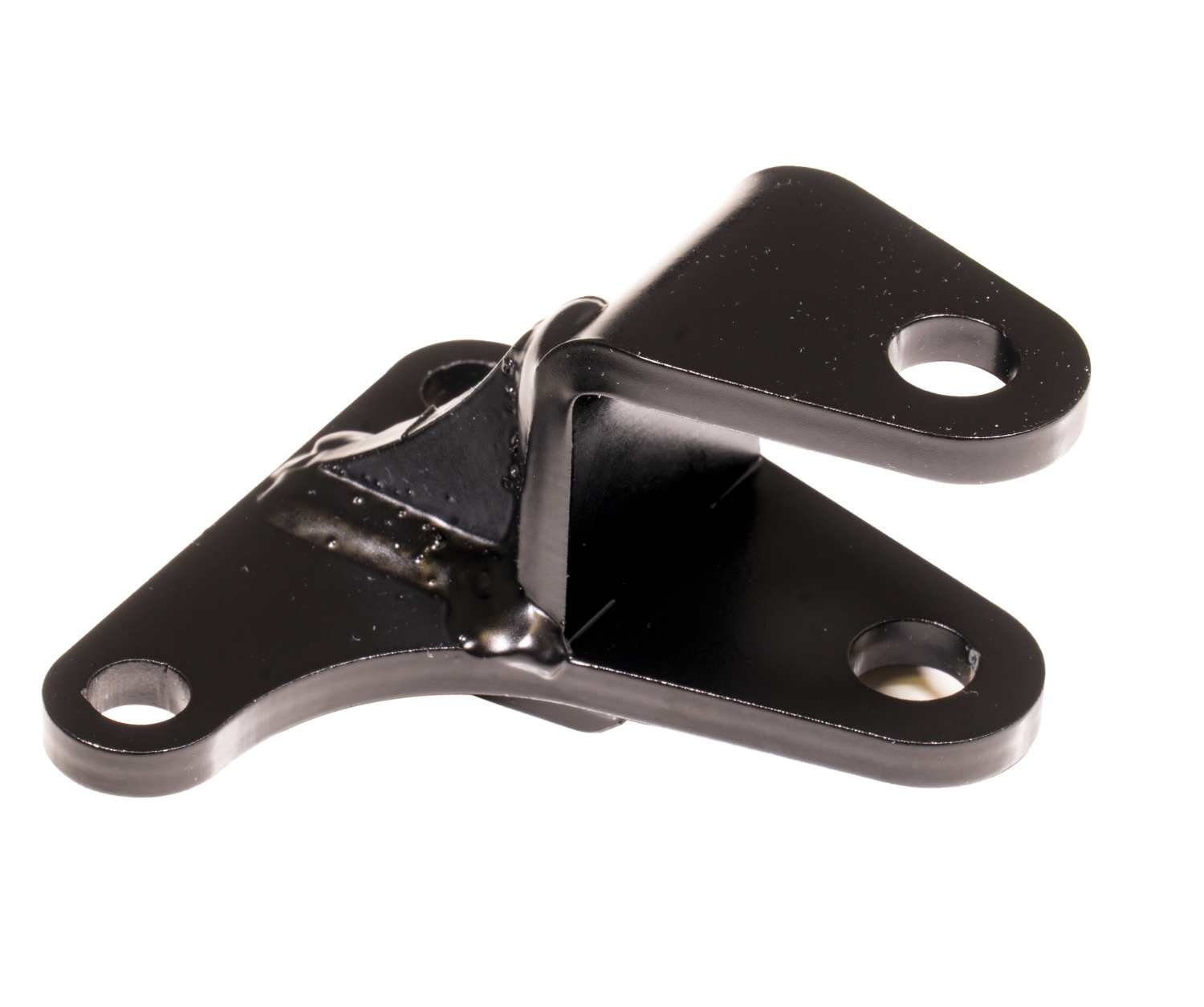

Includes Stabilizer Relocation Bracket to ensure proper clearance
3/8" wall DOM construction with FK bearing and heim joine ensures MAXIMUM strength and durability with cleaner suspension cycling and less vibratino.
Fitment: The Carli Adjustable track bar is designed for Ram 2500/3500 trucks utilizing Carli 0-3" lifts but can also be used as a factory replacement on stock height trucks or an upgrade to an exisiting lift.
Carli Adjustable Track Bar, 0-3” Lift, 2014-22 Ram 2500/3500, 4x4, CS-DATB-1419
Carli Adjustable Track Bar, 0-3” Lift, 2014+ Ram 2500/3500, 4x4
Vibration Dampening CUB Joint: Captured Uniball Design allows bind-free cycling while reducing vibrations with the use of double vulcanized uniball bushings for the frame side mount.
The Carli "Jammit Nut" design ensures no movement of the heim joint in the tube with the use of a tapered lock nut and tube. Boasting 100% more surface area than standard Jam nut, you can be sure the FK heim joint will not budge.
Includes Stabilizer Relocation Bracket to ensure proper clearance
3/8" wall DOM construction with FK bearing and heim joine ensures MAXIMUM strength and durability with cleaner suspension cycling and less vibratino.
Fitment: The Carli Adjustable track bar is designed for Ram 2500/3500 trucks utilizing Carli 0-3" lifts but can also be used as a factory replacement on stock height trucks or an upgrade to an exisiting lift.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Detailed Fitment Results
Year Make Model Drive Type Fitment Notes 2013 Ram 3500 4WD 14+ 2500, 13+ 3500 2014 Ram 2500 4WD 14+ 2500, 13+ 3500 2014 Ram 3500 4WD 14+ 2500, 13+ 3500 2015 Ram 2500 4WD 14+ 2500, 13+ 3500 2015 Ram 3500 4WD 14+ 2500, 13+ 3500 2016 Ram 2500 4WD 14+ 2500, 13+ 3500 2016 Ram 3500 4WD 14+ 2500, 13+ 3500 2017 Ram 2500 4WD 14+ 2500, 13+ 3500 2017 Ram 3500 4WD 14+ 2500, 13+ 3500 2018 Ram 2500 4WD 14+ 2500, 13+ 3500 2018 Ram 3500 4WD 14+ 2500, 13+ 3500 2019 Ram 2500 4WD 14+ 2500, 13+ 3500 2019 Ram 3500 4WD 14+ 2500, 13+ 3500 2020 Ram 2500 4WD 14+ 2500, 13+ 3500 2020 Ram 3500 4WD 14+ 2500, 13+ 3500 2021 Ram 2500 4WD 14+ 2500, 13+ 3500 2021 Ram 3500 4WD 14+ 2500, 13+ 3500 2022 Ram 2500 4WD 14+ 2500, 13+ 3500 2022 Ram 3500 4WD 14+ 2500, 13+ 3500 2023 Ram 2500 4WD 14+ 2500, 13+ 3500 2023 Ram 3500 4WD 14+ 2500, 13+ 3500 2024 Ram 2500 4WD 14+ 2500, 13+ 3500 2024 Ram 3500 4WD 14+ 2500, 13+ 3500 2025 Ram 2500 4WD 14+ 2500, 13+ 3500 2025 Ram 3500 4WD 14+ 2500, 13+ 3500 2026 Ram 2500 4WD 14+ 2500, 13+ 3500 2026 Ram 3500 4WD 14+ 2500, 13+ 3500
