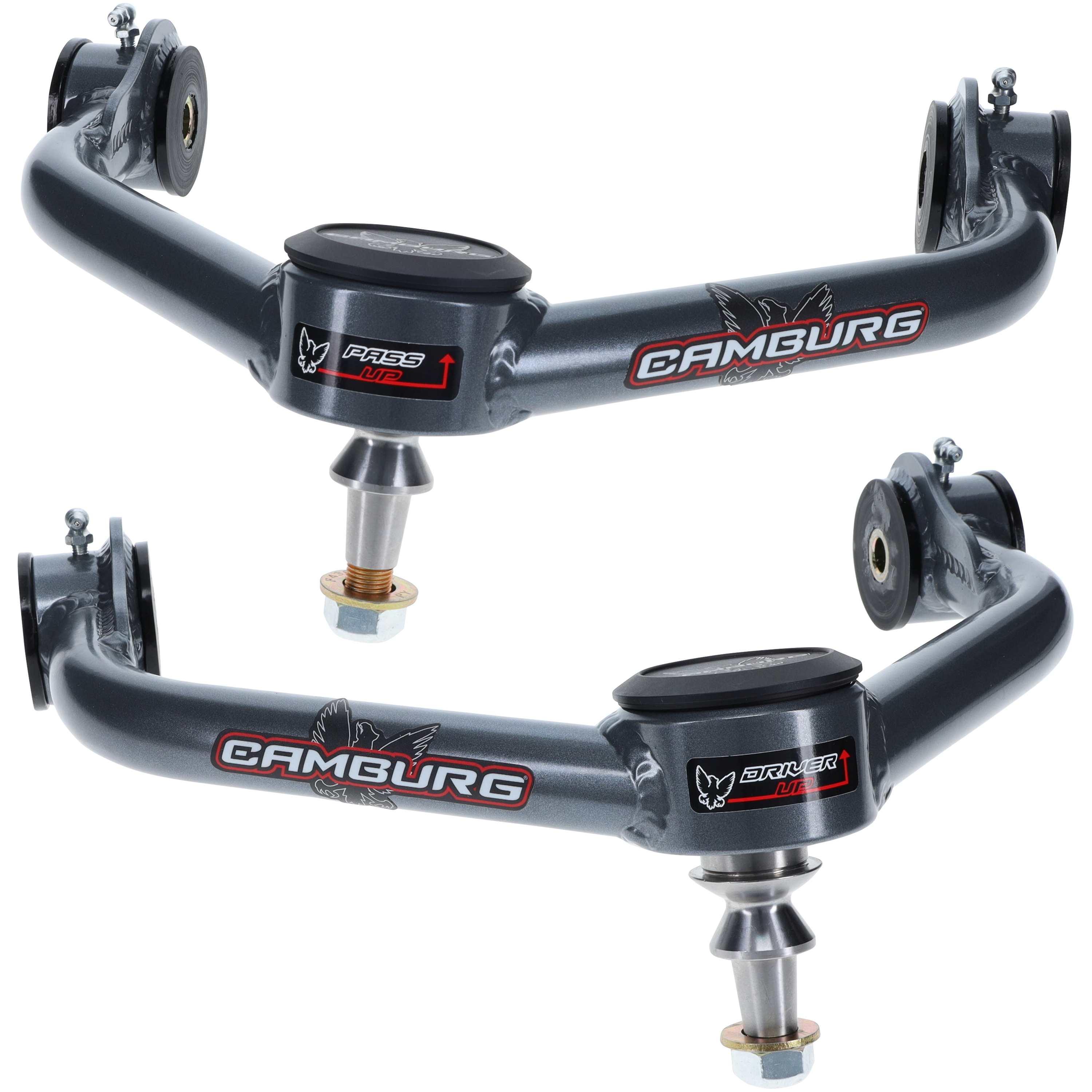

1.25" Performance Uniball Upper Arms (w/ covers) - Camburg - CAM-810001

For 4th generation DS model trucks '09-18 and '19-21"Classic"When lifting your truck the stock upper arms become the limiting factor and hold back your suspensions performance. Our Camburg upper arms address these issues and more. Replacing the stock ball-joint with a larger 1.25 uni-ball bearing we’re able to gain wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We build more caster and change the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling. Using the latest CAD/CAM engineering software we design these arms to the strictest standards using our FARO laser scan arm to model the OEM parts and frames. Manufactured in-house we have the tubes CNC laser cut and bent then are MIG welded in precision fixtures before sending out to be sandblasted and powder-coated. Our in-house CNC machine shop makes all the machined parts including the uniball mis-alignment spacers from heat-treated stainless steel. We pride ourselves in producing the best parts available under our own roof and control. Increases usable wheel travel Corrects camber and caster Eliminates weak factory ball-joints 4130 chromoly construction Laser cut and CNC bent tubes MIG welded CAD/CAM engineered Polyurethane frame pivot bushings with grease-able zerk fittings FK 1.25" PTFE-lined uniballs pre-installed Steel gray powder-coating All necessary hardware included and ready to install Made in the USA Designed for 1-3" of lift For models without air ride suspension For models without air ride suspension For 4th generation DS model trucks '09-18 and '19-21"Classic". Eliminates weak factory ball-joints; Increases usable wheel travel; Corrects camber and caster
Pre-Assembled: Yes
Reinforced: No
Pre-Greased: No
Grease Fitting Included: Yes
Suspension Grade Type: Performance
Bushings Included: Yes
Ball Joint Included: Yes
Control Arm Construction: Tubular
Control Arm Material: 4130 Chromoly
Grade Type: Performance
Adjustable: Yes
Control Arm Color: Gray
Bushing Material: Polyurethane
Attachments Included: No
Ball Joint Cover Included: No
Ball Joint Type: Uniball
Hardware Included: Yes
Prop 65 Y/N: No
Set: Yes
Suspension Type: Performance
Title: Camburg Engineering 4WD 2009-2021 RAM 1500 Control Arm Kit CAM-810001

Detailed Fitment Results
Year Make Model Drive Type Name 2009 Dodge Ram 1500 4WD 2010 Dodge Ram 1500 4WD 2011 Ram 1500 4WD 2012 Ram 1500 4WD 2013 Ram 1500 4WD 2014 Ram 1500 4WD 2015 Ram 1500 4WD 2016 Ram 1500 4WD 2017 Ram 1500 4WD 2018 Ram 1500 4WD 2019 Ram 1500 Classic 4WD 2020 Ram 1500 Classic 4WD 2021 Ram 1500 Classic 4WD
