Trail Series Performance Lift Kit w/ FOX 2.00" - Camburg - CAM-410011-U

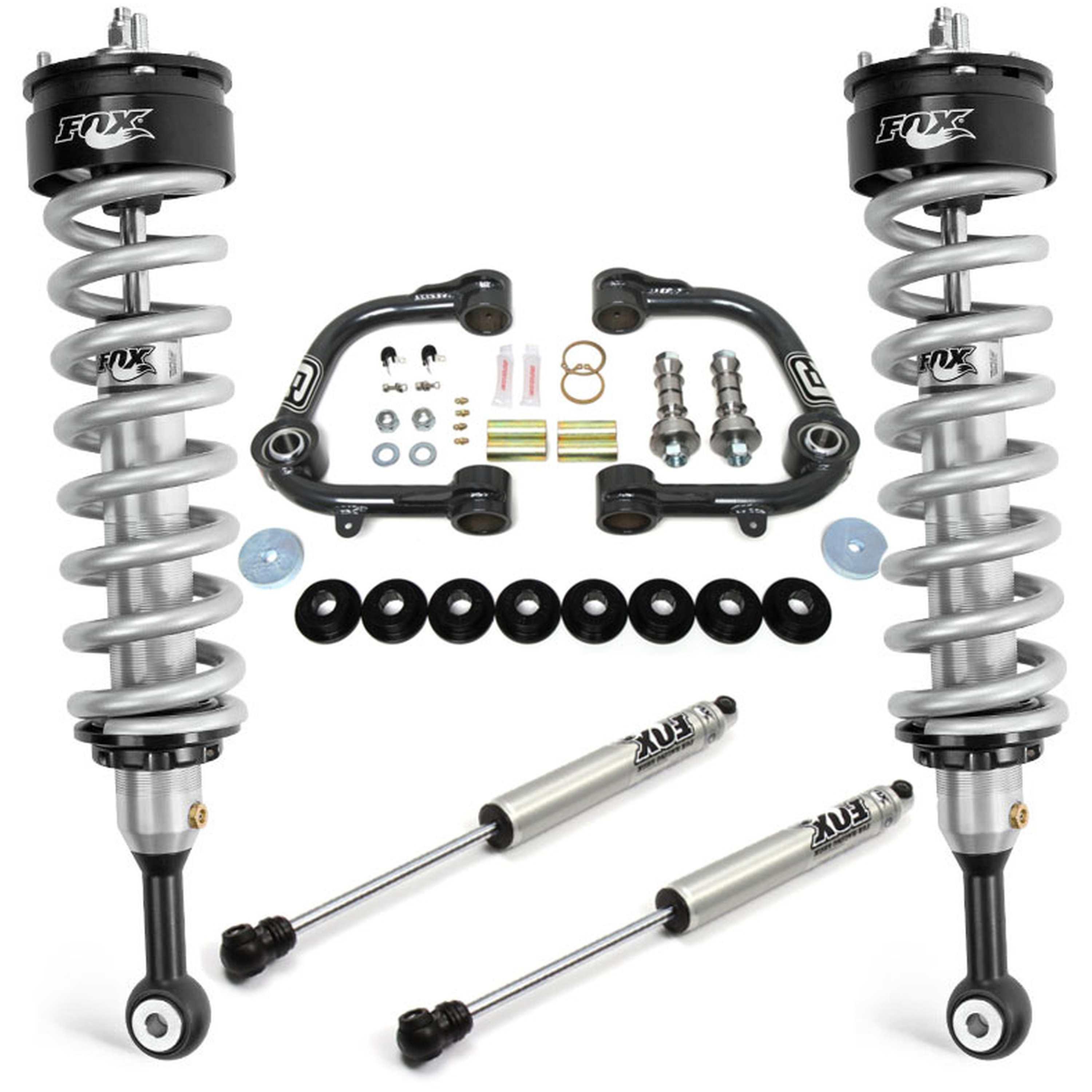

Our Camburg FOX 2.0 Trail Series kit is a great all around suspension system for your Nissan Titan utilizing FOX’s 2.0 series of shocks. FOX 2.0 Performance Series IFP Coilovers are valved specifically for your application we are able to gain 0-2 inches of lift and increase wheel travel as well. These Factory Series shocks feature a smooth-bore clear coated zinc plated honed seamless alloy body black anodized 6061-T6 billet aluminum components a 5/8" hard chrome plated heat treated alloy steel shaft and an internal reservoir design to separate shock oil from the high-pressure nitrogen. FOX direct replacement shocks deliver race-winning performance in a simple direct replacement bolt on shock. Each application has been rigorously tested by FOX engineers to maximize suspension travel and performance on and off the road. After lifting your truck the stock upper arms become the limiting factor and hold back your suspensions performance. Our uniball upper arms address these issues and more. Replacing the stock ball-joint with a uni-ball bearing we can increase wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We also engineered the arms with more caster and changed the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling. In the rear we go with a pair of FOX’s 2.0 Performance Series shocks. These shocks have a larger aluminum shock body which holds more oil for better shock performance offroad and have a firmer ride. 0-2" lift (front) Improved ride and handling Easy bolt-on installation Made in the USA. Corrected suspension geometry; Improved ride and handling; Increased wheel travel
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Silver
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Silver
Maximum Lift: 2 IN
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 0
Strut(s) Included: Yes
Bushing Color: Black
Coil Spring Material: Spring Steel
Control Arm Color: Black
Control Arm Type: Tubular
Dust Cover Caps Included: No
Front Shock Type: 2.0 Performance Series IFP Coilovers
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Lift: 2 IN
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: 2.0
Rear Shocks Included: Yes
Rear Springs Included: No
Shock Brand: FOX
Spring Load: N/A
Spring Rate: N/A
Title: Camburg Engineering 4WD 2004-2015 Nissan TITAN FOX 2.0 Performance Lift Kit CAM-410011-U

Detailed Fitment Results
Year Make Model Drive Type Name 2004 Nissan TITAN 4WD 2005 Nissan TITAN 4WD 2006 Nissan TITAN 4WD 2007 Nissan TITAN 4WD 2008 Nissan TITAN 4WD 2009 Nissan TITAN 4WD 2010 Nissan TITAN 4WD 2011 Nissan TITAN 4WD 2012 Nissan TITAN 4WD 2013 Nissan TITAN 4WD 2014 Nissan TITAN 4WD 2015 Nissan TITAN 4WD
