Long Travel Spring-Under Kit - Camburg - CAM-320008

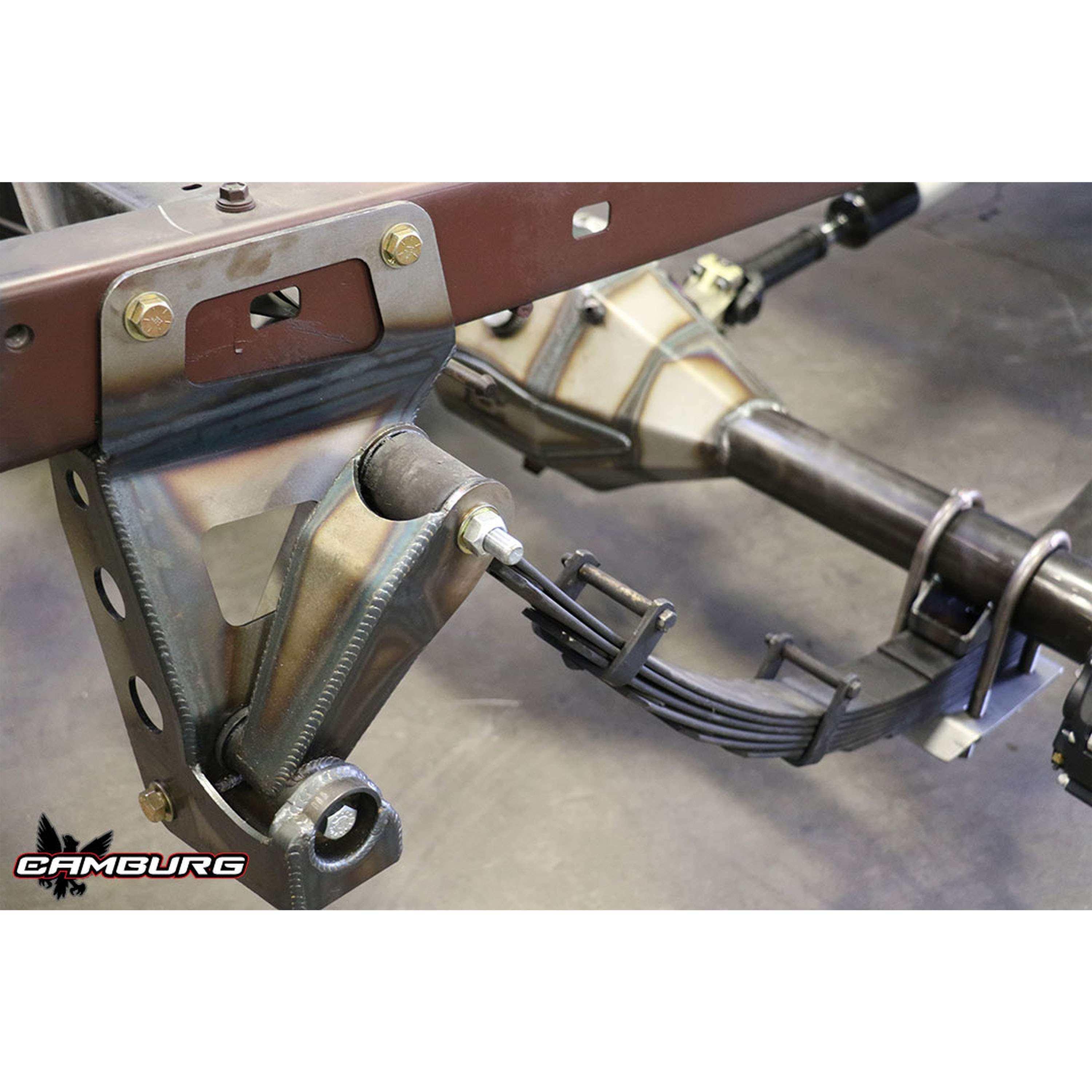

When we designed our spring-under kit for the 2005-2023 Toyota Tacoma's we wanted to take the guess work out and make a kit that's easier to install. We did this by designing the front and rear spring hangers to bolt to the frame using the existing holes used by the factory mounts that are riveted on. Our mounts are considerably stronger than weld-on versions and we incorporated tabbing on the rear mounts for a x-member or fuel cell cradle for even more strength. We spent a lot of time with Deaver Spring designing leaf springs for optimum wheel travel and performance. We offer two different springs based on how you're building your truck. We offer a "PreRunner" and a "race" spring setup based on the load capacity needed. One spring doesn't work for everyone. This race and BITD 7100 class championship winning kit has been used over the years on serious PreRunners and race trucks in the deserts of California and as far as the Dakar rally. A limited travel variation of this kit was also used on the 2017 Tacoma we raced in the 2017 Mint 400 in the 7300 class. This suspension kit is for the serious builder/enthusiast and is intended to be used with a bed cage and 2.5-3.0 x 16-18" travel shocks through the bed along with FOX or King bump stops. Their is quite a bit of work involved with installing these parts and is not an entry level install. Championship winning performance; Increases wheel travel; Race winning design
Modification Required: No
Axle Spring Perches Included: Yes
U-Bolt Spring Plates Included: Yes
Grade Type: Performance
Hangers Included: Yes
Hardware Included: Yes
L/T Shackles Included: Yes
Leaf Spring Length: 62 IN
Prop 65 Y/N: No
Shackles Included: Yes
Title: Camburg Engineering 2005-2023 Toyota Tacoma Excludes X-Runner H70 / E30 PreRunner Setup Leaf Spring Kit CAM-320008
U-Bolt Spring Plates: Yes

Detailed Fitment Results
Year Make Model Submodel Body Type Name Drive Type Name 2005 Toyota Tacoma Pre Runner 4WD 2006 Toyota Tacoma Base Prerunner / Pre Runner / SR5 Prerunner / TRD Sport Prerunner 4WD / 2007 Toyota Tacoma Pre Runner / SR5 Prerunner / TRD Sport Prerunner 4WD / 2008 Toyota Tacoma Pre Runner / SR5 Prerunner / TRD Sport Prerunner 4WD / 2009 Toyota Tacoma Pre Runner / SR5 Prerunner / TRD Sport Prerunner 4WD / 2010 Toyota Tacoma Pre Runner 4WD 2011 Toyota Tacoma Pre Runner 4WD 2012 Toyota Tacoma Pre Runner 4WD 2013 Toyota Tacoma Pre Runner 4WD 2014 Toyota Tacoma Pre Runner 4WD 2015 Toyota Tacoma Pre Runner 4WD 2016 Toyota Tacoma 4WD 2017 Toyota Tacoma 4WD 2018 Toyota Tacoma 4WD 2019 Toyota Tacoma 4WD 2020 Toyota Tacoma 4WD 2021 Toyota Tacoma 4WD 2022 Toyota Tacoma 4WD 2023 Toyota Tacoma 4WD
