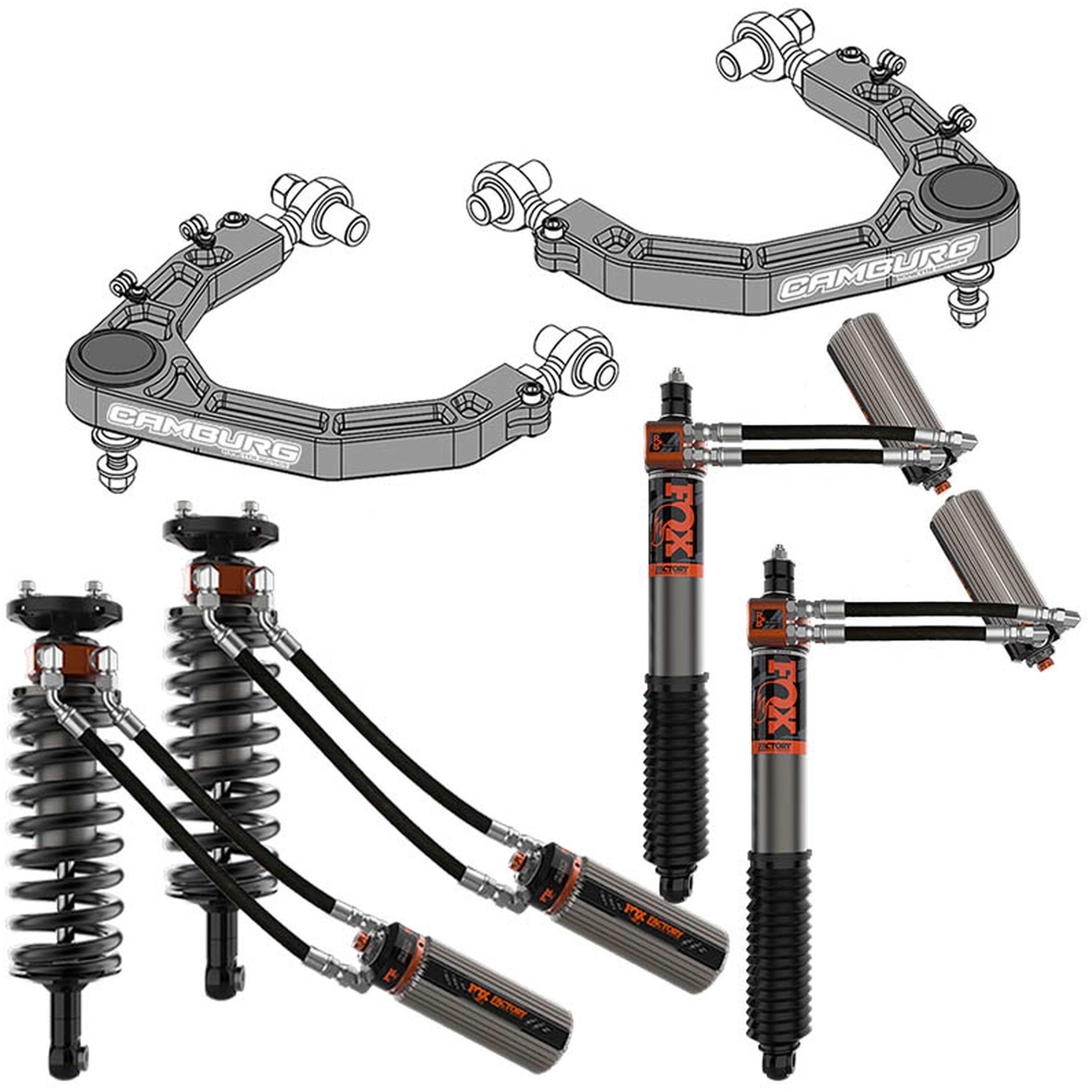

KINETIK Performance Lift Kit w/ FOX 3.00" - Camburg - CAM-310239-K

Our FOX 3.0 DSC Performance kit for the ’22-24 Tundra takes our FOX 2.5 kit to the next level. We utilize FOX’s 3.0 Factory Series internal bypass front coilovers with DSC compression adjusters. This uses FOX’s patented internal bypass design which offers damping progression as they are position sensitive. You have considerably more bottoming control with a plush ride. They have a substantial increased oil capacity due to their size and have a lot more control and damping. The DSC compression adjuster allows you to tune the shock softer and firmer depending on what you’re looking for and how you’re using the truck. This combination of parts not only improves the ride and handling on-road but more so off-road. With our upper control arms these coilovers increase wheel travel and articulation. These also have FOX’s finned aluminum reservoirs with dual recirculating reservoir lines that aid in lowering shock temps under hard use. After lifting your truck the stock upper arms become the limiting factor and hold back your suspensions performance. Our upper arms address these issues and more. You can choose between our tubular and billet uniball arms depending on your budget and type of use. We’re able to increase wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We also engineered the arms with more caster and changed the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling both on and off-road. For more info on all our arms check out their individual product pages to help make your choice. In the rear we go with a pair of FOX’s 3.0 Factory Series internal bypass shocks with DSC compression adjusters. This uses FOX’s patented internal bypass design which offers damping progression as they are position sensitive. You have considerably more bottoming control with a plush ride. Corrected suspension geometry; Improved ride and handling; Increased wheel travel
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Silver
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Silver
Maximum Lift: 3 IN
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 0
Strut(s) Included: Yes
Bushing Color: Unfinished
Coil Spring Material: Spring Steel
Control Arm Color: Gray
Control Arm Type: CNC Machined
Front Shock Type: 2.5 Performance Elite DSC Series
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Lift: 3 IN
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: 2.5 Performance Elite DSC Series
Rear Shocks Included: Yes
Rear Springs Included: No
Shock Brand: FOX
Shock Type: 2.5 Performance Elite DSC Series
Spring Load: N/A
Spring Rate: N/A
Title: Camburg Engineering 2WD/4WD 2022-2024 Toyota Tundra FOX 3.0 DSC KINETIK Series Lift Kit CAM-310239-K

Detailed Fitment Results
Year Make Model 2022 Toyota Tundra 2023 Toyota Tundra 2024 Toyota Tundra 2025 Toyota Tundra
