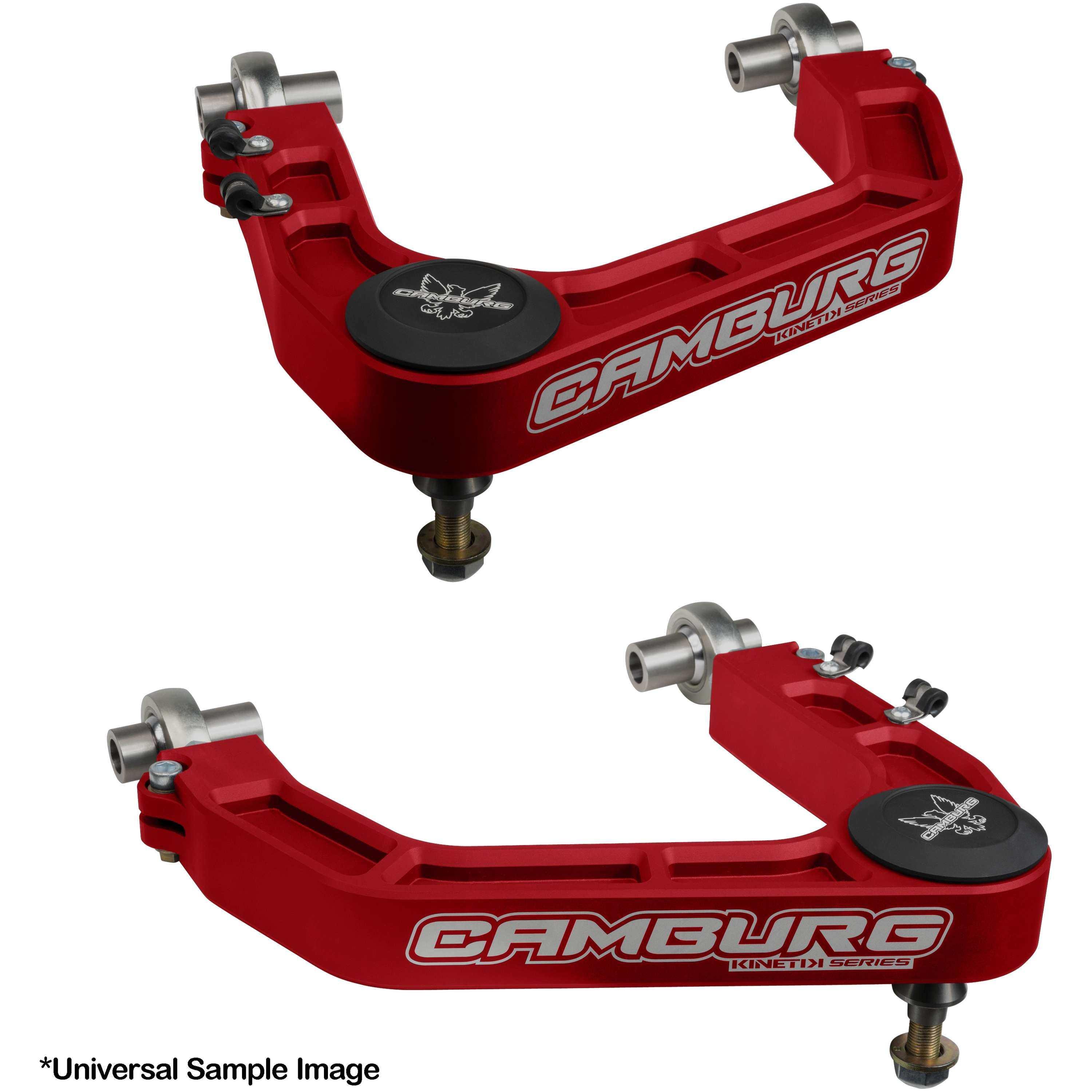

KINETIK V2 Performance Billet Uniball Upper Arms (RED) - Camburg - CAM-310193-RED

Our arms are meticulously designed and refined meeting high standards. They are CNC machined from aerospace quality 6061 billet aluminum bead blasted anodized red and laser etched with our logo. We use a larger FK 1.25" uniball with a PTFE liner for increased strength and mis-alignment allowing for maximum wheel travel. Made in the USA our arms are superior to cheaper imports. The uniball is adapted to the spindle/knuckle using model specific spacers machined from heat-treated stainless steel. No drilling or modifications are needed. The 1.25" uniball allows for a low profile press-on cap to resist the elements. We use larger and stronger FK 7/8" chromoly heim joints for additional camber and caster adjustment eliminating flexing/deflection under hard use and braking. AN/Mil-spec hardware including a single pinch bolt and secondary jam nut ensures secure heim joint usage. Our new V2 design increases usable wheel travel corrects camber and caster and eliminates weak factory ball-joints. The arms are compatible with 1-3" of lift and designed for use with King 3.0 and FOX 2.5 DSC coilovers. Eliminates weak factory ball-joints; Increases usable wheel travel; Corrects camber and caster
Pre-Assembled: Yes
Reinforced: No
Pre-Greased: No
Grease Fitting Included: No
Suspension Grade Type: Performance
Bushings Included: Yes
Ball Joint Included: Yes
Control Arm Construction: CNC Machined
Control Arm Material: 6061-T6 Billet Aluminum
Mounting Hardware Included: Yes
Grade Type: Performance
Adjustable: Yes
Control Arm Color: Red
Bushing Material: 4130 Chromoly
Attachments Included: No
Ball Joint Cover Included: Yes
Ball Joint Type: Uniball
Hardware Included: Yes
Prop 65 Y/N: No
Set: Yes
Suspension Type: Performance
Title: Camburg Engineering 2008-2021 Toyota Land Cruiser 200 Red KINETIK Series Control Arm Kit CAM-310193-RED

Detailed Fitment Results
Year Make Model 2008 Toyota Land Cruiser 2009 Toyota Land Cruiser 2010 Toyota Land Cruiser 2011 Toyota Land Cruiser 2013 Toyota Land Cruiser 2014 Toyota Land Cruiser 2015 Toyota Land Cruiser 2016 Toyota Land Cruiser 2017 Toyota Land Cruiser 2018 Toyota Land Cruiser 2019 Toyota Land Cruiser 2020 Toyota Land Cruiser 2021 Toyota Land Cruiser
