2.50" Front Slapper Bump Stop Mount Kit Only - Camburg - CAM-310181

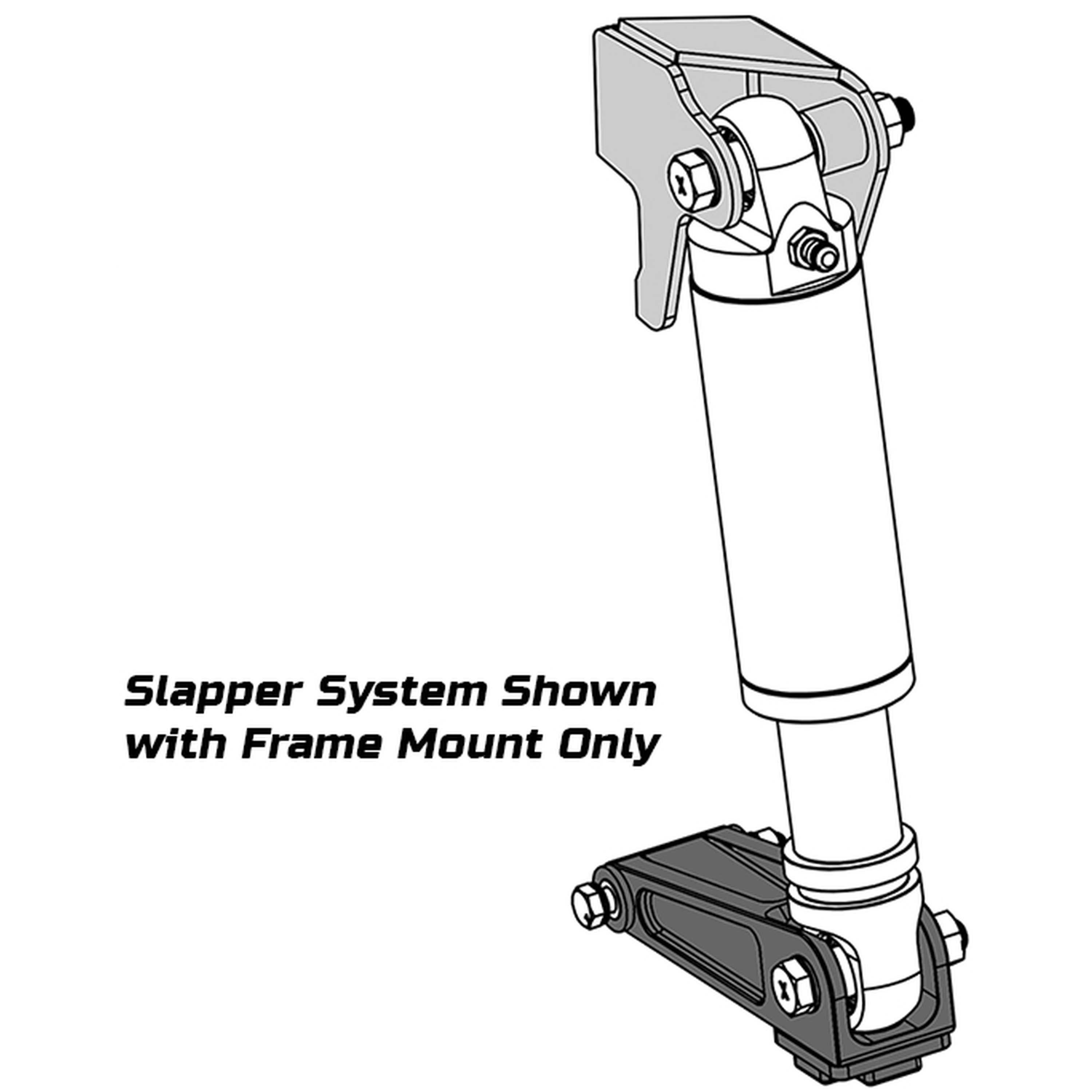

Introducing our 2.5 Slapper Bump Stop kit designed for easy installation on our NEW Trail Series long-travel kit or stock length performance lower arms. This kit enhances strength and rigidity by double shearing the upper arm frame pivots. It offers a non-UCA gusset version for simpler installations including a weld-on frame mount for the bump stop. The addition of a bump stop provides improved control and bottoming resistance resulting in a soft plush ride through small obstacles and better handling of bigger hits and g-outs. The slapper arm setup allows the air bump to strike further outboard on the lower arm making it more effective and efficient. The motion ratio geometry remains consistent throughout the bottoming out travel ensuring constant contact with the lower arm and preventing the bump stop from swiping the arm. The bump stop only engages during bottoming allowing free movement in the "ride zone" for a more active suspension. The slapper arm design also incorporates a rubber pad to reduce noise upon contact. Our kit is designed for use with custom FOX or King 2.5 bump stops which function similarly to air shocks. We have extensively tested and fine-tuned these bump stops for optimal performance with our kit. The FOX's cerakoted gray coating used in FOX's trophy truck race shocks ensures high performance and durability. We provide aircraft AN bolts for the upper and lower mounts offering maximum strength with the proper grip/shoulder length. The mounts come raw and require welding after which we recommend spraying them with black Steel-IT for added protection. Please note that this kit is specifically designed for our Trail Series L/T kit and stock length slapper compatible lower arms and is not compatible with our Race Series L/T kit. Additional Bottom Out Control; Includes Hardware; CNC laser cut
Grade Type: Performance
Bump Stops Included: No
Hardware Included: Yes
Bump Stop Size: 2.50 IN
Long Travel Only: Yes
Mounting Bracket Included: Yes
Prop 65 Y/N: No
Title: Camburg Engineering 2005-2023 Toyota Tacoma BFront Slapper Bump Stop Mount Kit Only CAM-310181
UCA Gussets: No
Universal Or Specific Fit: Specific

Detailed Fitment Results
Year Make Model 2005 Toyota Tacoma 2006 Toyota Tacoma 2007 Toyota Tacoma 2008 Toyota Tacoma 2009 Toyota Tacoma 2010 Toyota Tacoma 2011 Toyota Tacoma 2012 Toyota Tacoma 2013 Toyota Tacoma 2014 Toyota Tacoma 2015 Toyota Tacoma 2016 Toyota Tacoma 2017 Toyota Tacoma 2018 Toyota Tacoma 2019 Toyota Tacoma 2020 Toyota Tacoma 2021 Toyota Tacoma 2022 Toyota Tacoma 2023 Toyota Tacoma
