2.50" Front Slapper Bump Stop Mount Kit - Camburg - CAM-310172

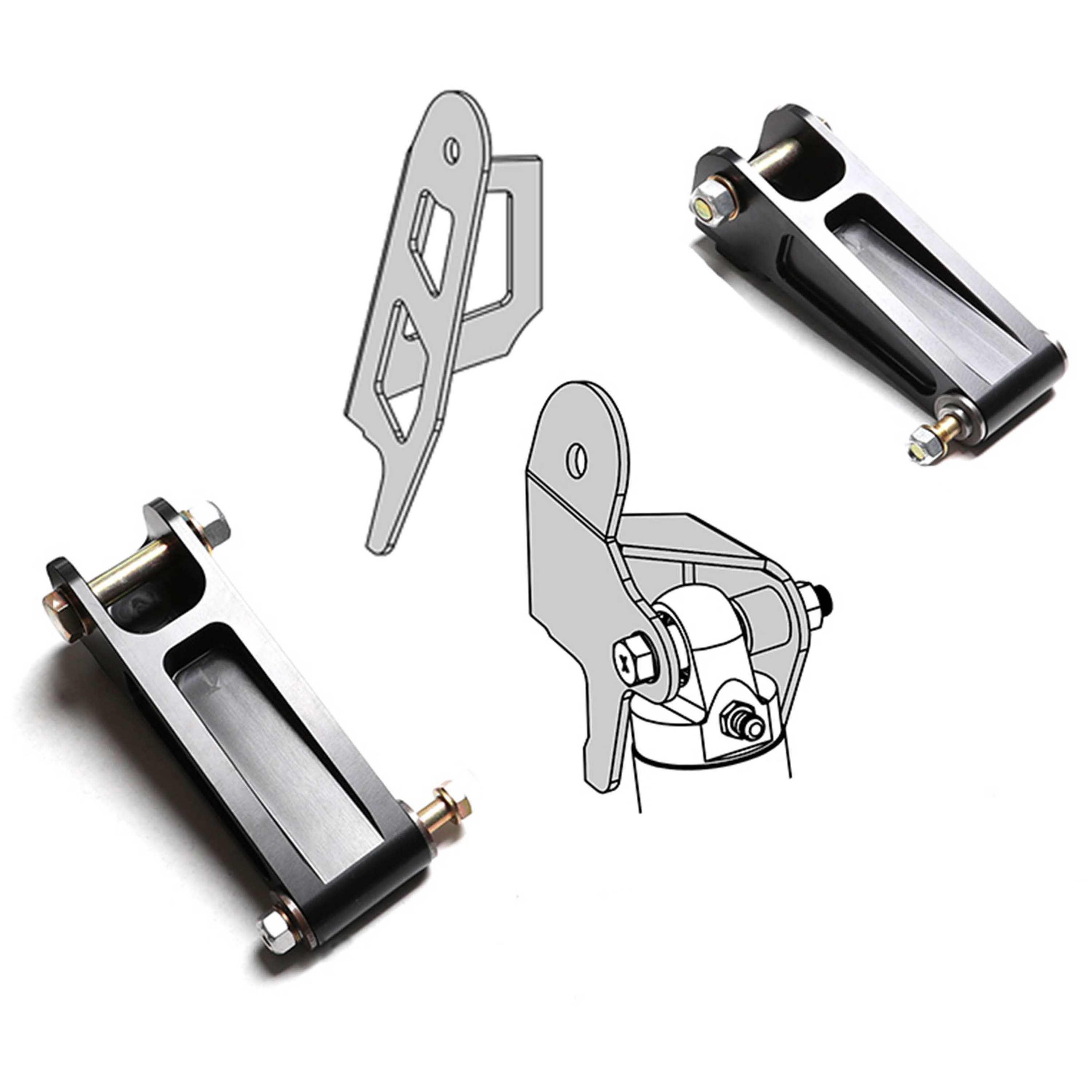

Introducing our 2.5 Slapper Bump Stop kit designed for easy installation on our NEW Trail Series long-travel kit or stock length performance lower arms. This kit enhances strength and rigidity by double shearing the upper arm frame pivots. It offers a non-UCA gusset version for simpler installations including a weld-on frame mount for the bump stop. Adding a bump stop provides increased control and bottoming resistance resulting in a soft plush ride through small obstacles and improved performance on bigger hits and g-outs. The slapper arm setup allows the air bump to strike further outboard on the lower arm making it more effective and efficient. The motion ratio geometry remains consistent throughout the bottoming out travel ensuring constant contact with the lower arm and preventing the bump stop from swiping the arm. The bump stop only engages during bottoming allowing free movement in the "ride zone" for a more active suspension. The slapper arm design incorporates a rubber pad to reduce noise upon contact. Our kit is designed for use with custom FOX or King 2.5 bump stops which function similarly to air shocks. Extensive testing has been conducted to ensure optimal performance with our kit. The FOX's cerakoted gray coating used in FOX's trophy truck race shocks provides high performance and durability. Aircraft AN bolts are supplied for the upper and lower mounts offering maximum strength. The mounts come raw and require welding with a recommendation to spray them with black Steel-IT after welding. Please note that this kit is specifically designed for our Trail Series L/T kit and stock length slapper compatible lower arms and is not compatible with our Race Series L/T kit. Additional Bottom Out Control; Includes Hardware; CNC laser cut
Grade Type: Performance
Bump Stops Included: No
Hardware Included: Yes
Bump Stop Included: No
Bump Stop Mounts Included: No
Bump Stop Size: 2.50 IN
Long Travel Only: Yes
Mounting Bracket Included: Yes
Prop 65 Y/N: No
Title: Camburg Engineering 2005-2023 Toyota Tacoma Bump Stop Mounting Kit w/ UCA Gussets Only CAM-310172
UCA Gussets: Yes
Universal Or Specific Fit: Specific

Detailed Fitment Results
Year Make Model 2005 Toyota Tacoma 2006 Toyota Tacoma 2007 Toyota Tacoma 2008 Toyota Tacoma 2009 Toyota Tacoma 2010 Toyota Tacoma 2011 Toyota Tacoma 2012 Toyota Tacoma 2013 Toyota Tacoma 2014 Toyota Tacoma 2015 Toyota Tacoma 2016 Toyota Tacoma 2017 Toyota Tacoma 2018 Toyota Tacoma 2019 Toyota Tacoma 2020 Toyota Tacoma 2021 Toyota Tacoma 2022 Toyota Tacoma 2023 Toyota Tacoma
