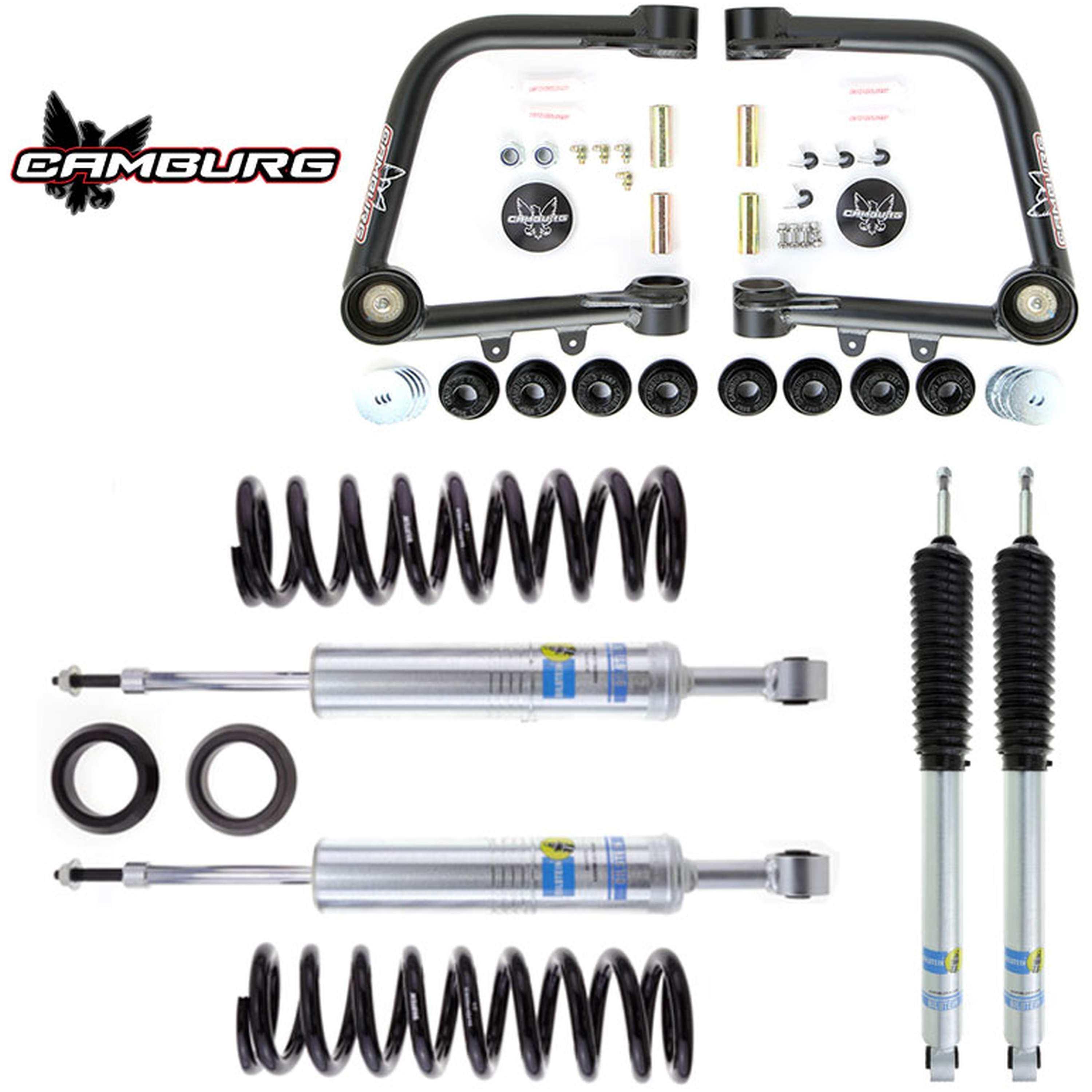

Performance Lift Kit w/ Bilstein 6112 - Camburg - CAM-310092-X

With Bilstein’s NEW 6112 line of adjustable shocks we’ve put together a great suspension kit for that customer looking to lift the front of their Tundra improve the ride quality both on and off-road all while staying within a price point that maximizes your gains. The new 6112 is on par with Toyota’s TRD Pro line of shocks that is a substantial upgrade over the standard OEM shocks. After lifting your truck the stock upper arms become the limiting factor and hold back your suspensions performance. Our upper arms address these issues and more. You can choose between our tubular and billet uniball arms and our tubular X-joint arm depending on your budget and type of use. We’re able to increase wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We also engineered the arms with more caster and changed the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling both on and off-road. For more info on all our arms check out their individual product pages to help make your choice. We combine these with Bilstein’s 5100 rear shocks that gain more wheel travel and improve the ride for everyday driving. Adjustable shocks for 1-2.75" of lift Increased wheel travel Corrected suspension geometry Improved ride on and off-road 100% Bolt-on Made in the USA With so many variables of wheel size offset/backspacing tire size brands and styles the amount of lift and specific suspension components etc. you may need to trim the plastic inner fenders and/or modify the body mount behind the front tires to eliminate tire rubbing. 20" OEM wheels and tires and 18" OEM wheels with larger tires than stock will not work with this suspension system "as is" and would require hub-centric wheel spacers. Spring mounting hardware not included (re-use factory) Use of a spring compressor required to install. Corrected suspension geometry; Improved ride and handling; Increased wheel travel
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Maximum Lift: 2.75 IN
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 0
Strut(s) Included: Yes
Bushing Color: Black
Coil Spring Material: Spring Steel
Control Arm Color: Black
Control Arm Type: Tubular
Front Shock Type: 6112 Series
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: X-Joint
Lift: 2.75 IN
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: 6112 Series
Rear Shocks Included: Yes
Rear Springs Included: No
Shock Brand: Bilstein
Shock Type: 6112 Series
Spring Load: N/A
Spring Rate: N/A
Title: Camburg Engineering 2WD/4WD 2007-2021 Toyota Tundra Bilstein 6112 Lift Kit CAM-310092-X

Detailed Fitment Results
Year Make Model 2007 Toyota Tundra 2008 Toyota Tundra 2009 Toyota Tundra 2010 Toyota Tundra 2011 Toyota Tundra 2012 Toyota Tundra 2013 Toyota Tundra 2014 Toyota Tundra 2015 Toyota Tundra 2016 Toyota Tundra 2017 Toyota Tundra 2018 Toyota Tundra 2019 Toyota Tundra 2020 Toyota Tundra 2021 Toyota Tundra
