Front 2.50" Bypass Mount Kit - Camburg - CAM-310052

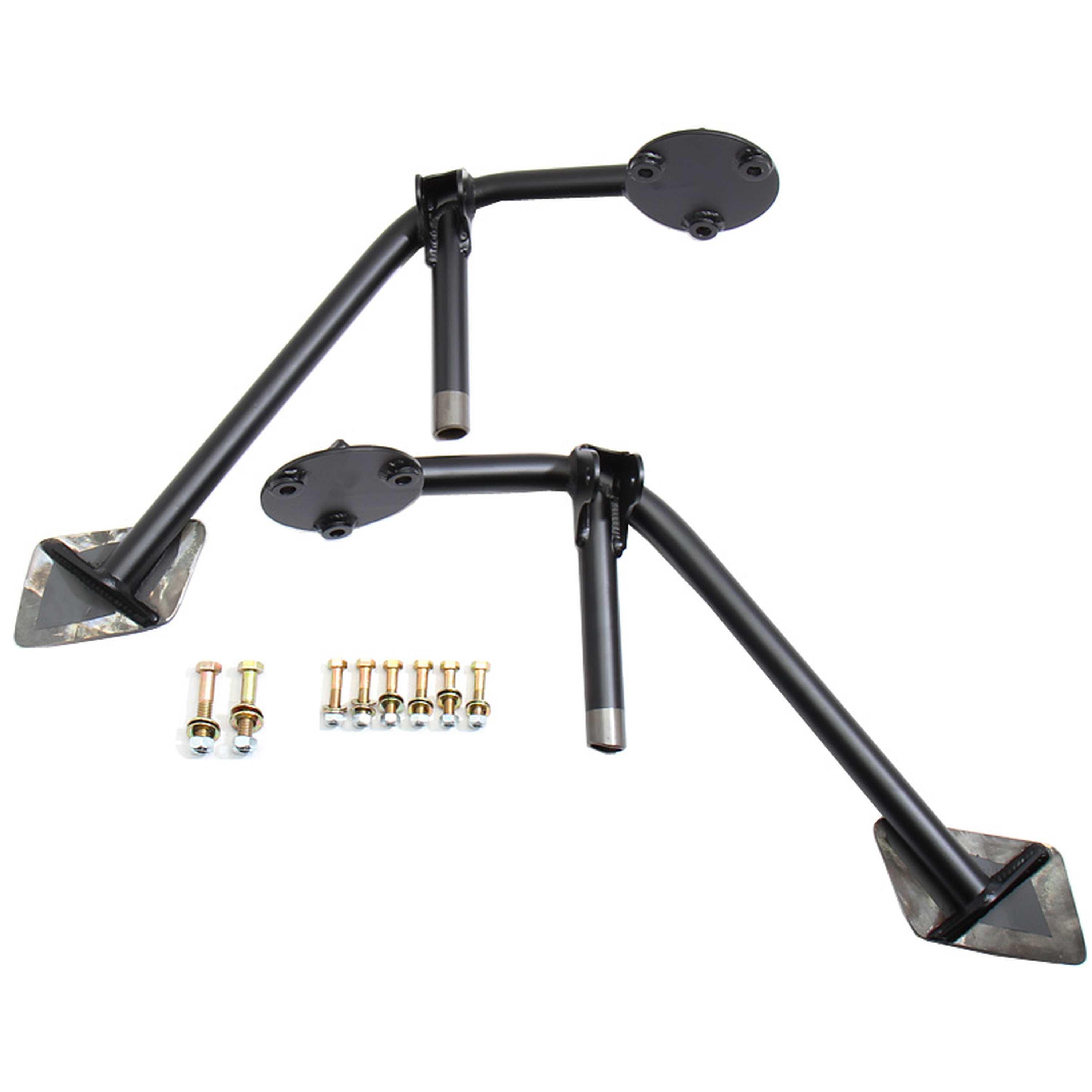

An easy way to add a bypass shock to our Toyota Tacoma Race Series long-travel kit is with our pre-made weld-on mounts. It’s built from 4130 chromoly tubing and fully MIG welded ready to go. It locates off the top of the OEM coil bucket and then has tubes that hit the top and sides of the frame for maximum attachment and strength. This is designed for our custom FOX/King 2.5 bypass shocks with the proper tube layout valving dimensions and piggyback res. We’ve spent extensive time testing getting these shocks dialed in for our kit. Adding a bypass shock to our long-travel kit adds a ton more control and bottoming resistance since they are position sensitive. This allows for a soft plush ride through the small stuff that doesn’t bottom out easily through the bigger hits and g-outs. You’re able to tune the shock by adjusting the compression and rebound adjusters to really dial in the ride based on how you’re driving it. Bypass mounts come raw as they need to be welded on. We recommend spraying them with black Steel-IT after welding. You will need to remove the factory rubber bump stop mount from the frame and trim the inner fender sheet metal. Picture is an older design new pics coming soon This is designed for our Race Series kit not Trail Series. Welding is required to install the bypass mounts You will need to remove the factory rubber bump stop mount from the frame and trim the inner fender sheet metal. Fits 2.5 x 8" shocks with 1.25" width shock spacers Fits 6 lug model trucks only. Includes grade 8 hardware; Fully MIG welded; 4130 Chromoly
Universal Or Specific Fit: Specific
Grade Type: Performance
Mounting Hole Quantity: 8
Threaded Stud Quantity: 0
Threaded Stud Length: 0 IN
Mount Plate Material: Steel
Bolt Thread Diameter: 3/8-16
Hardware Included: Yes
Prop 65 Y/N: No
Shocks Included: No
Title: Camburg Engineering 2005-2023 Toyota Tacoma Excludes X-Runner Shock Absorber Mounting Kit CAM-310052

Detailed Fitment Results
Year Make Model Submodel Body Type Name Drive Type Name 2005 Toyota Tacoma Pre Runner 2006 Toyota Tacoma Base Prerunner / Pre Runner / SR5 Prerunner / TRD Sport Prerunner 4WD / 2007 Toyota Tacoma Pre Runner / SR5 Prerunner / TRD Sport Prerunner 4WD / 2008 Toyota Tacoma Pre Runner / SR5 Prerunner / TRD Sport Prerunner 4WD / 2009 Toyota Tacoma Pre Runner / SR5 Prerunner / TRD Sport Prerunner 4WD / 2010 Toyota Tacoma Pre Runner 4WD 2011 Toyota Tacoma Pre Runner 4WD 2012 Toyota Tacoma Pre Runner 4WD 2013 Toyota Tacoma Pre Runner 4WD 2014 Toyota Tacoma Pre Runner 4WD 2015 Toyota Tacoma Pre Runner 4WD 2016 Toyota Tacoma 2017 Toyota Tacoma 2018 Toyota Tacoma 2019 Toyota Tacoma 2020 Toyota Tacoma 2021 Toyota Tacoma 2022 Toyota Tacoma 2023 Toyota Tacoma
