Race Series Long Travel Kit - Camburg - CAM-310049-H

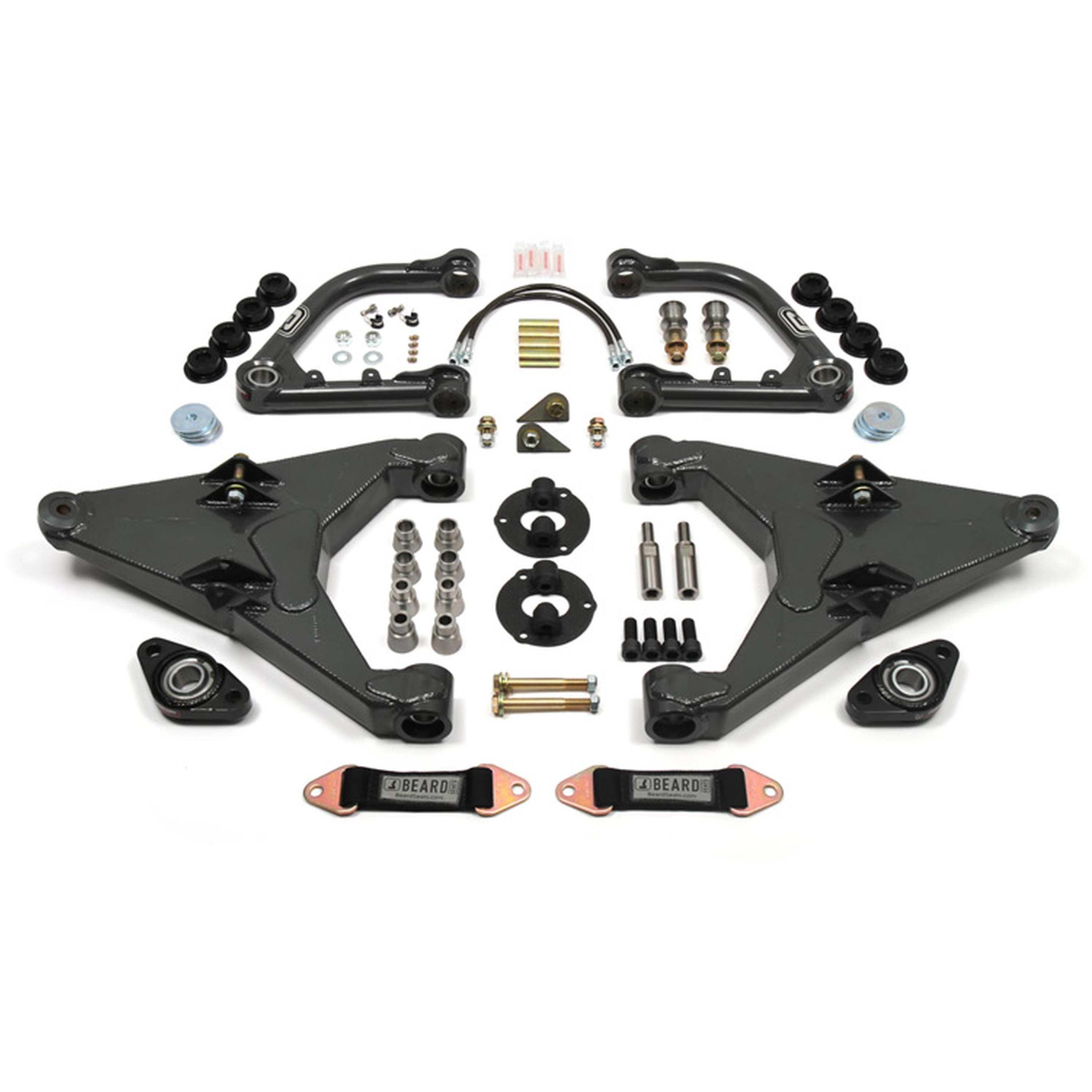

The Camburg Long Travel kit features high-performance A-Arm components. The lower arm includes uni-balls in the lower frame pivots and a uni-ball lower ball joint replacement. The upper arm pivots on urethane bushings with zerk fitting and 1.250" race uni-balls. The kit also includes heat-treated stainless steel adapters to connect the uni-ball to the spindle. The system utilizes Camburg SPEC 8" travel 2.5" reservoir coilovers by FOX or King allowing for up to 15" travel on a 2×4 and 14" on a 4×4. The system can be upgraded with a weld-on bypass shock mount and a custom FOX or King 2.5" 3 tube bypass shock. This kit is designed for trail running desert racing or off-road exploration. It is recommended to have it installed by a reputable off-road shop familiar with these types of products. Fiberglass front fenders need to be installed with this suspension system. RWD models can run a coilover bypass shock and air bump stop while 4WD models can run a coilover and air bump stop or coilover and bypass shock. This kit fits non-KDSS equipped models only. Shock specs include a 2.5 x 8" remote coilover 16" x 500-600 lb coils 23.9" extended length 16" collapsed length tapered/raised lower spring seat 2" longer lower rod end 1.25" width shock spacers and a 90-degree res. fitting on the shock. Designed for serious offroad use; Increased wheel travel; Maximum articulation
Upper Control Arms Included: Yes
Shocks Included: No
Grade Type: Performance
Bump Stops Included: No
Control Arms Included: Yes
Mounting Hardware Included: Yes
Prop 65 Y/N: No
Title: Camburg Engineering 2010-2014 FJ Cruiser 2010-2024 4Runner Heim Joint Long Travel Kit CAM-310049-H

Detailed Fitment Results
Year Make Model 2010 Toyota 4Runner 2010 Toyota FJ Cruiser 2011 Toyota 4Runner 2011 Toyota FJ Cruiser 2012 Toyota 4Runner 2012 Toyota FJ Cruiser 2013 Toyota 4Runner 2013 Toyota FJ Cruiser 2014 Toyota 4Runner 2014 Toyota FJ Cruiser 2015 Toyota 4Runner 2016 Toyota 4Runner 2017 Toyota 4Runner 2018 Toyota 4Runner 2019 Toyota 4Runner 2020 Toyota 4Runner 2021 Toyota 4Runner 2022 Toyota 4Runner 2023 Toyota 4Runner 2024 Toyota 4Runner
