Long Travel 2.5/3.0 Front Bypass Mount Kit - Camburg - CAM-310045

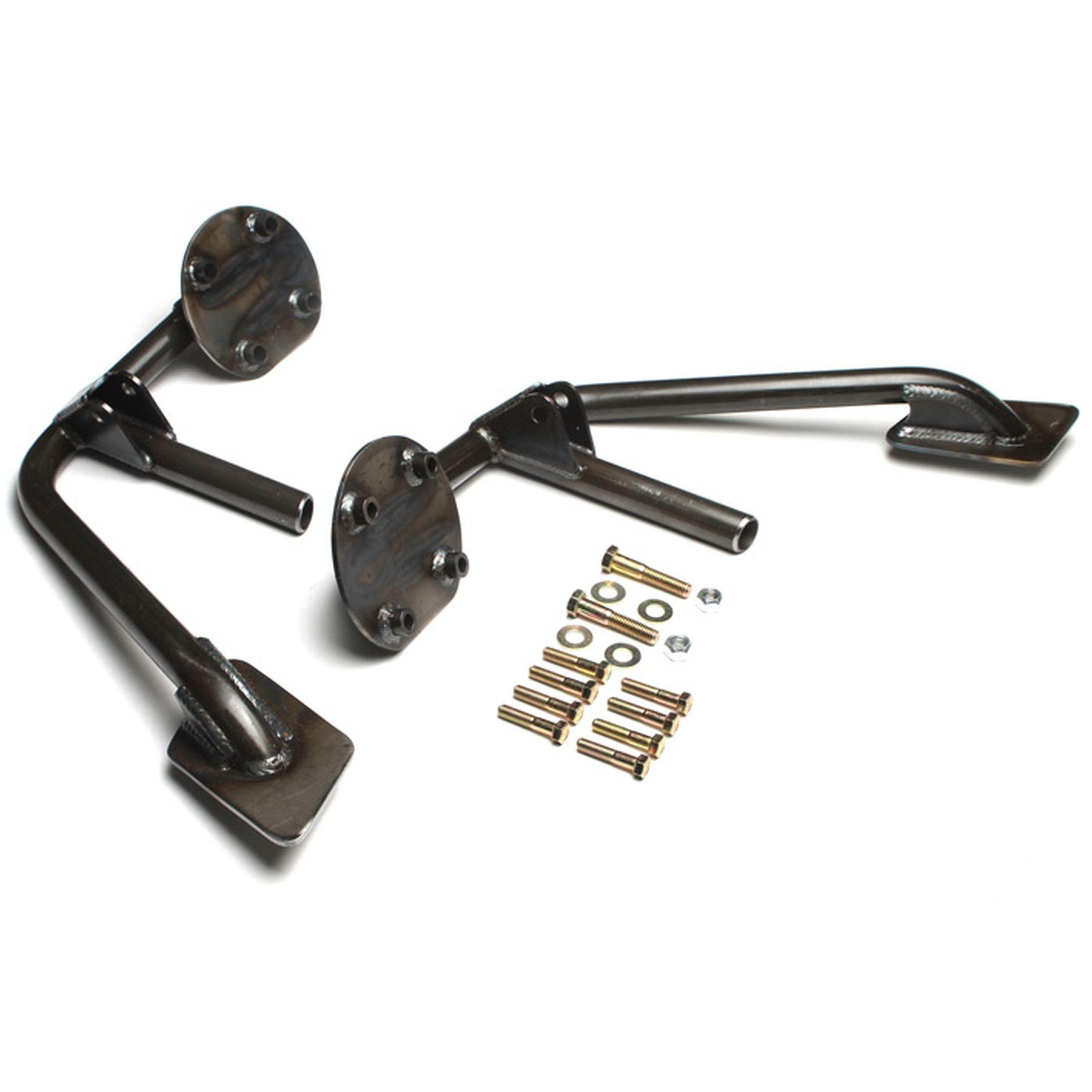

An easy way to add a bypass shock to our Toyota Tundra long-travel kit is with our pre-made weld-on mounts. It's built from 4130 chromoly tubing and fully MIG welded ready to go. It locates off the top of the OEM coil bucket and then has tubes that hit the top and sides of the frame for maximum attachment and strength. This is designed for our custom FOX/King 2.5 or 3.0 bypass shocks with the proper tube layout valving dimensions and piggyback res. We’ve spent extensive time testing getting these shocks dialed in for our kit. Adding a bypass shock to our long-travel kit adds a ton more control and bottoming resistance since they are position sensitive. This allows for a soft plush ride through the small stuff that doesn’t bottom out easily through the bigger hits and g-outs. You’re able to tune the shock by adjusting the compression and rebound adjusters to really dial in the ride based on how you’re driving it. Bypass mounts come raw as they need to be welded on. We recommend spraying them with black Steel-IT after welding. Welding is required to install the bypass mounts. Includes grade 8 hardware; Fully MIG welded; 4130 Chromoly
Universal Or Specific Fit: Specific
Grade Type: Performance
Mounting Hole Quantity: 10
Threaded Stud Quantity: 0
Threaded Stud Length: 0 IN
Mount Plate Material: Steel
Bolt Thread Diameter: 3/8-16
Hardware Included: Yes
Prop 65 Y/N: No
Title: Camburg Engineering 2007-2021 Toyota Tundra Shock Absorber Mounting Kit CAM-310045

Detailed Fitment Results
Year Make Model 2007 Toyota Tundra 2008 Toyota Tundra 2009 Toyota Tundra 2010 Toyota Tundra 2011 Toyota Tundra 2012 Toyota Tundra 2013 Toyota Tundra 2014 Toyota Tundra 2015 Toyota Tundra 2016 Toyota Tundra 2017 Toyota Tundra 2018 Toyota Tundra 2019 Toyota Tundra 2020 Toyota Tundra 2021 Toyota Tundra
