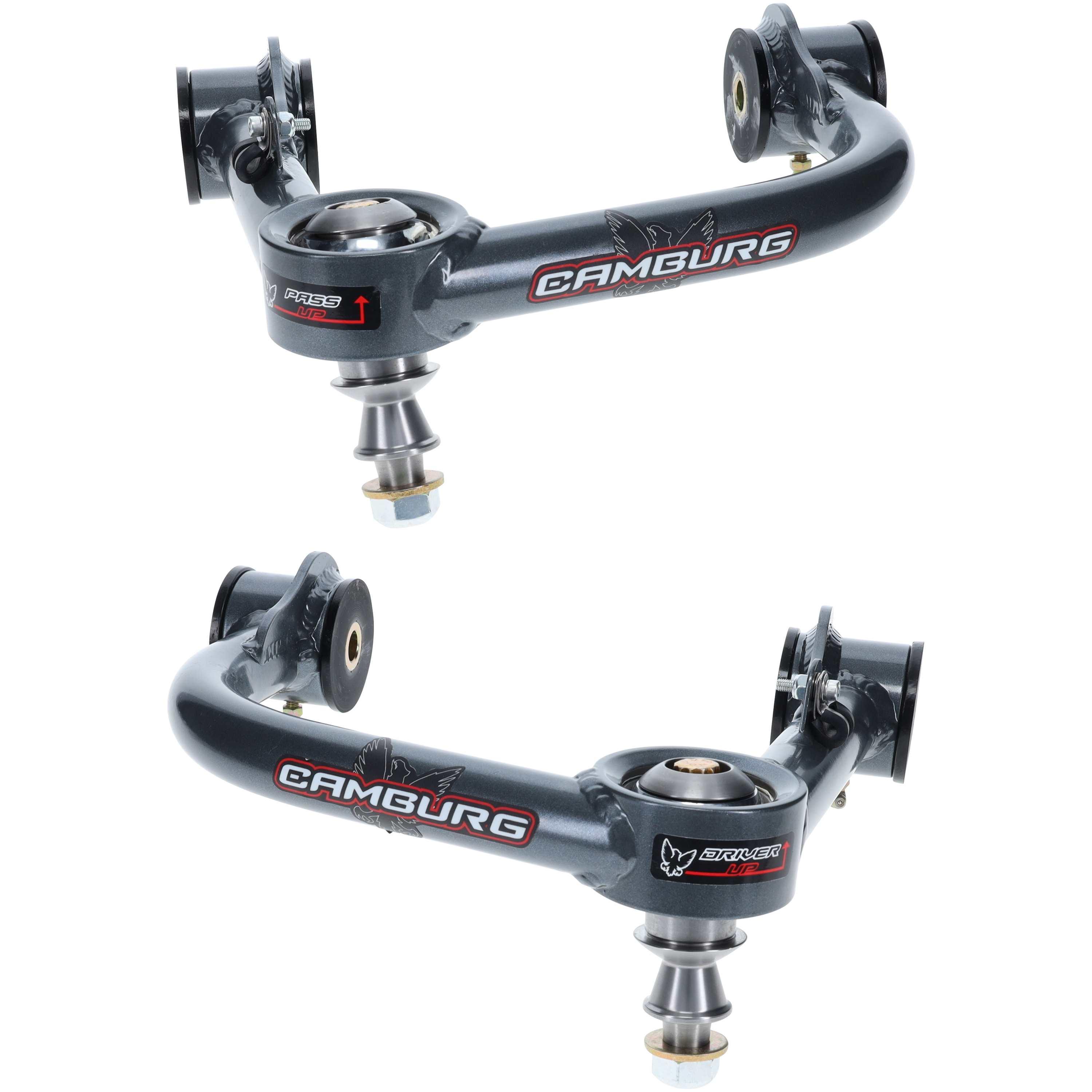

1.25" Performance Uniball Upper Control Arms - Camburg - CAM-310043

When lifting your truck the stock upper arms become the limiting factor and hold back your suspensions performance. Our Camburg upper arms address these issues and more. Replacing the stock ball-joint with a larger 1.25 uni-ball bearing we’re able to gain wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We build more caster and change the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling. Using the latest CAD/CAM engineering software we design these arms to the strictest standards using our FARO laser scan arm to model the OEM parts and frames. Manufactured in-house we have the tubes CNC laser cut and bent then are MIG welded in precision fixtures before sending out to be sandblasted and powder-coated. Our in-house CNC machine shop makes all the machined parts including the uniball mis-alignment spacers from heat-treated stainless steel. We pride ourselves in producing the best parts available under our own roof and control. Increases usable wheel travel Corrects camber and caster Eliminates weak factory ball-joints Thicker.156" wall round tubing Laser cut and CNC bent tubes MIG welded CAD/CAM engineered Polyurethane frame pivot bushings with grease-able zerk fittings FK 1.25" PTFE-lined uniballs pre-installed Steel gray powder-coating All necessary hardware included and ready to install Made in the USA Designed for 1-3" of lift Increases usable wheel travel Corrects camber and caster Eliminates weak factory ball-joints 1.25" FK uniballs. Eliminates weak factory ball-joints; Increases usable wheel travel; Corrects camber and caster
Pre-Assembled: Yes
Reinforced: No
Pre-Greased: No
Grease Fitting Included: Yes
Suspension Grade Type: Performance
Bushings Included: Yes
Ball Joint Included: Yes
Control Arm Construction: Tubular
Control Arm Material: 4130 Chromoly
Grade Type: Performance
Adjustable: Yes
Control Arm Color: Gray
Bushing Material: Polyurethane
Attachments Included: No
Ball Joint Cover Included: No
Ball Joint Type: Uniball
Hardware Included: Yes
Prop 65 Y/N: No
Set: Yes
Suspension Type: Performance
Title: Camburg Engineering 2005-2021 Toyota Hilux Control Arm Kit CAM-310043

Detailed Fitment Results
Year Make Model 2005 Toyota Hilux 2006 Toyota Hilux 2007 Toyota Hilux 2008 Toyota Hilux 2009 Toyota Hilux 2010 Toyota Hilux 2011 Toyota Hilux 2012 Toyota Hilux 2013 Toyota Hilux 2014 Toyota Hilux 2015 Toyota Hilux 2016 Toyota Hilux 2017 Toyota Hilux 2018 Toyota Hilux 2019 Toyota Hilux 2020 Toyota Hilux 2021 Toyota Hilux
