Long Travel Bedcage w/ FOX 4.0 P/B - Camburg - CAM-120030-2

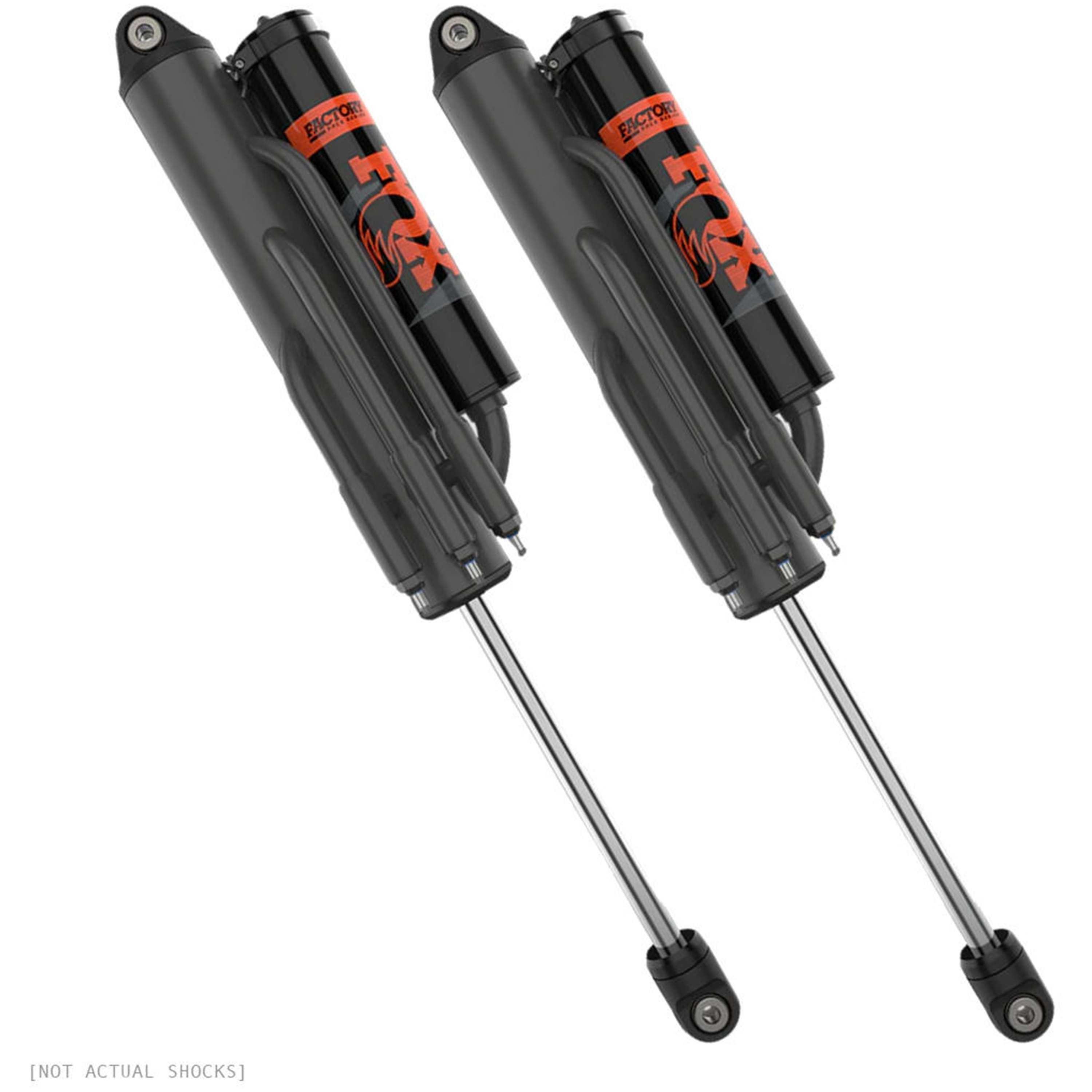

These Camburg/FOX 4.0 bypass shocks are custom built for our Ford Raptor bedcage system yielding maximum wheel travel damping control and bottoming resistance. These are not universal off the shelf shocks as our bypass tube layout valving and dimensions are specific for our kit. These have larger 1 in. bypass tubes (3 compression & 2 rebound) for maximum flow and progression along with a larger 3.5 in. diameter piggyback reservoir for a higher oil and nitrogen capacity. The external bypass tubes allow you to adjust the ride based on your use and are position sensitive. All this adds up to the best shocks on the market for your Ford Raptor. These are sold as a pair and include specific left and right shocks. Maximum wheel travel; Improved response; Optimal handling
Self-Leveling: Yes
Active or Passive Suspension: Passive
Color: Gray
Shaft Material: Stainless Steel
Mounting Hardware Included: Yes
Mounting Hardware Included: No
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Bottom
Shock Absorber Body End Measuring Point: Bottom
Boot Included: No
Body Diameter: 4.0 IN
Dust Shield Included: No
Bladder(s) Included: No
Strut Mount Insulator(s) Included: No
Bladder Sleeve(s) Included: No
Coil Spring Insulator(s) Included: No
Includes Bump Stop: No
Body Material: Cerakoted Steel
Compressed Length: 27.97 inch IN
Cylinder Finish: Coated
Dust Shield Diameter: Not Included
Extended Length: 43.97 inch IN
Hardware Included: No
Manufacturer: FOX
Material: Carbon Steel
Prop 65 Y/N: No
Reservoir Type: Piggyback
Shock Diameter: 4.0 inch
Title: Camburg Engineering Ford Raptor 2017-2020 FOX 4.0 Rear Bypass Piggyback L/T Shocks CAM-120030-2
Type: Performance
Universal Or Specific Fit: Specific

Detailed Fitment Results
Year Make Model Submodel 2017 Ford F-150 Raptor 2018 Ford F-150 Raptor 2019 Ford F-150 Raptor 2020 Ford F-150 Raptor
