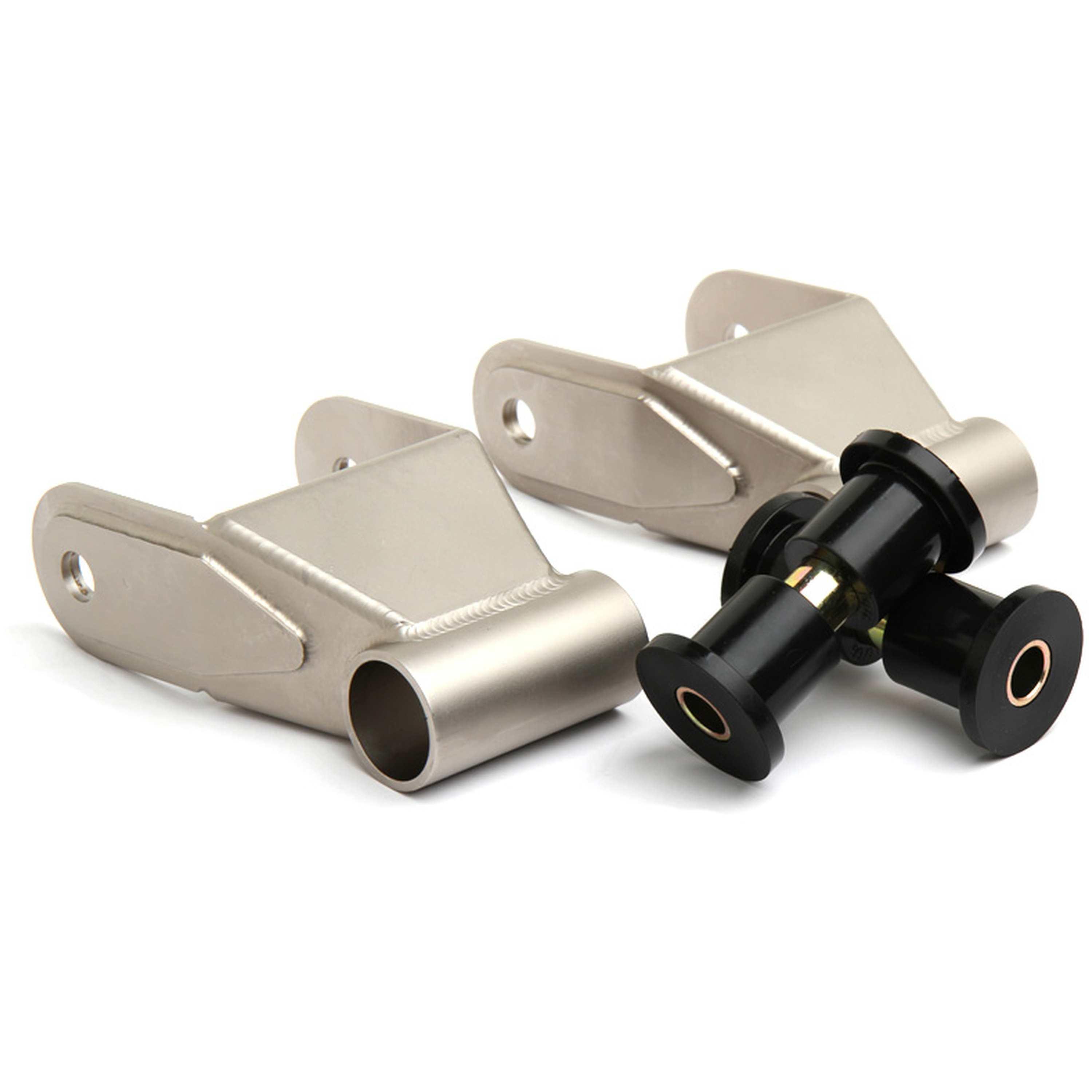

Extended Length TIG Shackles (1.50" Lift) - Camburg - CAM-120027

Our extended shackle is designed around using Deaver leaf springs but can also be used with stock springs. We’ve updated the design to a fully boxed/sealed version so they don’t have the dimple dies. These are longer length than the stock shackles and allow for maximum wheel travel. Using polyurethane bushings keeps them from deflecting under articulation like the stock ones and also allows them to pivot smoother and unrestricted. The stock shackles are too short and limit droop. These are 1.5" longer than stock. Since the shackles are longer they will lower the ride height compared to the stock shackles. These fit the OEM 3" wide leaf springs (3.50" with bushings). On Bronco’s you need to clearance the body seam behind the shackle to it doesn’t hit it on compression unless you use a drop hanger which will raise the ride height back up. These are laser cut from 4130 chromoly CNC formed TIG welded then bead blasted and powder coated textured gray. These shackles are 6" eye to eye in length. Fully boxed design Extended length Increased wheel travel Smoother action and less deflection Made in the USA. CAD Designed CNC Laser Cut and Formed; Smoother action and less deflection; Made in the USA
Bolt Material: Not Included
Drilling Required: No
Grade Type: Performance
Bolt Length: Not Included
Bracket Thickness: 3/16
Bushings Included: Yes
Color: Textured Black
Lift Height: 1.5 IN
Prop 65 Y/N: No
Title: Camburg Engineering 4WD 1980-1996 Bronco 1980-2014 F-150 SVT Raptor TIG Welded Leaf Spring Shackle Kit (Extended) CAM-120027

Detailed Fitment Results
Year Make Model Submodel Drive Type Name 1980 Ford Bronco 1980 Ford F-150 4WD 1981 Ford Bronco 1981 Ford F-150 4WD 1982 Ford Bronco 1982 Ford F-150 4WD 1983 Ford Bronco 1983 Ford F-150 4WD 1984 Ford Bronco 1984 Ford F-150 4WD 1985 Ford Bronco 1985 Ford F-150 4WD 1986 Ford Bronco 1986 Ford F-150 4WD 1987 Ford Bronco 1987 Ford F-150 4WD 1988 Ford Bronco 1988 Ford F-150 4WD 1989 Ford Bronco 1989 Ford F-150 4WD 1990 Ford Bronco 1990 Ford F-150 4WD 1991 Ford Bronco 1991 Ford F-150 4WD 1992 Ford Bronco 1992 Ford F-150 4WD 1993 Ford Bronco 1993 Ford F-150 4WD 1994 Ford Bronco 1994 Ford F-150 4WD 1995 Ford Bronco 1995 Ford F-150 4WD 1996 Ford Bronco 1996 Ford F-150 4WD 2004 Ford F-150 2005 Ford F-150 2006 Ford F-150 2007 Ford F-150 2008 Ford F-150 2009 Ford F-150 2010 Ford F-150 SVT Raptor 2011 Ford F-150 SVT Raptor 2012 Ford F-150 SVT Raptor 2013 Ford F-150 SVT Raptor 2014 Ford F-150 SVT Raptor
