Stock Length TIG 4130 Shackles - Camburg - CAM-120022

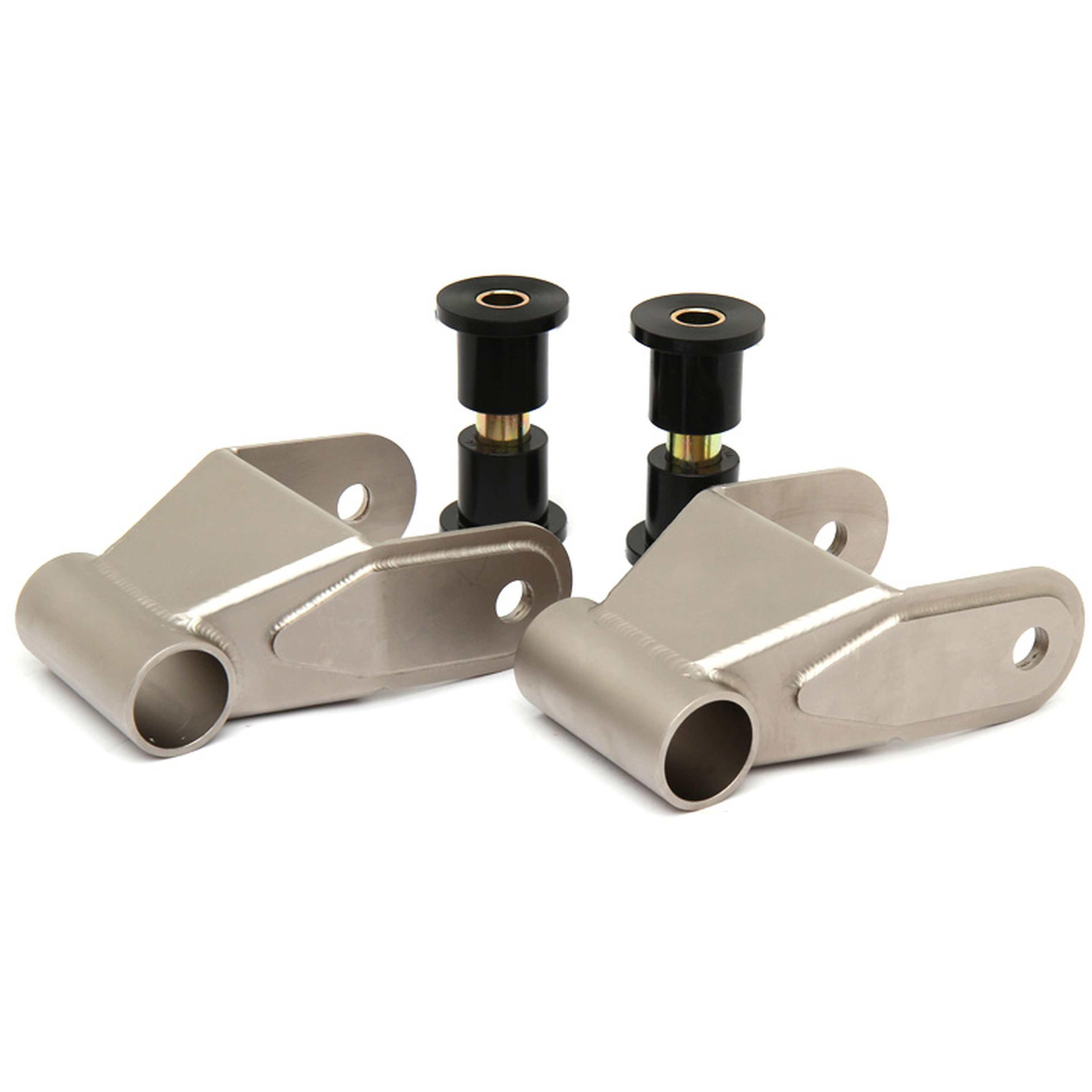

Looking for the best? Our Camburg TIG shackles replace the stock light-duty version on your F-150. The stock shackles are stamped out of thin metal and use a rubber bushing which both allow for a flexy component that also binds as it cycles since the rubber bushings are vulcanized into the shackle. Our TIG shackles are a fabricated boxed gusseted design from 4130 chromoly that is much stronger than mild steel and use polyurethane bushings that pivot smoother with less flex. We TIG weld them bead blast the surfaces then powder coat them a textured gray to match our billet arms and the FOX shock hard anodize. They are ready to be bolted on using the factory hardware. These are available in a stock length so they do not raise or lower the ride height or an 1.5" extended version that will lower the ride height about 1". Both are designed for stock and Deaver leaf springs the "stock length" versions do not work with icon leaf springs. CAD Designed CNC Laser Cut and Formed 4130 Chromoly TIG Welded Powder coated textured gray Polyurethane Bushings Made in the USA The stock length shackles are 4.5" eye to eye and the extended are 6". CAD Designed CNC Laser Cut and Formed; Smoother action and less deflection; Made in the USA
Bolt Material: Not Included
Drilling Required: No
Grade Type: Performance
Bolt Length: Not Included
Bracket Thickness: 3/16
Bushings Included: Yes
Color: Textured Black
Lift Height: 0 IN
Prop 65 Y/N: No
Title: Camburg Engineering 2015-2023 Ford F-150 TIG Welded Leaf Spring Shackle Kit (Stock Length) CAM-120022

Detailed Fitment Results
Year Make Model Submodel Body Type Name Drive Type Name 2015 Ford F-150 2016 Ford F-150 2017 Ford F-150 2018 Ford F-150 2019 Ford F-150 2020 Ford F-150 2021 Ford F-150 2022 Ford F-150 King Ranch / Lariat / Limited / Platinum / Police Responder / SSV / Tremor / XL / XLT 2023 Ford F-150 King Ranch / Lariat / Limited / Platinum / Police Responder / SSV / Tremor / XL / XLT
