4-Link Kit - Camburg - CAM-120014

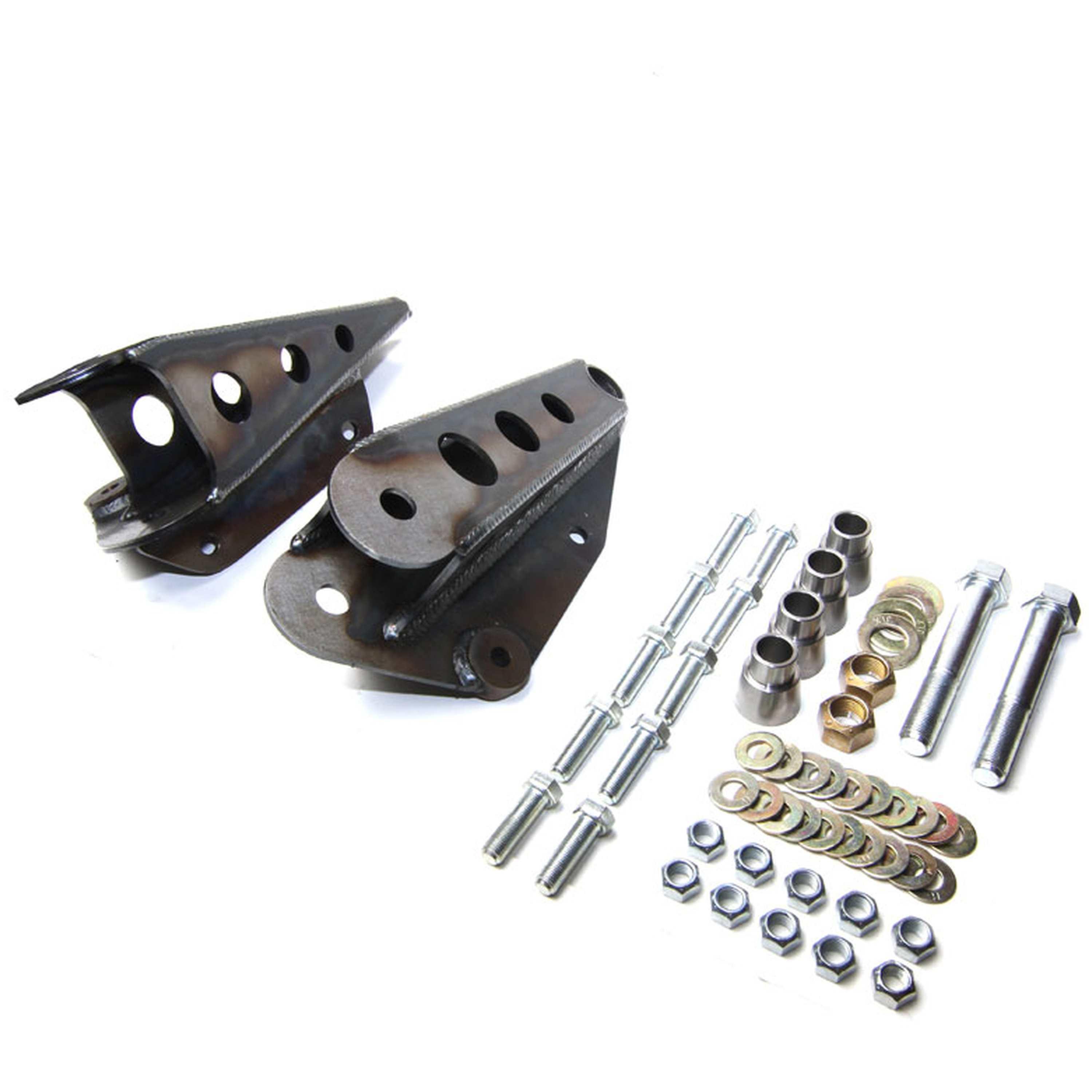

Our 4-link kit for Ford Bronco takes the rear suspension to the next level. This is for heavily modified PreRunners and race trucks only. This kit is designed specific for the unique geometry the Bronco requires since it has a short double carden rear driveshaft. The upper and lower mounts bolt to the frame using existing holes to properly position them so their is no guess work where they go. This kit will yield 20-24" of travel and pushes the rear wheelbase back 3". Fiberglass rear fenders will have to be modified for revised wheel position. The lower links are designed to use a 2.5-3" coilover and 2.5-4" bypass shock. These require your shocks to use 3" longer lower rod ends with 1/2" x 1.50" spacers. This is one component of many needed to convert your leaf spring suspension to a 4-link setup. This kit is for the serious racer and requires extensive fabrication. We recommend a qualified off-road race shop to install and setup this suspension system. This kit is for the serious racer and requires extensive fabrication. We recommend a qualified off-road race shop to install and setup this suspension system. Rear End Housing Tabbing Info Lower link tabs straight down and on center with housing axle tube Lower link tab width - 52.50" on center with minimum 70" WMS. Designed for serious offroad use; Optimized suspension geometry; Hardware included
Bracket Color: Natural
Grade Type: Performance
Mounting Hole Quantity: 4
Adjustable: Yes
Tubing Material: Steel
Tubing Color: Gray
Bracket Material: Steel
Configuration: Performance
Modification Required: Yes
Mounting Hole Diameter: 4
Prop 65 Y/N: No
Title: Camburg Engineering 4WD 1992-1996 Ford Bronco Four-Link Assembly CAM-120014
Universal Or Specific Fit: Specific Fit

Detailed Fitment Results
Year Make Model 1992 Ford Bronco 1993 Ford Bronco 1994 Ford Bronco 1995 Ford Bronco 1996 Ford Bronco
