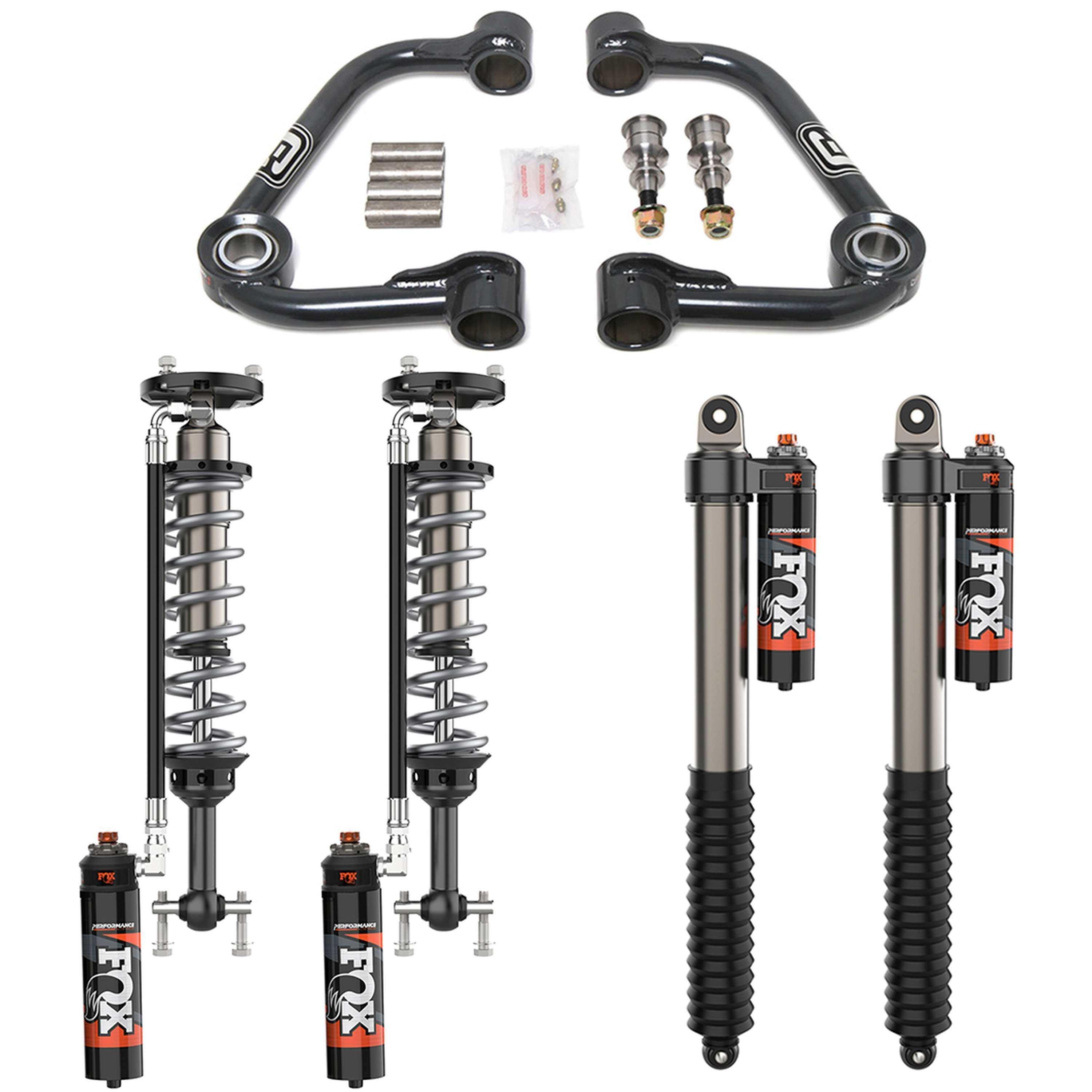

Our FOX 2.5 Performance Elite DSC kit is the ultimate mid travel kit for your Ford F-150. We utilize FOX’s 2.5 Performance Elite series front coilovers with their DSC compression adjusters. The remote external reservoirs increase the oil capacity for lower operating temperatures and the Dual Speed Compression (DSC) adjuster gives remarkable versatility and precise tuning. A simple twist of either two adjuster knobs allows twelve separate low-speed and ten high-speed compression levels. This combination of parts not only improves the ride and handling on-road but more so off-road with the larger diameter shocks and external reservoirs. After lifting your truck the stock upper arms become the limiting factor and hold back your suspensions performance. Our upper arms address these issues and more. You can choose between our tubular and billet uniball arms depending on your budget and type of use. We’re able to increase wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We also engineered the arms with more caster and changed the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling both on and off-road. For more info on all our arms check out their individual product pages to help make your choice. In the rear we go with a pair of FOX’s 2.5 Performance Elite Series DSC piggyback. shocks. They have a substantial increased oil capacity due to their size and have a lot more control and damping. These also have FOX’s Dual Speed Compression (DSC) adjusters for low and high speed compression to really dial the ride in. Since they are longer in length they increase rear wheel travel and articulation. These are designed to be used with stock leaf springs shackles or Deaver leaf springs for maximum useable wheel travel and performance. Corrected suspension geometry; Improved ride and handling; Increased wheel travel
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Silver
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Silver
Maximum Lift: 2 IN
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 0
Strut(s) Included: Yes
Bushing Color: Black
Coil Spring Material: Spring Steel
Control Arm Color: Black
Control Arm Type: Tubular
Dust Cover Caps Included: Yes
Front Shock Type: 2.5 Performance Elite DSC Series
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Lift: 2 IN
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: 2.5 Performance Elite DSC Series
Rear Shocks Included: Yes
Rear Springs Included: No
Shock Brand: FOX
Shock Type: 2.5 Performance Elite DSC Series
Spring Load: N/A
Spring Rate: N/A
Title: Camburg Engineering 4WD 2015-2020 Ford F-150 Excludes Raptor FOX 2.5 Elite DSC Lift Kit CAM-110284-UC

Detailed Fitment Results
Year Make Model Submodel Body Type Name Drive Type Name 2015 Ford F-150 4WD 2016 Ford F-150 4WD 2017 Ford F-150 King Ranch / Lariat / Limited / Platinum / SSV / XL / XLT 4WD 2018 Ford F-150 King Ranch / Lariat / Limited / Platinum / Police Responder / SSV / XL / XLT 4WD 2019 Ford F-150 King Ranch / Lariat / Limited / Platinum / Police Responder / SSV / XL / XLT 4WD 2020 Ford F-150 King Ranch / Lariat / Limited / Platinum / Police Responder / SSV / XL / XLT 4WD
