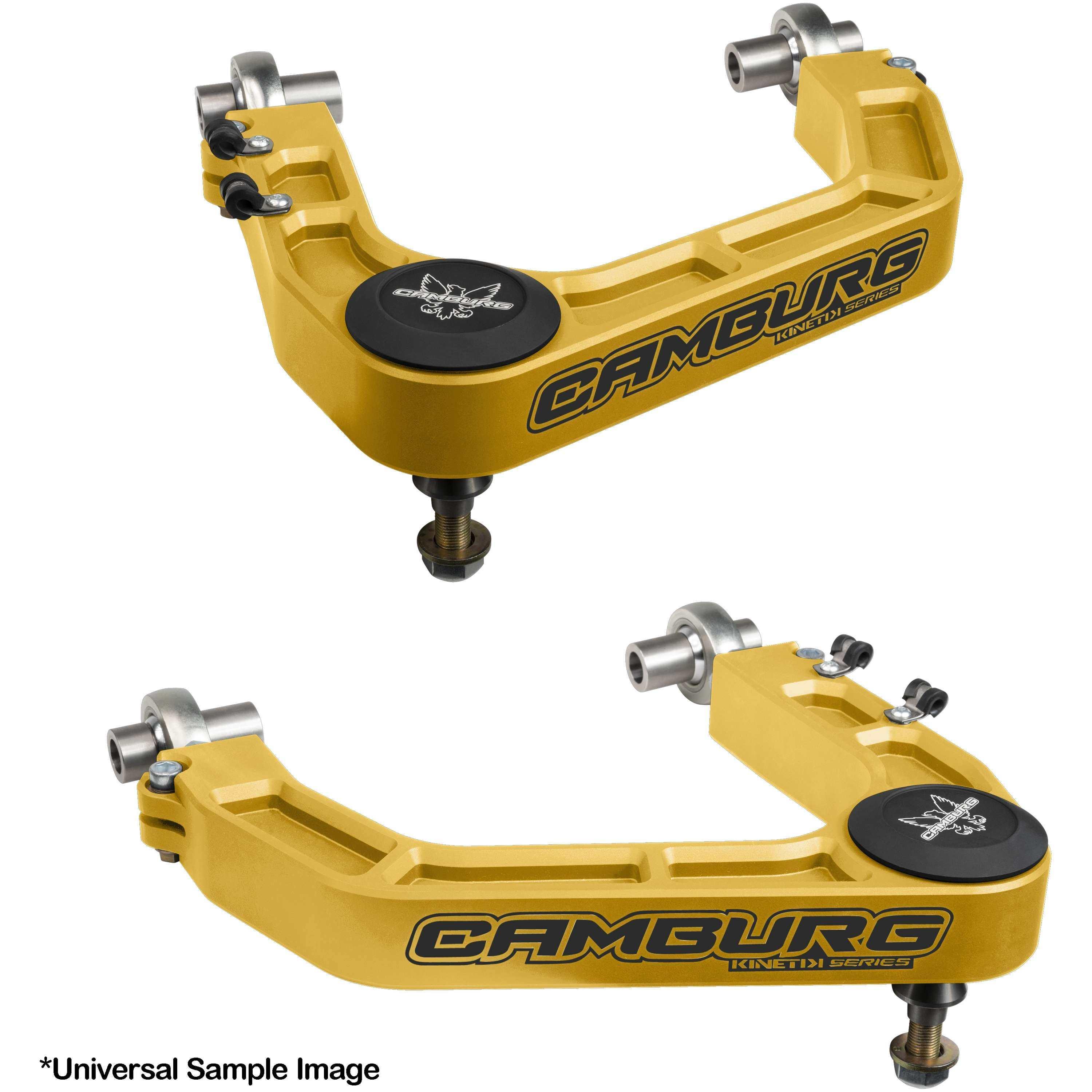

KINETIK V2 Performance Billet Uniball Upper Arms (GOLD) - Camburg - CAM-110233-GLD

Our Camburg KINETIK Series billet upper control arms are designed specifically for the 2017-24 Gen2 and Gen3 Ford Raptors including the 2019+ models with FOX Live Valve electronic suspension. These arms have undergone extensive CAD designing and machining to meet our high standards. They are CNC machined in-house from aerospace quality 6061 billet aluminum bead blasted Type II anodized gold and feature our Camburg logo laser etched. The arms utilize a larger FK 1.25" uniball with a PTFE liner for increased strength and mis-alignment allowing for maximum wheel travel. Made in the USA these arms are superior to cheaper imports. The uniball is adapted to the spindle/knuckle using model specific spacers machined from heat-treated stainless steel ensuring a precise fit without the need for drilling or modifications. The 1.25" uniball allows for a larger and stronger 9/16" 12 point bolt with a low profile press-on uniball cap to resist the elements. Additional camber and caster adjustment is possible with the use of larger and stronger FK 7/8" chromoly heim joints which also eliminate flexing/deflection under hard use and braking without binding. AN/Mil-spec hardware including a single pinch bolt and secondary jam nut ensures secure attachment of the heim joint. For 2019+ models with a position sensor incorporated into the FOX electronic suspension stainless brackets are provided to attach to our arms for the sensor linkage along with a drill template for proper positioning. The installation process is simple. The new V2 design of these control arms increases usable wheel travel corrects camber and caster and eliminates weak factory ball-joints. All necessary hardware is included for installation and the arms are designed for 1-3" of lift. When using the factory OEM 17" wheels a 1/4" - 3/8" wheel spacer may be required when running larger tires than stock. We recommend zero offset wheels (5.00" backspacing) when running larger tires than stock. Eliminates weak factory ball-joints; Increases usable wheel travel; Corrects camber and caster
Pre-Assembled: Yes
Reinforced: No
Pre-Greased: No
Grease Fitting Included: No
Suspension Grade Type: Performance
Bushings Included: Yes
Ball Joint Included: Yes
Control Arm Construction: CNC Machined
Control Arm Material: 6061-T6 Billet Aluminum
Mounting Hardware Included: Yes
Grade Type: Performance
Adjustable: Yes
Control Arm Color: Gold
Bushing Material: 4130 Chromoly
Attachments Included: No
Ball Joint Cover Included: Yes
Ball Joint Type: Uniball
Hardware Included: Yes
Prop 65 Y/N: No
Set: Yes
Suspension Type: Performance
Title: Camburg Engineering 2017-2025 Ford F-150 Raptor Raptor R Gold KINETIK Series Control Arm Kit CAM-110233-GLD

Detailed Fitment Results
Year Make Model Submodel 2017 Ford F-150 Raptor 2018 Ford F-150 Raptor 2019 Ford F-150 Raptor 2020 Ford F-150 Raptor 2021 Ford F-150 Raptor 2022 Ford F-150 Raptor 2023 Ford F-150 Raptor 2024 Ford F-150 Raptor 2025 Ford F-150 Raptor
