KINETIK V2 Performance Billet Uniball Upper Arms (BLUE) - Camburg - CAM-110214-BLU

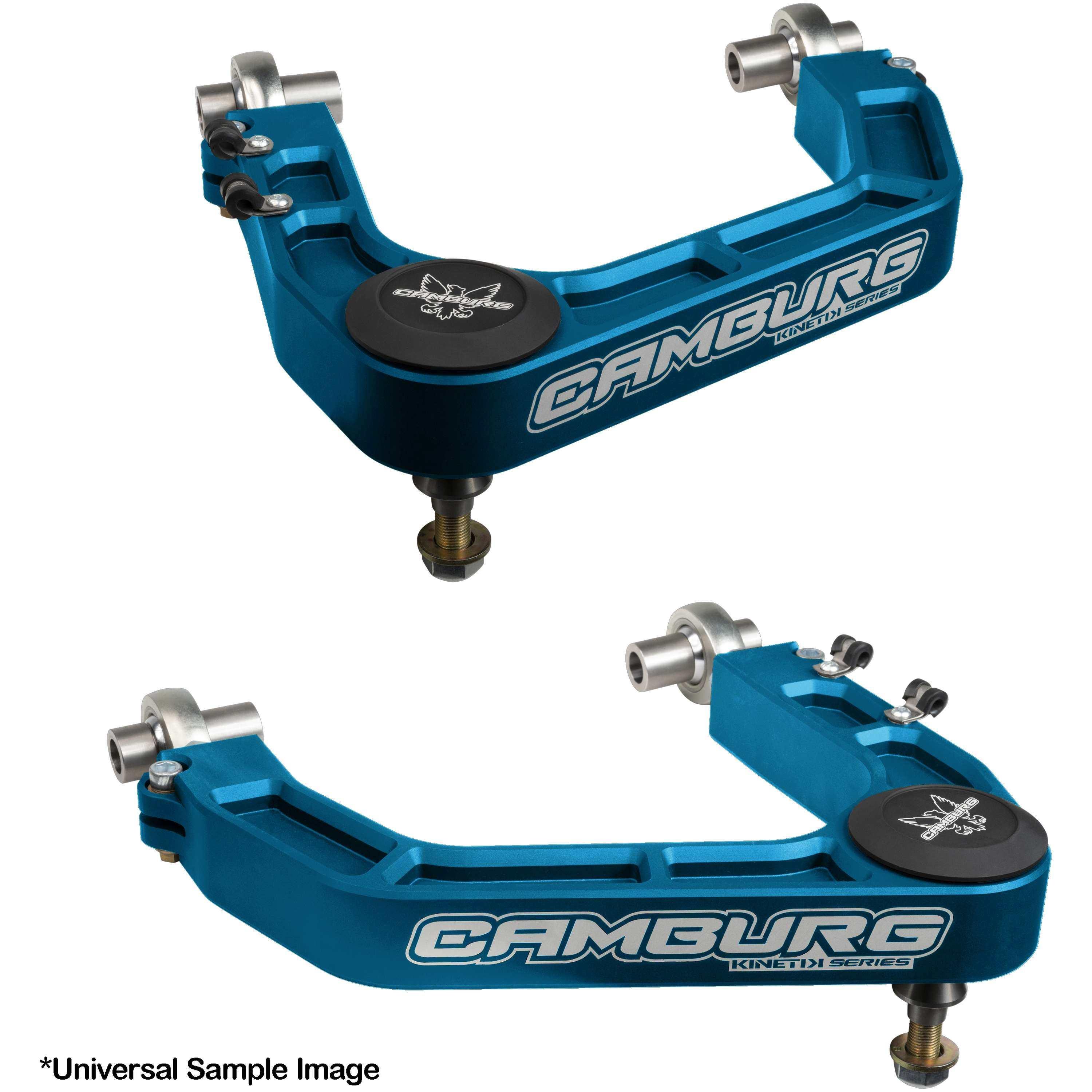

Countless hours were spent designing and refining these arms to the point where they met our high standards. CAD designing and machining gave us the ability to bring some new design elements and features to the table. We CNC machine these from aerospace quality 6061 billet aluminum then send them out to be bead blasted Type II anodized blue and have our Camburg logo laser etched. Like our tubular arms we use a larger FK 1.25” uniball that has a PTFE liner for increased strength and mis-alignment for maximum useable wheel travel. Made in the USA these are far superior to the cheaper and smaller imports other companies use. Adapting the uniball to the spindle/knuckle is done using model specific spacers that match the factory taper precisely. These are machined from heat-treated stainless steel and are a one piece design for increased strength. No drilling or modifications are needed. The 1.25” uniball gives us the ability to run a larger bolt with a low profile press-on uniball cap to resist the elements. Using larger and stronger FK 7/8” chromoly heim joints allows for additional camber and caster adjustment if needed. Using a heim joint also eliminates flexing/deflection under hard use and braking with zero binding when in use. Using AN/Mil-spec hardware we have a single pinch bolt and secondary jam nut to insure the heim is secure with the rigors of off-road use. Eliminates weak factory ball-joints; Increases usable wheel travel; Corrects camber and caster
Pre-Assembled: Yes
Reinforced: No
Pre-Greased: No
Grease Fitting Included: No
Suspension Grade Type: Performance
Bushings Included: Yes
Ball Joint Included: Yes
Control Arm Construction: CNC Machined
Control Arm Material: 6061-T6 Billet Aluminum
Mounting Hardware Included: Yes
Grade Type: Performance
Adjustable: Yes
Control Arm Color: Blue
Bushing Material: 4130 Chromoly
Attachments Included: No
Ball Joint Cover Included: Yes
Ball Joint Type: Uniball
Hardware Included: Yes
Prop 65 Y/N: No
Set: Yes
Suspension Type: Performance
Title: Camburg Engineering 2021-2025 Ford Bronco Excludes Raptor Blue KINETIK Series Control Arm Kit CAM-110214-BLU

Detailed Fitment Results
Year Make Model Submodel Body Type Name Drive Type Name 2021 Ford Bronco 2022 Ford Bronco Badlands / Base / Big Bend / Black Diamond / Everglades / Outer Banks / Wildtrak 2023 Ford Bronco Badlands / Base / Big Bend / Black Diamond / Everglades / Heritage Edition / Heritage Limited Edition / Outer Banks / Wildtrak 2024 Ford Bronco Badlands / Big Bend / Black Diamond / Everglades / Heritage Edition / Heritage Limited Edition / Outer Banks / Wildtrak 2025 Ford Bronco Badlands / Big Bend / Heritage Edition / Outer Banks
