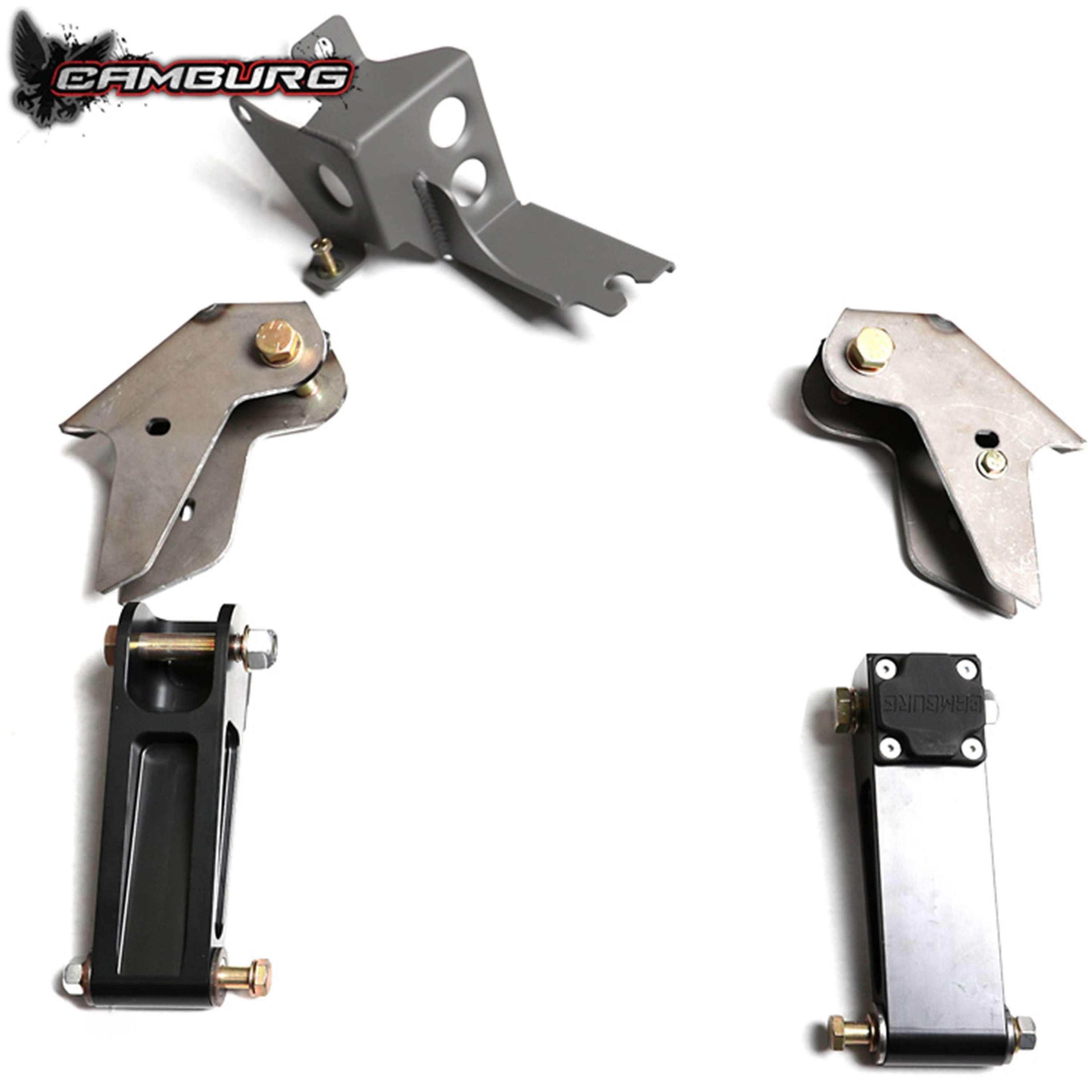

Slapper Bump Stop Kit - King 2.5 - Camburg - CAM-110178-2

Adding bump stops to our Ford Raptor long-travel kit and stock length performance lower arms is easy with our 2.5 Slapper Bump Stop kit since the lower arms are already tabbed for it. Adding a 2.5 bump stop adds a ton more control and bottoming resistance. This allows for a soft plush ride through the small stuff that doesn’t bottom out easily through the bigger hits and g-outs. This is a great add-on that makes a significant improvement off-road without taking away from ride quality on the street. Why a slapper arm setup you ask? The main benefit is it allows the air bump to strike further outboard on the lower arm making it much more effective and efficient. We’re able to keep the motion ratio geometry consistent through the bottoming out travel so there is constant contact with the lower arm and the bump stop isn’t swiping the lower arm. The bump stops only comes into play toward bottoming and allows free movement in the “ride zone” so the suspension is more active in that range. With the slapper arm design we’re also able to incorporate a custom rubber pad to reduce noise on contact. This setup also doesn’t inhibit the routing of the coilover remote reservoir lines. Last but not least it’s really cool too. This kit includes our custom King 2.5 bump stops that work more like an air shock. We’ve spent extensive time testing getting these dialed in for our kits. We supply aircraft AN bolts for the upper and lower mounts that have the proper grip/shoulder length for maximum strength. We also include bolt-on brackets to relocate the driver-side ABS module and passenger side wiring harness at the frame for proper clearance and routing. Mounts come raw as they need to be welded on. We recommend spraying them with black Steel-IT after welding. Improves ride quality and handling; Increased bottoming resistance; Added travel control
Material: Steel
Finish: Raw
Grade Type: Performance
Bump Stop Brand: King
Bump Stop Mounts Included: Yes
Bump Stop Size: 2.50 IN
Bump Stop Type: King 2.5
Bump Stops Included: Yes
Hardware Included: Yes
Mounting Hardware Included: Yes
Prop 65 Y/N: No
Title: Camburg Engineering 2017-2020 Ford F-150 Raptor King 2.5 Bump Stop Kit CAM-110178-2

Detailed Fitment Results
Year Make Model Submodel 2017 Ford F-150 Raptor 2018 Ford F-150 Raptor 2019 Ford F-150 Raptor 2020 Ford F-150 Raptor
