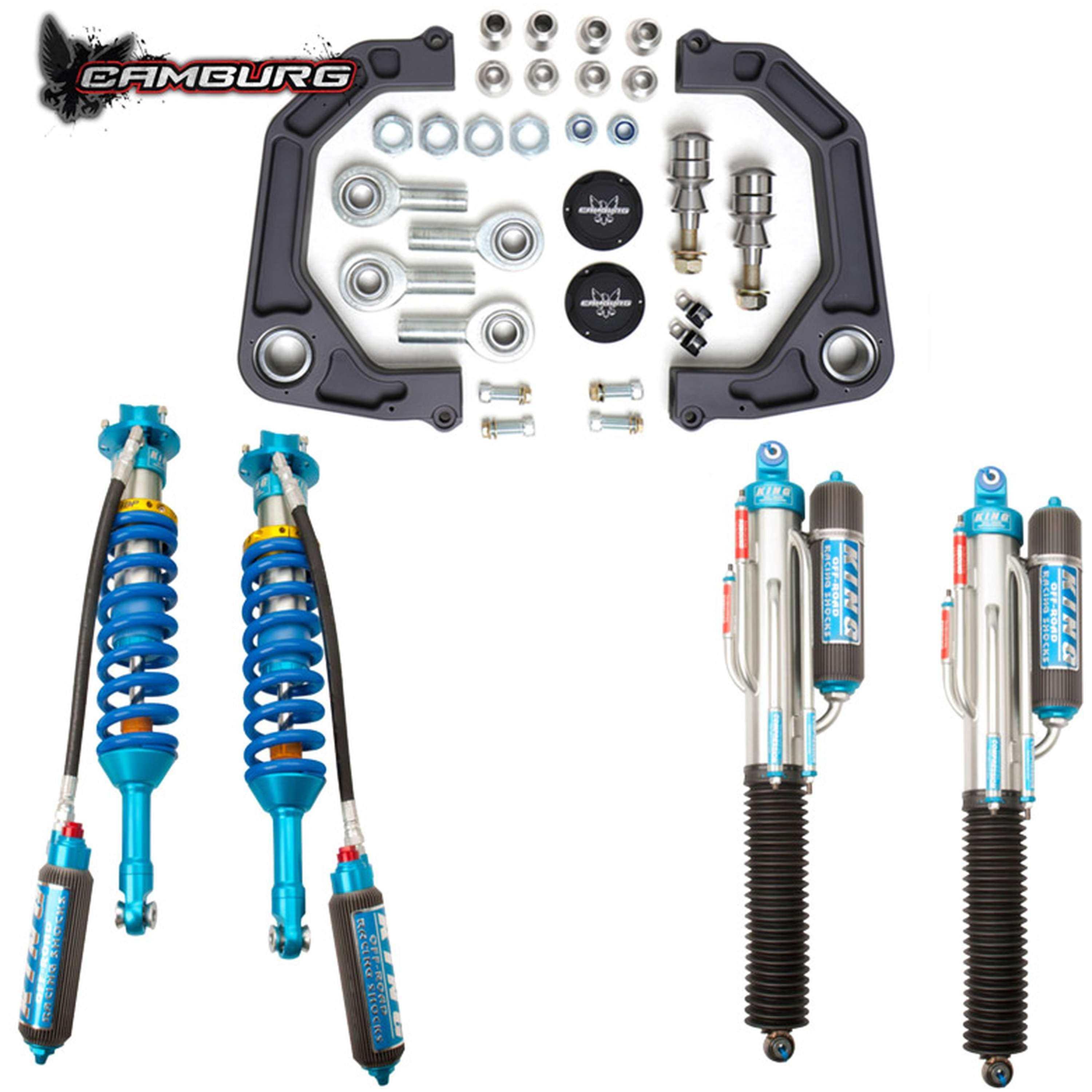

KINETIK Performance Lift Kit w/ King 3.00" IBP - Camburg - CAM-110174-K

Our King 3.0 Performance kit for the Ford Raptor takes it to the next level. We utilize Kings’s 3.0 series internal bypass front coilovers with compression adjusters. This combination of parts not only improves the ride and handling on-road but more so off-road with the larger diameter shocks and external reservoirs. With the upper arms these shocks increase wheel travel and correct geometry. Improved ride both on and off-road Eliminates weak upper ball-joint Increased wheel travel Corrected suspension geometry Made in the USA After lifting your truck the stock upper arms become the limiting factor and hold back your suspensions performance. Our upper arms address these issues and more. We’re able to increase wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We also engineered the arms with more caster and changed the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling both on and off-road. In the rear we go with a pair of King’s 3.0 bypass shocks. They have a substantial increased oil capacity due to their size and have a lot more control and damping. The bypass adjusters allows you to tune the shock softer and firmer depending on what you’re looking for and how you’re using the truck. Since they are longer in length they increase rear wheel travel and articulation. The bypass shocks have a lot more bottoming control for the bigger hits off-road. 2019-2020 models requires the Damper Interface Module installed. When using the factory OEM 17" wheel or positive offset wheel you may need a 1/4" - 3/8" wheel spacer when running larger 37" or wider tires than stock. We recommend a zero offset wheel. Corrected suspension geometry; Improved ride and handling; Increased wheel travel
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Blue
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2 IN
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 0
Strut(s) Included: Yes
Bushing Color: Unfinished
Coil Spring Color: Blue
Coil Spring Material: Spring Steel
Control Arm Color: Gray
Control Arm Type: CNC Machined
Front Shock Type: 3.0
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Lift: 2 IN
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: 3.0
Rear Shocks Included: Yes
Rear Springs Included: No
Shock Brand: King
Shock Type: 3.0 Performance
Spring Load: N/A
Spring Rate: N/A
Title: Camburg Engineering 2017-2020 Ford F-150 Raptor King 3.0 KINETIK Series Lift Kit CAM-110174-K

Detailed Fitment Results
Year Make Model Submodel 2017 Ford F-150 Raptor 2018 Ford F-150 Raptor 2019 Ford F-150 Raptor 2020 Ford F-150 Raptor
