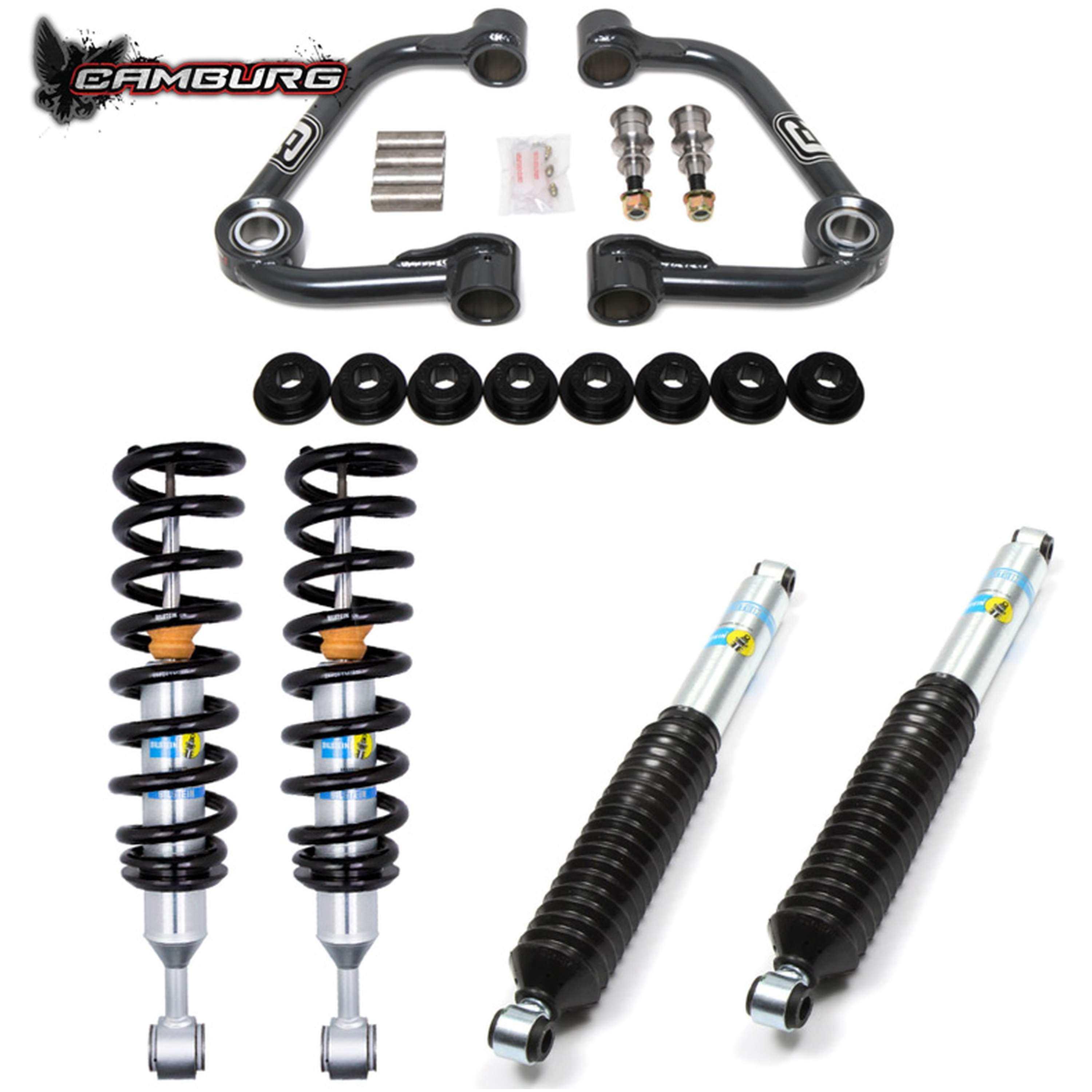

Performance Lift Kit w/ Bilstein 6112 - Camburg - CAM-110167-U

With Bilstein’s 6112 line of adjustable shocks we’ve put together a great suspension kit for that customer looking to lift the front of their F-150 improve the ride quality both on and off-road all while staying within a price point that maximizes your gains. The 6112 Series optimizes off-road and on-road capabilities with a 60mm digressive piston for increased damping control. After lifting your truck the stock upper arms become the limiting factor and hold back your suspensions performance. Our uniball upper arms address these issues and more. Replacing the stock ball-joint with a uni-ball bearing we can increase wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We also engineered the arms with more caster and changed the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling. Adjustable shocks for 0-2" of lift Increased wheel travel Corrected suspension geometry Improved ride on and off-road 100% Bolt-on Made in the USA We combine these with Bilstein’s 5100 rear shocks that gain more wheel travel and improve the ride for everyday driving. Note: factory 20" wheels will not clear the upper arm and may require a wheel spacer. We highly recommend aftermarket wheels with the correct offset with all our Ford kits for optimum performance and fit. 0-2" lift (front) Improved ride and handling Easy bolt-on installation Made in the USA Note: factory 20" wheels will not clear the upper arm and may require a wheel spacer. We highly recommend aftermarket wheels with the correct offset with all our Ford kits for optimum performance and fit. Corrected suspension geometry; Improved ride and handling; Increased wheel travel
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coil Spring Color: Black
Maximum Lift: 2 IN
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 0
Strut(s) Included: Yes
Bushing Color: Black
Coil Spring Material: Spring Steel
Control Arm Color: Black
Control Arm Type: Tubular
Dust Cover Caps Included: No
Front Shock Type: 6112 Series
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Lift: 2 IN
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: 6112 Series
Rear Shocks Included: Yes
Rear Springs Included: No
Shock Brand: Bilstein
Shock Type: 6112 Series
Spring Load: N/A
Spring Rate: N/A
Title: Camburg Engineering 4WD 2004-2008 Ford F-150 Bilstein 6112 Lift Kit CAM-110167-U

Detailed Fitment Results
Year Make Model Drive Type Name 2004 Ford F-150 4WD 2005 Ford F-150 4WD 2006 Ford F-150 4WD 2007 Ford F-150 4WD 2008 Ford F-150 4WD
