Performance 5.50" Lift Kit w/ FOX - Camburg - CAM-110006-2

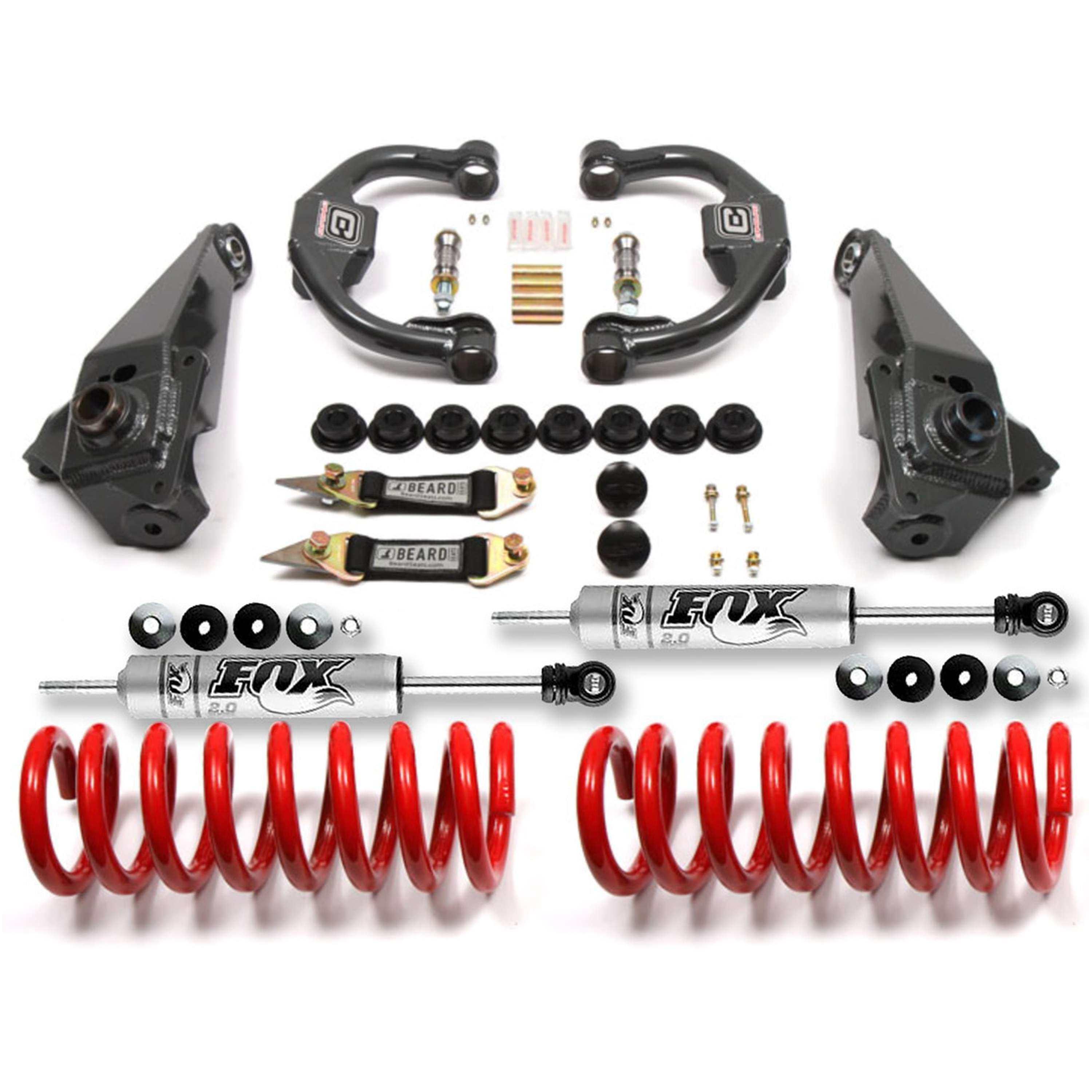

Our 5.5 kit for the RWD Ford Rangers set the bar years ago as the best performance kit available. The kit uses our 3" lift fabricated race spindles with a massive 1" vertical uniball that replaces the weak upper ball-joint that is prone to fail. This allows for 10" of useable wheel travel. The upper arms are made from 1.50" x.120 wall 4130 chromoly tubing and double shears the uniball. We use FOX 2.0 series for added control that bolt right in and are valved for this kit. Our coil springs provide 2.5" lift and are heat-treated and stress relieved. Track width is increased 1.5" per side giving you a wider stance for better stability and added wheel travel. This is why Fiberglass front fenders are highly recommended. We now include our weld-on upper frame gusset reinforcement kit. This kit fits RWD Rangers with coil springs only. For torsion bar trucks use our Ranger Edge 6.0 kits. 1998-2000 models require the larger 2001+ 11.25" OD brake rotors Must re-use the factory OEM spindle snouts/pins. Aftermarket versions will not work Fiberglass front fenders required to run 33" tires. Corrected suspension geometry; Improved ride and handling; Increased wheel travel
Spring Material: Spring Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Red
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 5.5 IN
Coil Spring End 1 Type: Open
Coil Spring End 2 Type: Open
Coils Quantity Front: 2
Coils Quantity Rear: 0
Strut(s) Included: No
Bushing Color: Black
Coil Spring Color: Red
Coil Spring Material: Spring Steel
Control Arm Color: Black
Control Arm Type: Tubular
Front Shock Type: 2.0
Front Springs Included: Yes
Hardware Included: Yes
Joint Type: Uniball
Lift: 5.5 IN
Load Rate: N/A
Prop 65 Y/N: No
Rear Shock Type: N/A
Rear Shocks Included: No
Rear Springs Included: No
Shock Brand: FOX
Shock Type: 2.0 Performance Series
Spring Load: N/A
Spring Rate: N/A
Title: Camburg Engineering 2WD 1998-2000 Ford Ranger FOX 2.0 Performance Lift Kit CAM-110006-2

Detailed Fitment Results
Year Make Model Drive Type Name 1998 Ford Ranger RWD 1999 Ford Ranger RWD 2000 Ford Ranger RWD
