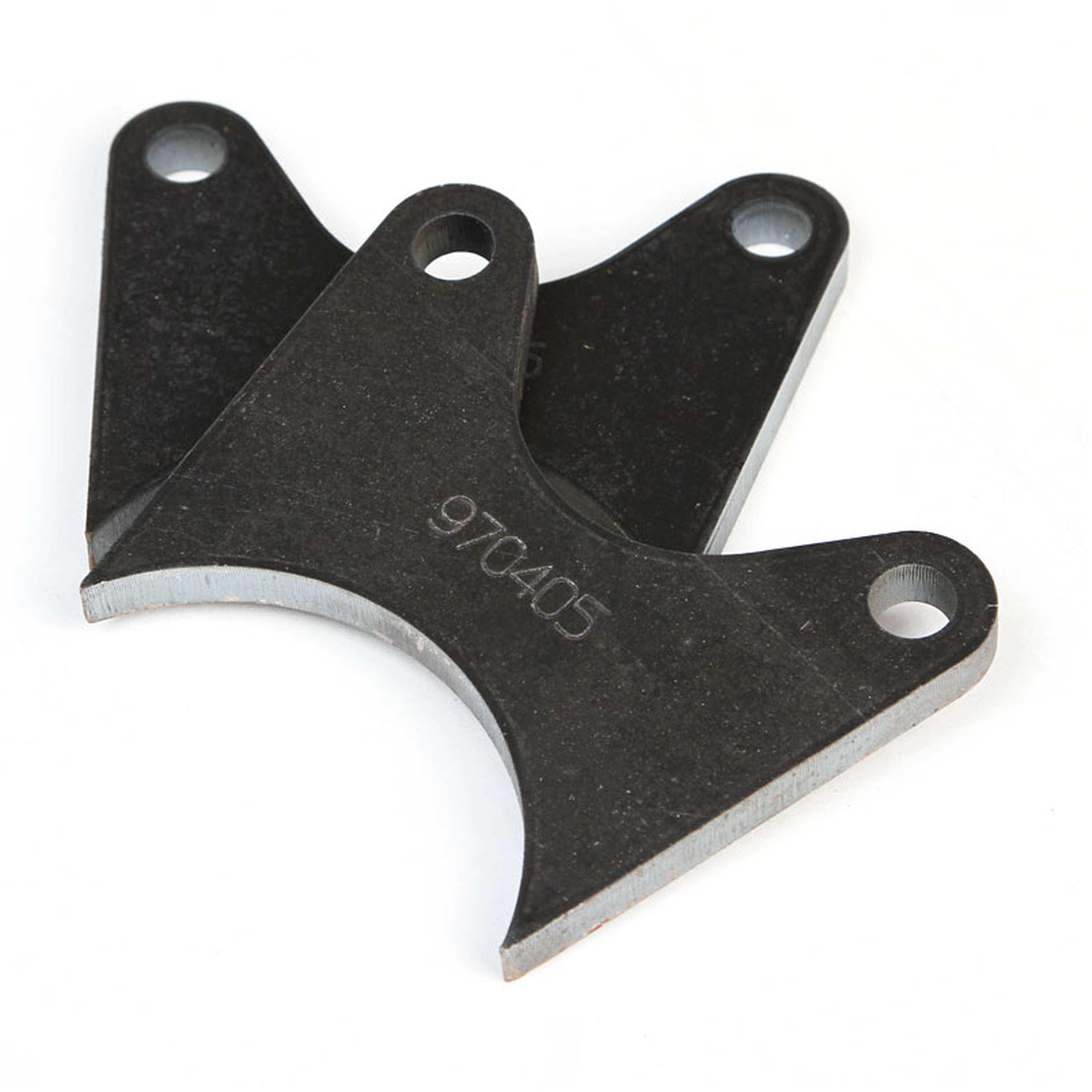

3.50" Rear Axle housing Brake Caliper Tabs (13" Rotor x 3.50" Spacing) - Camburg - CAM-020100

These are the brake caliper tabs we use when building a Camburg rear end. These are designed for Wilwood's 3.5" lug spacing. They also work with radial mount calipers with the proper machined adapters. These are CNC laser cut from thick 3/8" steel and are setup to be through bolted with a 7/16" bolt. These can be MIG or TIG welded. Select your axle housing tube size and the brake rotor diameter. These tabs work with the following calipers. Wilwood 4 Piston Superlite Wilwood 6 Piston Superlite with adapter #250-6309 Wilwood Aero6 with adapter #250-14046 Wilwood Aero6-ST with adapter #250-14046. Can be MIG or TIG welded; CNC Laser cut; 3/8" Steel
Mounting Hardware Included: No
Bolt size: 7/16 IN
Hardware Included: No
Housing Tube Size: 3.5 IN
Lug Spacing: 3.5 IN
Material: Steel
Position: Rear
Prop 65 Y/N: No
Rotor Size: 13 IN
Thickness: 3/8 IN
Title: Camburg Engineering 3.50 Rear Axle Housing Brake Caliper Tabs (13 inch Rotor x 3.5 inch Spacing) (Pair) CAM-020100
