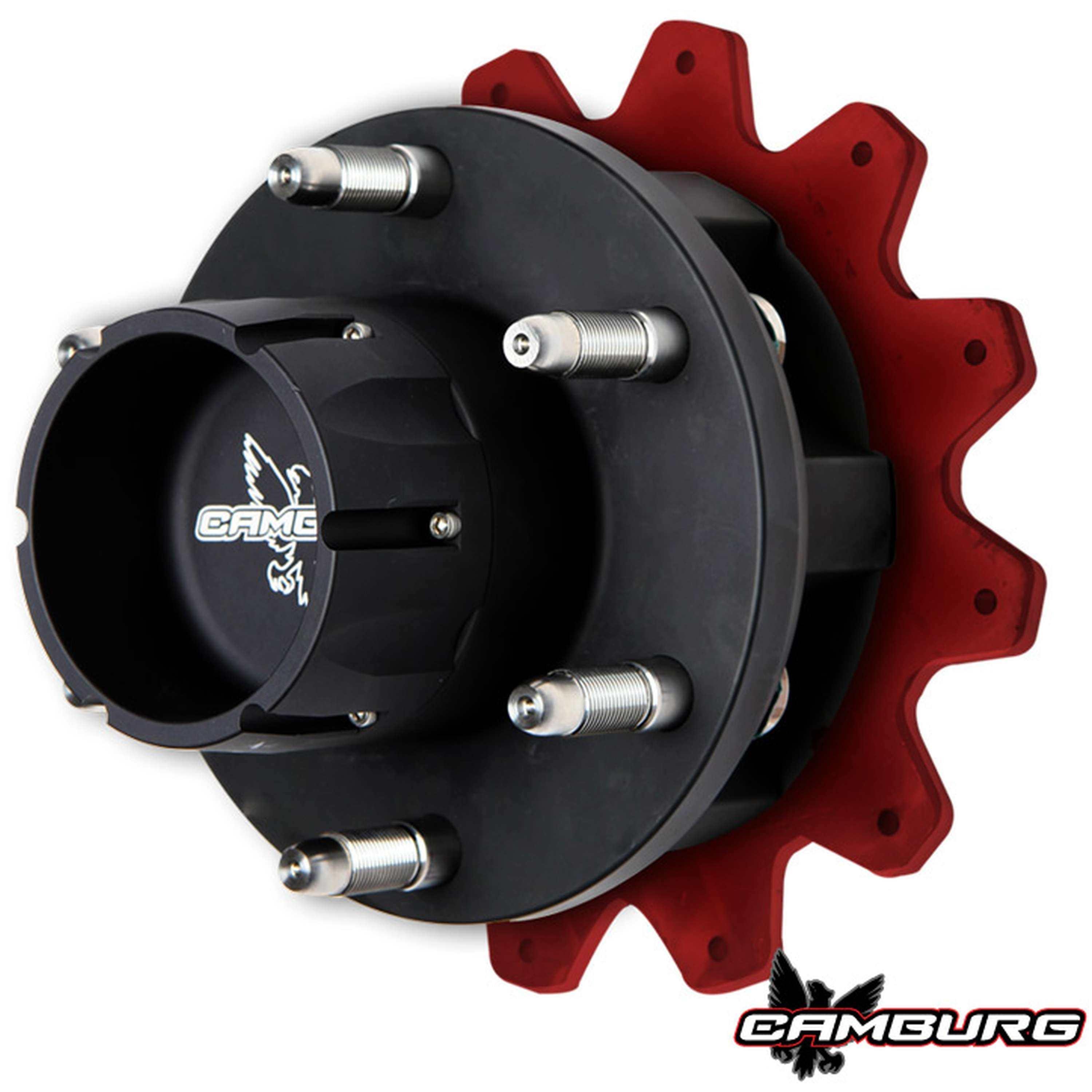

2.50" Race Series Front Hub Kit (5x5.5) - Camburg - CAM-010031

Our race and championship winning Camburg 2.50 front hubs are the ultimate front hub setup for race trucks and serious PreRunners. These are what we use on all our KINETIK 7200/6100/TT's. They are available in 5 on 5.5" and 6 on 5.5" bolt patterns along with the larger 6 on 6.5" racing bolt pattern. Our 2.50 lightweight front hub design has a wide bearing spread for increased strength and longevity. We also use larger 7" and 8" round material for the hub body for increased strength around the wheel stud area. We CNC machine the hubs in-house from more expensive and stronger 7075-T6 aluminum then type II anodize them matte black. Our wheel studs are also machined in-house from 4340 chromoly then heated-treated stress relieved and black-oxide coated. They have 5/8-18 threads with an 11/16 shoulder for optimum strength. The tapered hub-centric center caps help get the wheels on when you’re out on the race course where time is critical. We supply them with high quality Timken bearings and races along with SKF seals. Our red brake rotor adapters round out the package with all the necessary hardware O-rings etc. and bearing preload spacers. Simple things like drilled head bolts to safety wire the brake rotor adapters on show the attention to detail with our hub kits that you don’t get from other companies. We cut no corners or costs using the best materials designs and processes. To complete this setup you’ll need our weld-in/bolt-on spindle snouts and our custom spindle nut wrench. Timken wheel bearings; Billet Aluminum hubs; Made in-house
Inside Diameter: 2.00 IN
Mounting Hole Quantity: 5
Sensor Wiring Harness Length: 0 IN
Wheel Speed Sensor Attached: No
Mounting Flange Material: 7075 Billet Aluminum
Bolt Pattern: 5x5.50 IN
Bolt Circle Diameter: 5.50 IN
Bearing Generation: Timken
Bearing Size: 2.50 IN
Hardware Included: Yes
Hub Material: 7075 Billet Aluminum
Hub Size: 2.50 IN
Prop 65 Y/N: No
Title: Camburg Engineering 2.50 Race Series Front Hub Kit (5x5.5) CAM-010031
