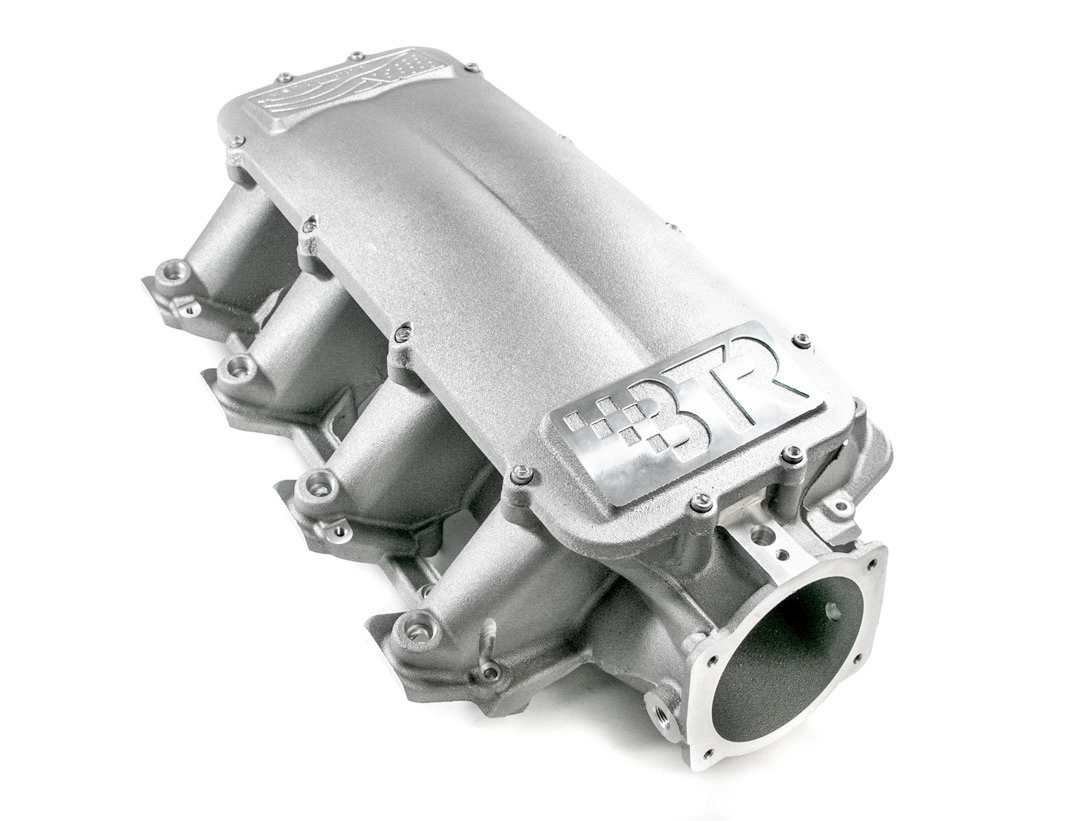

BTR EQUALIZER 1 INTAKE MANIFOLD - Brian Tooley Racing - IMA-01

This intake is designed for combinations that are looking to make peak power between 6000 and 8000 rpm. Boosted engine combinations are actually more reliable making peak power in this higher RPM range compared to making peak power around 6500 rpm like most stock style intakes provided the valve train is engineered properly.
Cast from 319 Aluminum
2-piece design for easy porting access
Lightweight CAD-generated design
Profiled port openings for optimum out of the box performance
All threads are roll form aircraft standard DSDV
Clears F-Body cowls
Clears C5 cowls with minimal massaging to intake
Does NOT work with truck accessories
DESIGNED and MADE IN THE USA!!
O-Ringed port openings and Lid surface
Easy Insert steep chamfer injector bores for trouble free injector o-ring insertion
6000-8000+ RPM Ideal operating range (for sub 4 in stroke applications)
Underslung plenum design for maximum hood clearance
102mm profiled throttle bore
1 MAP sensor location in rear with 2 additional optional locations
Additional user defined LS3 and LS1/LS2/LS6 MAP sensor bores
ISO9001:2015 certified machining
