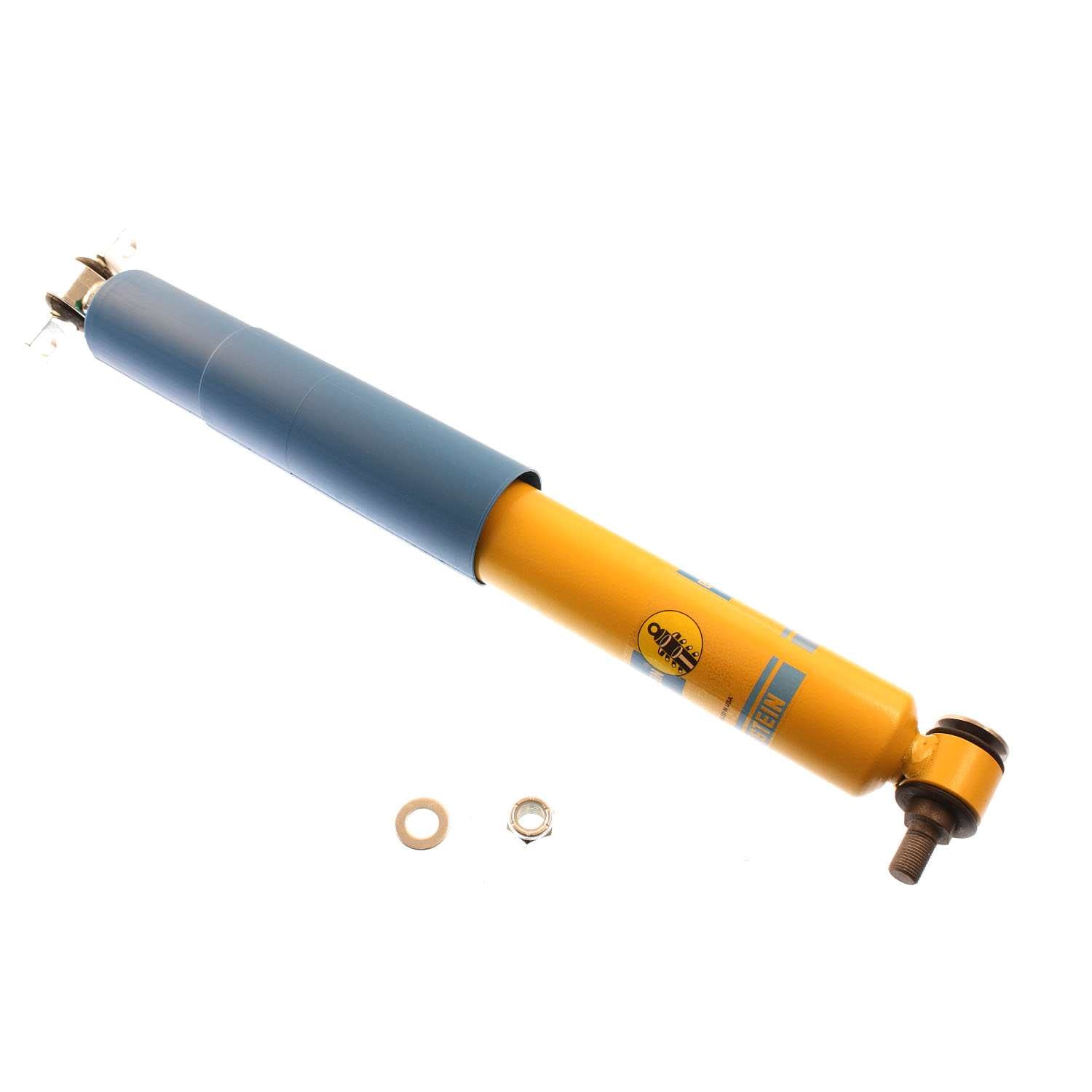

AK Series - Suspension Shock Absorber - Bilstein - F4-BE5-F132-M0

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.Monotube design ensures consistent fade-free performance in all conditions; Direct fit (OE) mounting design; Race-winning valvings for optimum weight transfer feel and grip in various track conditions
Adjustable Damping: Non-Adjustable
Body Design: Stock Mount Smooth Body
Body Material: Steel
Boot Included: Blue Straight
Collapsed Length (IN): 13.11
Collapsed Length (MM): 333.0
Compression @0.26m/s: 335
Compression @0.52m/s: 520
Extended Length (IN): 20.28
Extended Length (MM): 515.0
FAB: Monotube design ensures consistent fade-free performance in all conditions
FAB: Race-winning valvings for optimum weight transfer feel and grip in various track conditions
FAB: Direct fit (OE) mounting design
Finish: Yellow Paint
Internal Design: Monotube
Lower Mount Type: Cantilever
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Digressive
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.26m/s: 430
Rebound @0.52m/s: 670
Segment: Motorsports
Series: AK Series
Shaft Diameter: 11mm
Spring Seat Included: No
Stroke/Travel Length (IN): 7.17
Stroke/Travel Length (mm): 182.1
Title: Bilstein Shock Absorbers
Upper Mount Type: Bar Pin
