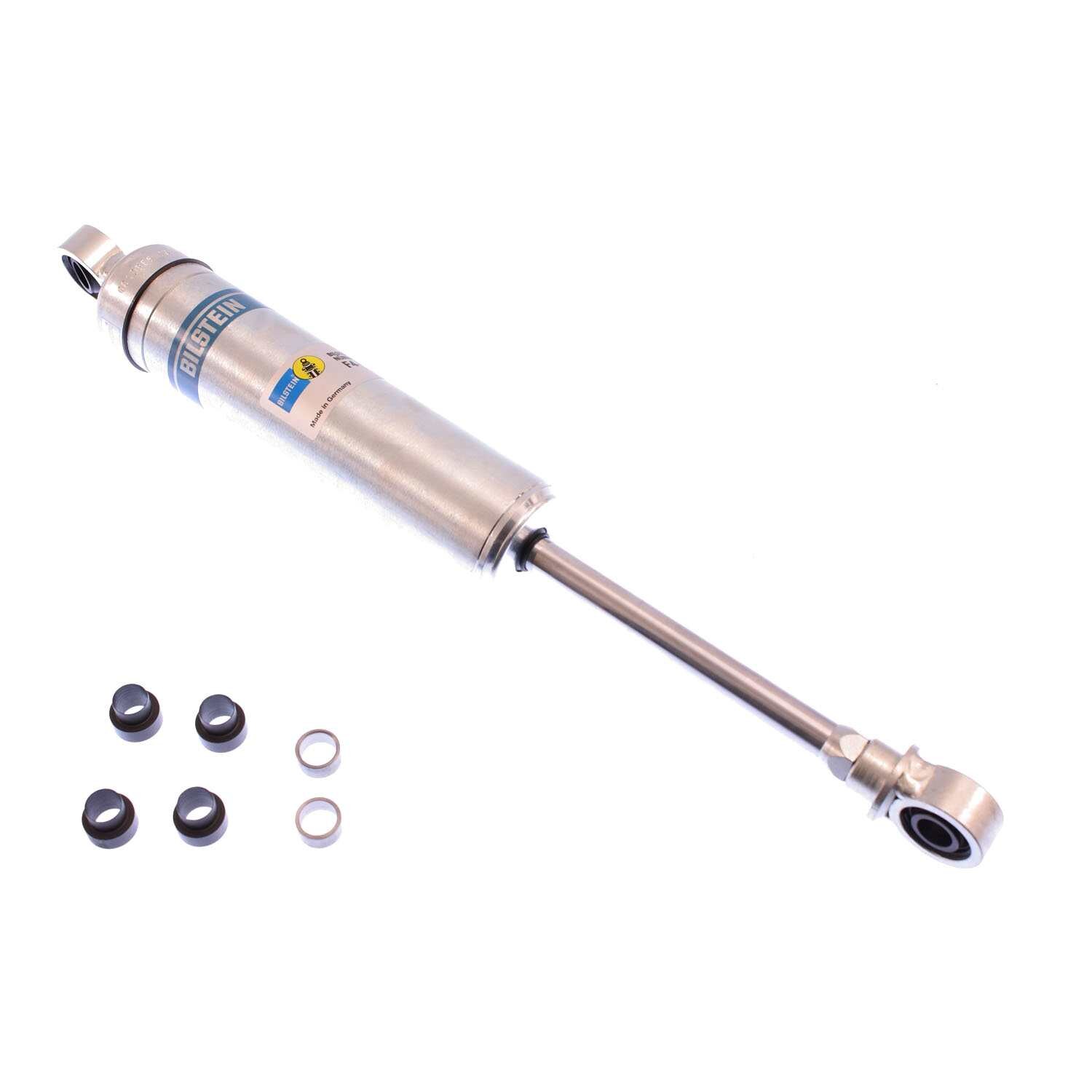

M 7100 Classic - Suspension Shock Absorber - Bilstein - F4-B46-0930-H0

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time the M 7100 Classic shock absorber will deliver period correct performance.46mm monotube design ensures consistent fade-free performance in all conditions; Available for standard and coilover applications in a wide variety of lengths; Self-adjusting deflective disc valving
Body Design: Smooth Body (Coilover)
Collapsed Length (IN): 11.24
Collapsed Length (MM): 285.5
Compression @0.52m/s: 1600
Extended Length (IN): 16.24
Extended Length (MM): 412.5
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
FAB: Self-adjusting deflective disc valving
FAB: Available for standard and coilover applications in a wide variety of lengths
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 3500
Reservoir: No
Segment: Motorsports
Series: M 7100 Classic
Shaft Diameter (mm): 14.0
Spring Seat Included: No
Stroke/Travel Length (IN): 5.00
Stroke/Travel Length (mm): 127.0
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in Heim
