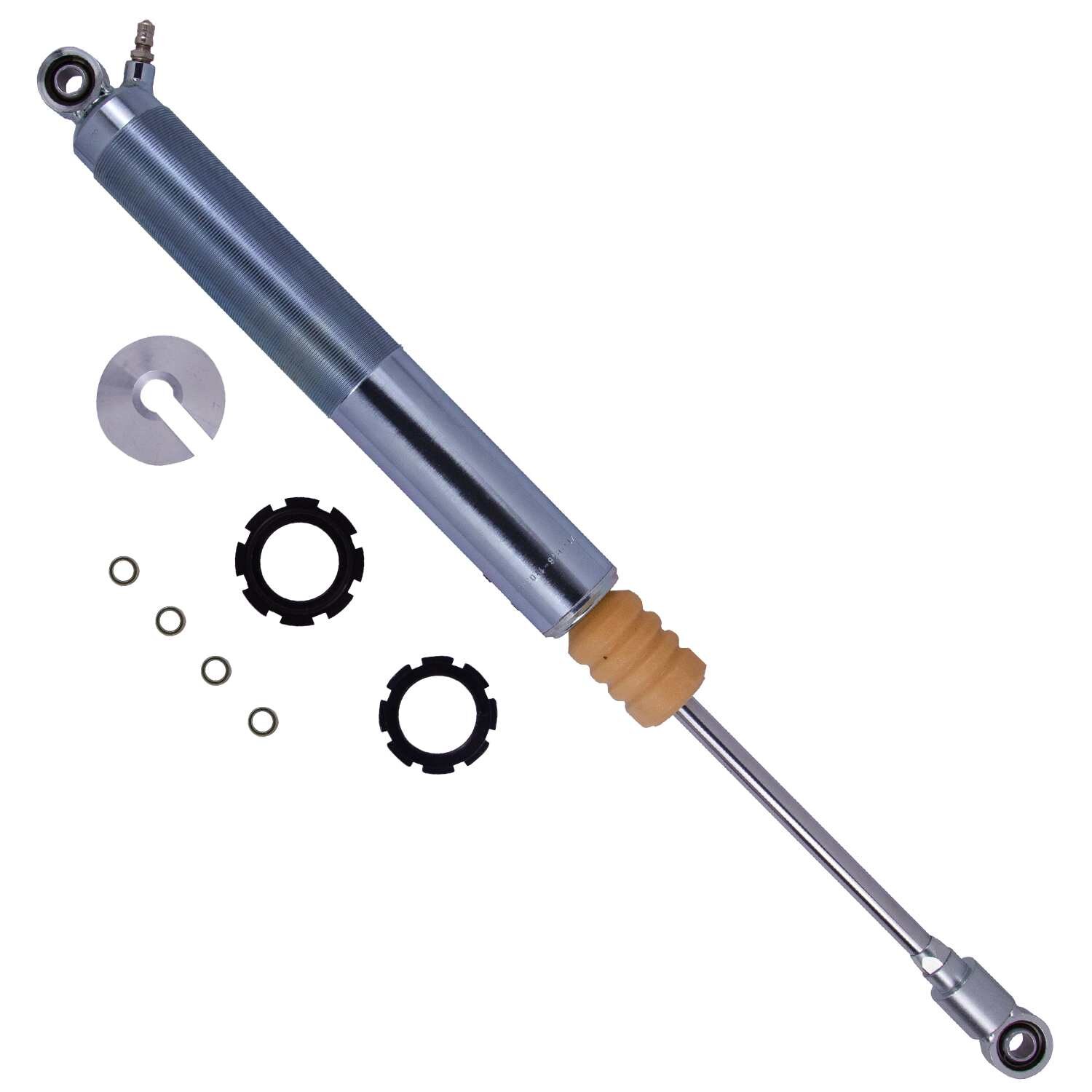

M 7100 (Coilover) - Suspension Shock Absorber - Bilstein - B46-1103S

Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring. All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.46mm monotube design ensures consistent fade-free performance in all conditions; Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control; High-flow piston reduces harshness
Body Design: Threaded Body (Coilover)
Collapsed Length (IN): 17.44
Collapsed Length (MM): 443.0
Compression @0.52m/s: 1000
Extended Length (IN): 26.65
Extended Length (MM): 676.9
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
FAB: High-flow piston reduces harshness
FAB: Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Finish: Nickel Plated with Clear Powder Coat
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 2550
Reservoir: No
Segment: Motorsports
Series: M 7100 (Coilover)
Shaft Diameter (mm): 14.0
Spring Hardware: Single Rate (2.5in)
Spring Seat Included: Yes
Stroke/Travel Length (IN): 9.21
Stroke/Travel Length (mm): 233.9
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in Heim
