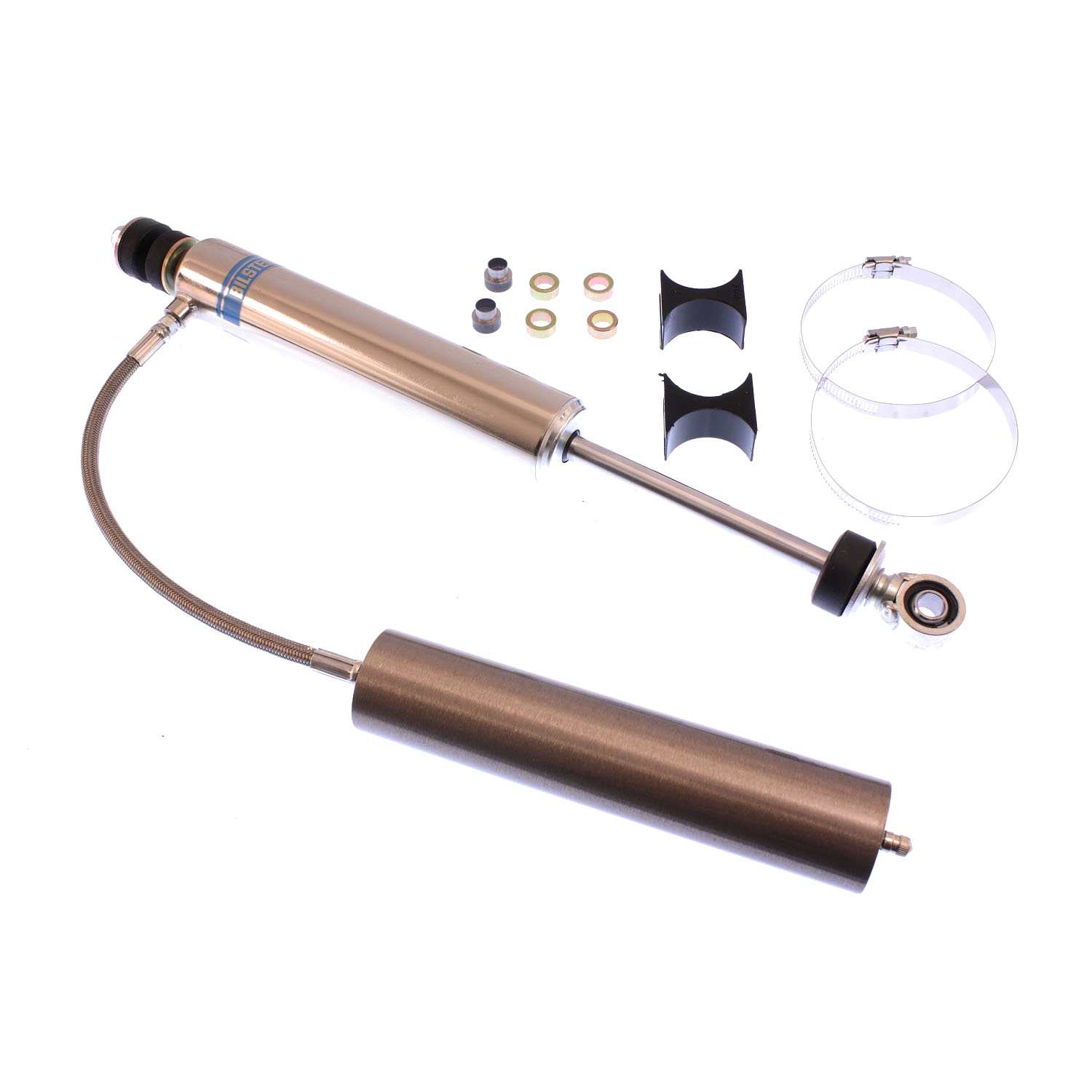

M 7100 - Suspension Shock Absorber - Bilstein - B46-1085R

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.46mm monotube design ensures consistent fade-free performance in all conditions; Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control; High-flow piston reduces harshness
Body Design: Smooth Body (Non-Coilover)
Collapsed Length (IN): 11.83
Collapsed Length (MM): 300.5
Compression @0.52m/s: 1150
Extended Length (IN): 18.46
Extended Length (MM): 468.9
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
FAB: High-flow piston reduces harshness
FAB: Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Finish: Nickel Plated with Clear Powder Coat
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
Mount Type: Stem-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 2200
Reservoir: Yes
Segment: Motorsports
Series: M 7100
Shaft Diameter (mm): 14.0
Spring Seat Included: No
Stroke/Travel Length (IN): 6.63
Stroke/Travel Length (mm): 168.4
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem
