M 7100 - Suspension Shock Absorber - Bilstein - AK7112S04

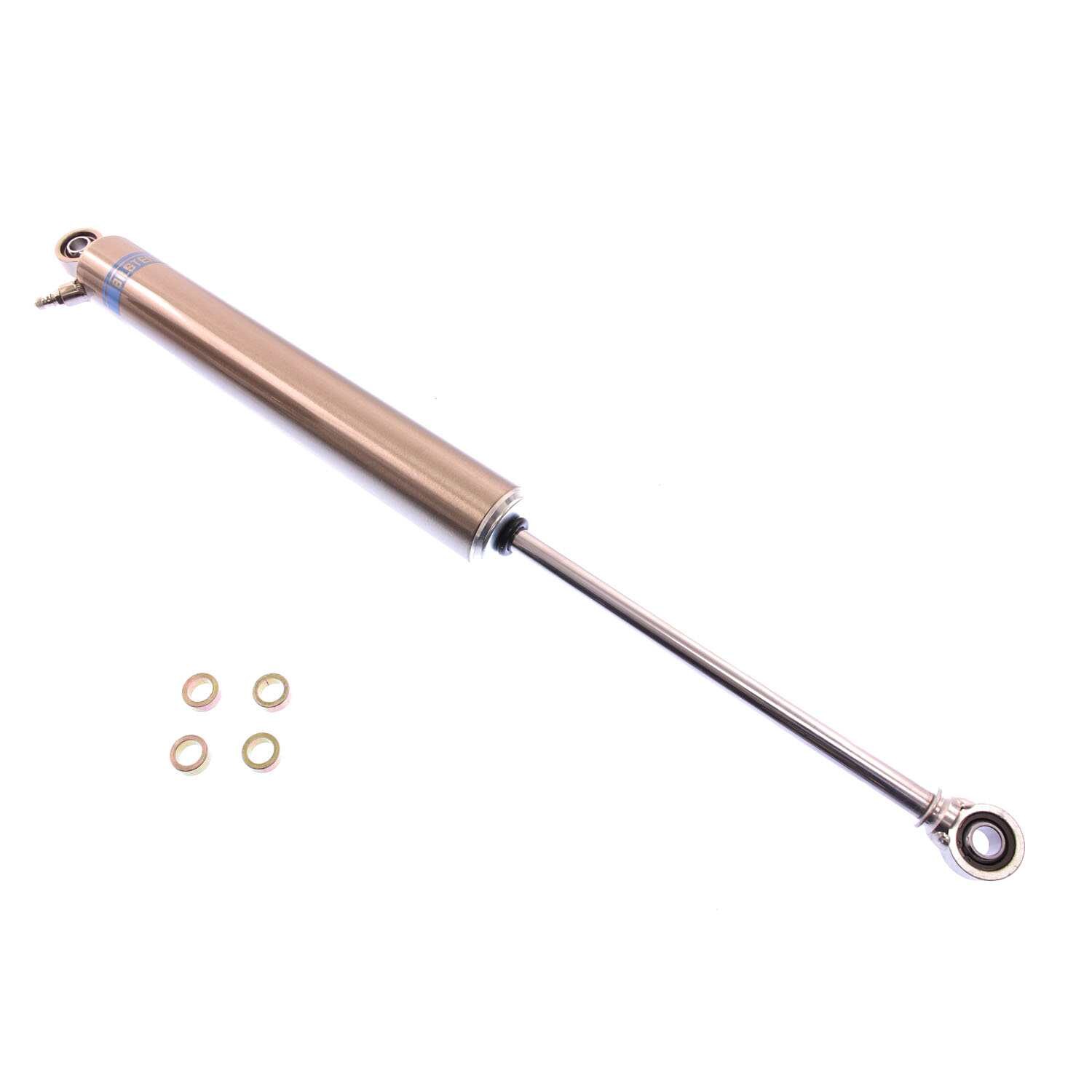

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.46mm monotube design ensures consistent fade-free performance in all conditions; Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control; High-flow piston reduces harshness
Body Design: Smooth Body (Non-Coilover)
Collapsed Length (IN): 19.53
Collapsed Length (MM): 496.1
Compression @0.52m/s: 700
Extended Length (IN): 31.10
Extended Length (MM): 789.9
FAB: High-flow piston reduces harshness
FAB: Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
FAB: 46mm monotube design ensures consistent fade-free performance in all conditions
Finish: Nickel Plated with Clear Powder Coat
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Piston Diameter: 46mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: 2550
Reservoir: No
Segment: Motorsports
Series: M 7100
Shaft Diameter (mm): 14.0
Spring Seat Included: No
Stroke/Travel Length (IN): 11.57
Stroke/Travel Length (mm): 293.9
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in Heim
