B8 6112 - Suspension Kit - Bilstein - 47-310971

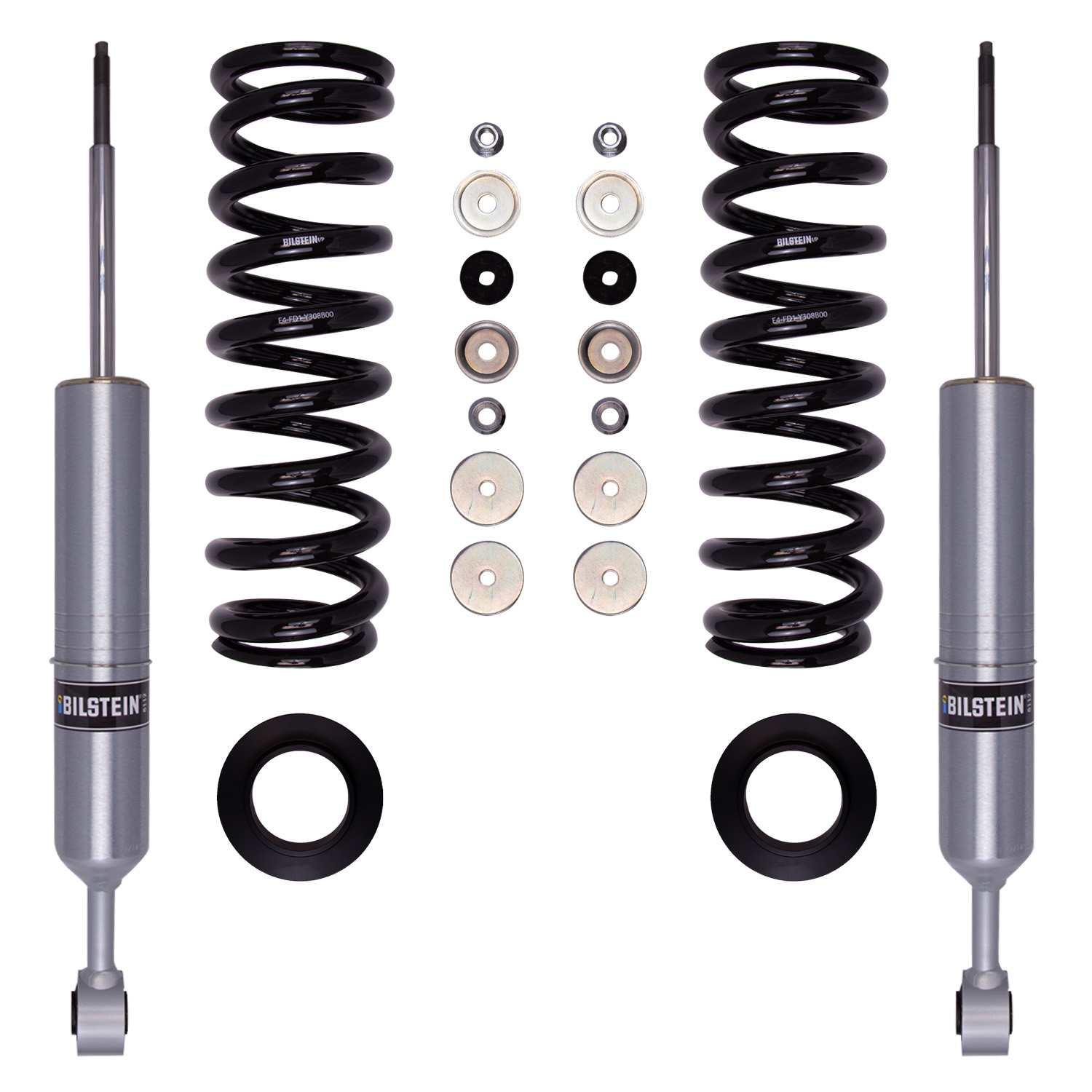

Bilstein B8 6112 leveling kits are designed to provide more ground clearance allow for larger tires and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.Large 60mm body for increased oil capacity cooling and long-term durability; 60mm digressive piston improves ride comfort and control over rough terrain; Vehicle specific tuning
Body Design: Snap Ring Grooved Body (Coilover)
Boot Included: No
Collapsed Length (IN): 17.83
Collapsed Length (mm): 452.9
Extended Length (IN): 24.02
Extended Length (mm): 610.0
FAB: Vehicle specific tuning
FAB: 60mm digressive piston improves ride comfort and control over rough terrain
FAB: Large 60mm body for increased oil capacity cooling and long-term durability
Finish: Dampers: Zinc Plated/Springs: Black
Front Main Spring Rate (lbs/in): 650
Internal Design: Monotube
PartType: Suspension Kit
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 6112
Shaft Diameter: 18mm
Spring Seat Included: Yes
Stroke/Travel Length (IN): 6.19
Stroke/Travel Length (mm): 157.1
Title: Bilstein Shock Absorbers

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2007 Toyota Tundra SR5 / Limited / Base RWD / 4WD Front 2008 Toyota Tundra SR5 / Limited / Base RWD / 4WD Front 2008 Toyota Sequoia SR5 / Limited RWD / 4WD Front 2009 Toyota Sequoia SR5 / Limited RWD / 4WD Front 2009 Toyota Tundra SR5 / Limited / Base RWD / 4WD Front 2010 Toyota Sequoia SR5 / Limited RWD / 4WD Front 2010 Toyota Tundra SR5 / Platinum / Limited / Base RWD / 4WD Front 2011 Toyota Sequoia SR5 / Limited RWD / 4WD Front 2011 Toyota Tundra SR5 / Platinum / Limited / Base RWD / 4WD Front 2012 Toyota Sequoia SR5 / Limited RWD / 4WD Front 2012 Toyota Tundra Platinum / Limited / Base RWD / 4WD Front 2013 Toyota Tundra Platinum / Limited / Base RWD / 4WD Front 2013 Toyota Sequoia SR5 / Limited RWD / 4WD Front 2014 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition RWD / 4WD Front 2014 Toyota Sequoia SR5 / Limited RWD / 4WD Front 2015 Toyota Sequoia SR5 / Limited RWD / 4WD Front 2015 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition 4WD / RWD Front 2016 Toyota Sequoia SR5 / Limited RWD / 4WD Front 2016 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition 4WD / RWD Front 2017 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition 4WD / RWD Front 2017 Toyota Sequoia SR5 / Limited RWD / 4WD Front 2018 Toyota Sequoia TRD Sport / SR5 / Limited RWD / 4WD Front 2018 Toyota Tundra SR5 / SR / Platinum / Limited / 1794 Edition RWD / 4WD Front 2019 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition RWD / 4WD Front 2019 Toyota Sequoia TRD Sport / SR5 / Limited RWD / 4WD Front 2020 Toyota Tundra TRD Pro / SR5 / SR / Platinum / Limited / 1794 Edition RWD / 4WD Front 2020 Toyota Sequoia TRD Sport / SR5 / Limited RWD / 4WD Front 2021 Toyota Sequoia TRD Sport / SR5 / Nightshade / Limited RWD / 4WD Front 2021 Toyota Tundra Trail / TRD Pro / SR5 / SR / Platinum / Nightshade / Limited / 1794 Edition 4WD / RWD Front 2022 Toyota Sequoia TRD Sport / SR5 / Nightshade / Limited RWD / 4WD Front
