B8 6112 - Suspension Kit - Bilstein - 47-309524

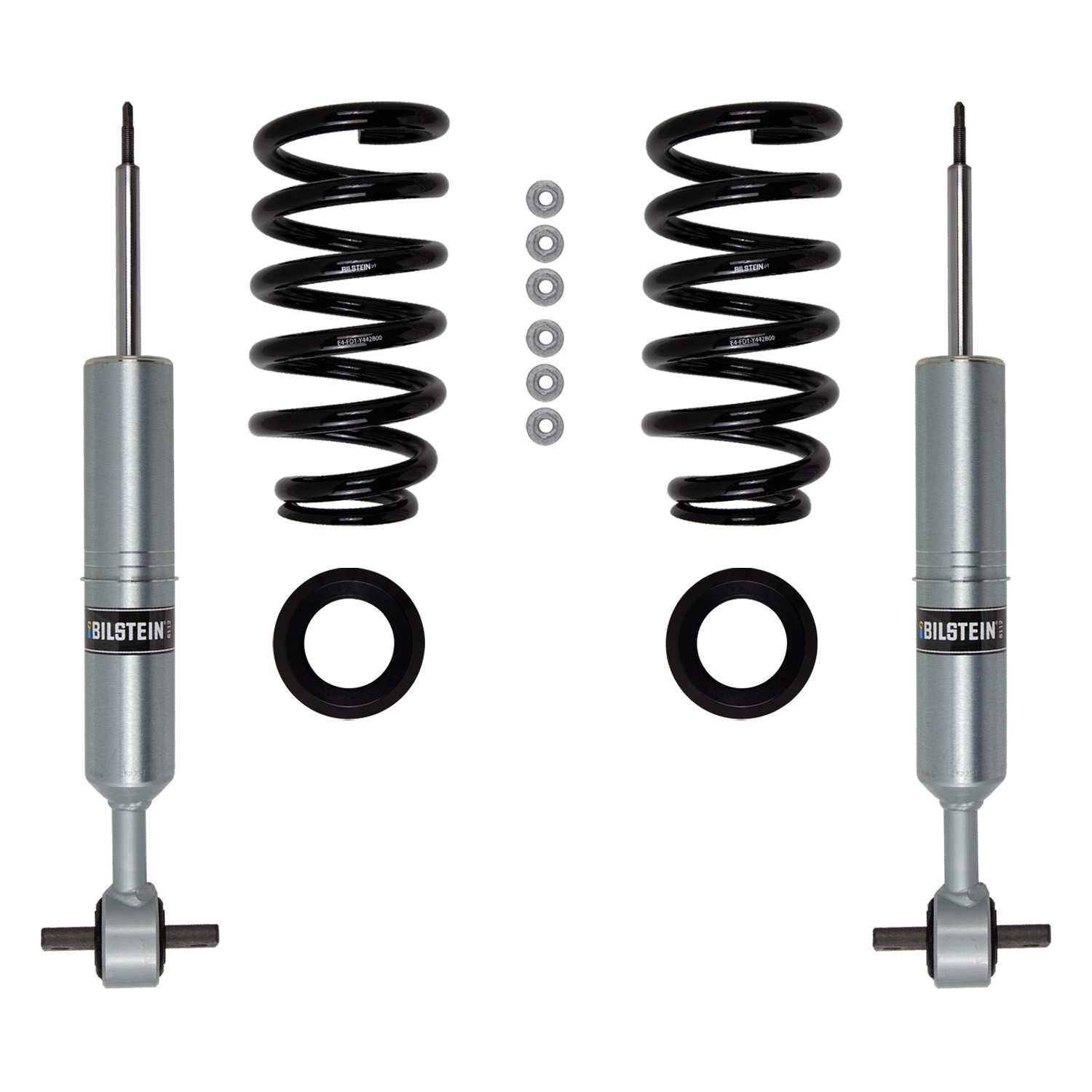

Bilstein B8 6112 leveling kits are designed to provide more ground clearance allow for larger tires and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.Large 60mm body for increased oil capacity cooling and long-term durability; 60mm digressive piston improves ride comfort and control over rough terrain; Vehicle specific tuning
Body Design: Snap Ring Grooved Body (Coilover)
Boot Included: No
Collapsed Length (IN): 17.78
Collapsed Length (mm): 451.6
Extended Length (IN): 21.97
Extended Length (mm): 558.0
FAB: Vehicle specific tuning
FAB: 60mm digressive piston improves ride comfort and control over rough terrain
FAB: Large 60mm body for increased oil capacity cooling and long-term durability
Finish: Dampers: Zinc Plated/Springs: Black
Front Main Spring Rate (lbs/in): 600
Internal Design: Monotube
PartType: Suspension Kit
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: No
Segment: Light Truck
Series: B8 6112
Shaft Diameter: 18mm
Spring Seat Included: Yes
Stroke/Travel Length (IN): 4.19
Stroke/Travel Length (mm): 106.4
Title: Bilstein Shock Absorbers

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2019 Chevrolet Silverado 1500 LT Trail Boss / Custom Trail Boss Front 2019 GMC Sierra 1500 AT4 Front 2020 GMC Sierra 1500 AT4 Front 2020 Chevrolet Silverado 1500 LT Trail Boss / Custom Trail Boss Front 2021 GMC Sierra 1500 AT4 Front 2021 Chevrolet Silverado 1500 LT Trail Boss / Custom Trail Boss Front 2022 GMC Sierra 1500 AT4 Front 2022 Chevrolet Silverado 1500 LT Trail Boss / Custom Trail Boss Front 2023 Chevrolet Silverado 1500 LT Trail Boss / Custom Trail Boss Front 2023 GMC Sierra 1500 AT4 Front 2024 GMC Sierra 1500 AT4 Front 2024 Chevrolet Silverado 1500 LT Trail Boss / Custom Trail Boss Front 2025 Chevrolet Silverado 1500 LT Trail Boss / Custom Trail Boss Front 2025 GMC Sierra 1500 AT4 Front
