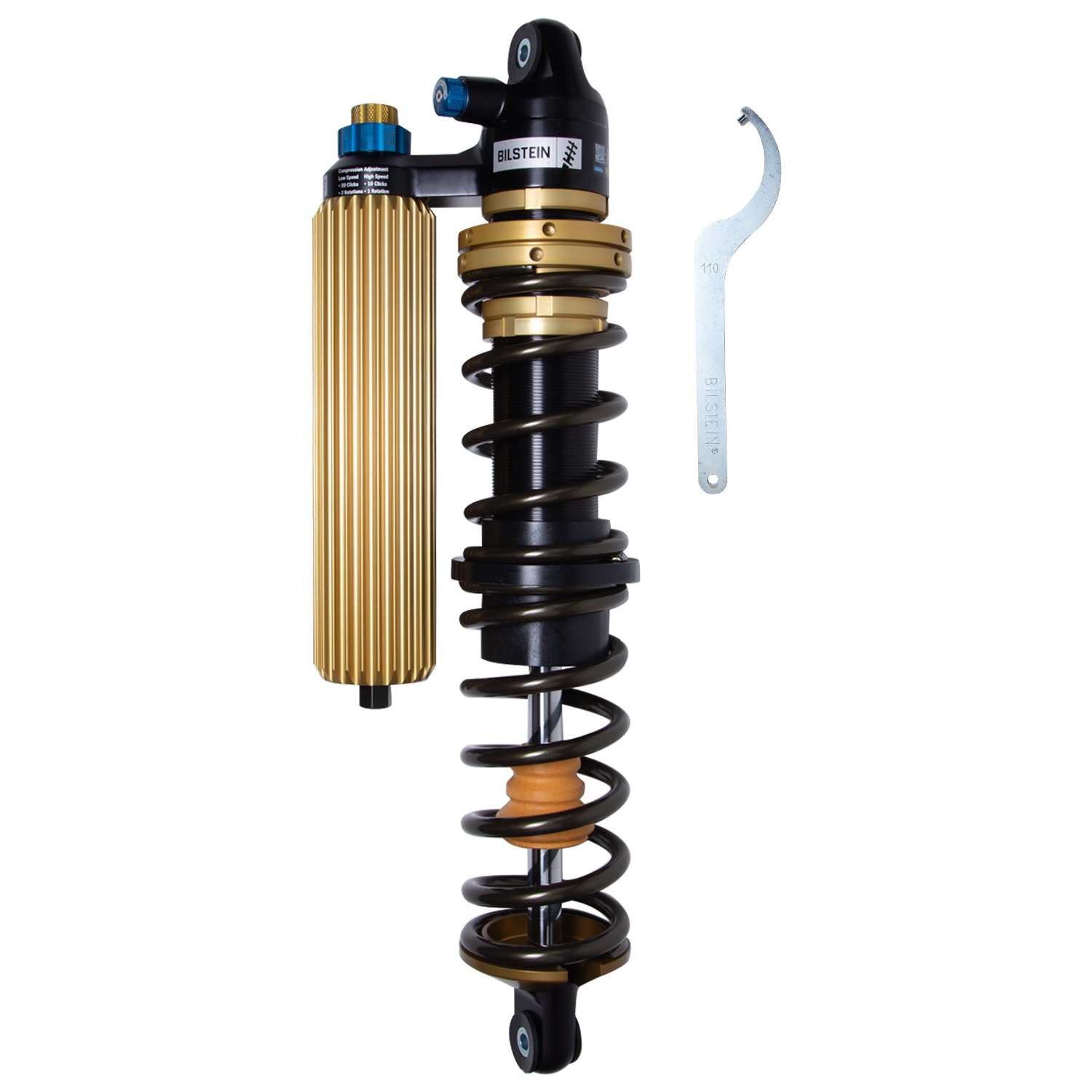

Black Hawk Powersports - Front Right Corner Module - Bilstein - 41-341797

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein-™s patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression rebound and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique -œbottomless- ride with Bilstein-™s new Black Hawk Powersports coilover packages.Zone Control CR - Position Sensitive Damping; 4-Way Adjustable Damping: Dual Speed Compression Adjustable Reservoir (High-Low Speed); Adjustable Internal Hydraulic Bump Stop (JCO); Adjustable Rebound; Direct Fit Motorsports Package
Adjustable Damping: 4-Way Adjustable - High and Low Speed Compression Rebound JCO-Jounce Cut-Off (Hydraulic Bump)
Billet Reservoir Clamp Included: Yes
Body Design: Threaded Body
Body Material: Aluminum alloy
Boot Included: No
Collapsed Length (IN): 17.56
Collapsed Length (MM): 446.0
Compression @0.52m/s: Adjustable
Extended Length (IN): 25.80
Extended Length (MM): 655.3
FAB: Direct Fit Motorsports Package
FAB: 4-Way Adjustable Damping: Dual Speed Compression Adjustable Reservoir (High-Low Speed) Adjustable Internal Hydraulic Bump Stop (JCO) Adjustable Rebound
FAB: Zone Control CR - Position Sensitive Damping
Finish: Type III Hard Anodized
Internal Design: Monotube
Lower Mount Type: Eye 12mm (ID)
Make: Polaris
Model: RZR Turbo S
PartType: Shocks / Struts
Piston Diameter: 60mm
Position: Front Right
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: Adjustable
Reservoir: Yes
Segment: Motorsports
Series: Black Hawk Powersports
Shaft Diameter (mm): 22.0
Stroke/Travel Length (IN): 8.24
Stroke/Travel Length (mm): 209.3
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 12mm (ID)

Detailed Fitment Results
Year Make Model Sub Model Position 2019 Polaris RZR XP 4 Turbo S Base Front Right 2020 Polaris RZR XP 4 Turbo S Base Front Right 2020 Polaris RZR XP 4 Turbo S Velocity Base Front Right 2021 Polaris RZR Turbo S4 Base Front Right 2021 Polaris RZR Turbo S4 Lifted Lime LE Base Front Right 2021 Polaris RZR Turbo S4 Velocity Base Front Right 2021 Polaris RZR XP 4 Turbo S Base Front Right 2021 Polaris RZR XP 4 Turbo S Velocity Base Front Right 2022 Polaris RZR Turbo S4 Velocity Base Front Right 2022 Polaris RZR Turbo S4 Base Front Right
