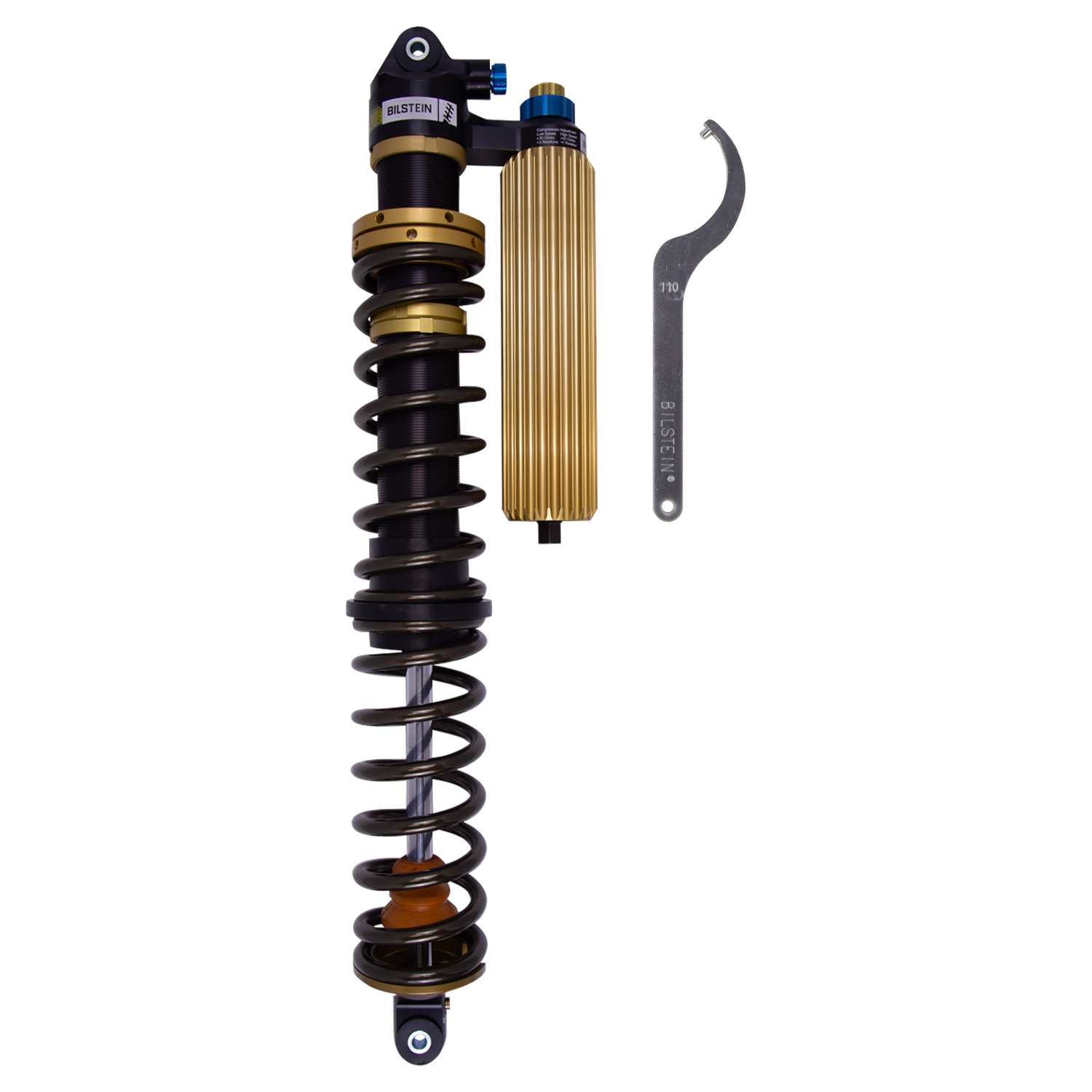

Black Hawk Powersports - Front Right Corner Module - Bilstein - 41-338124

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein-™s patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression rebound and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique -œbottomless- ride with Bilstein-™s new Black Hawk Powersports coilover packages.Zone Control CR - Position Sensitive Damping; 4-Way Adjustable Damping: Dual Speed Compression Adjustable Reservoir (High-Low Speed); Adjustable Internal Hydraulic Bump Stop (JCO); Adjustable Rebound; Direct Fit Motorsports Package
Adjustable Damping: 4-Way Adjustable - High and Low Speed Compression Rebound JCO-Jounce Cut-Off (Hydraulic Bump)
Body Design: Threaded Body
Body Material: Aluminum alloy
Boot Included: No
Collapsed Length (IN): 20.40
Collapsed Length (MM): 518.2
Compression @0.52m/s: Adjustable
Extended Length (IN): 31.88
Extended Length (MM): 809.7
FAB: Direct Fit Motorsports Package
FAB: 4-Way Adjustable Damping: Dual Speed Compression Adjustable Reservoir (High-Low Speed) Adjustable Internal Hydraulic Bump Stop (JCO) Adjustable Rebound
FAB: Zone Control CR - Position Sensitive Damping
Finish: Type III Hard Anodized
Internal Design: Monotube
Lower Mount Type: Eye 12mm (ID)
Make: Can-Am
Model: Maverick X3
PartType: Shocks / Struts
Piston Diameter: 60mm
Position: Front Right
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s: Adjustable
Reservoir: Yes
Segment: Motorsports
Series: Black Hawk Powersports
Shaft Diameter (mm): 22.0
Stroke/Travel Length (IN): 11.48
Stroke/Travel Length (mm): 291.6
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 12mm (ID)

Detailed Fitment Results
Year Make Model Sub Model Position 2017 Can-Am Maverick X3 Max X rs Turbo R Base Front Right 2017 Can-Am Maverick X3 Max Turbo R Base Front Right 2018 Can-Am Maverick X3 Max Turbo Base Front Right 2018 Can-Am Maverick X3 Max Turbo R Base Front Right 2018 Can-Am Maverick X3 Max X rs Turbo R Base Front Right 2019 Can-Am Maverick X3 Max Turbo Base Front Right 2019 Can-Am Maverick X3 Max Turbo R Base Front Right 2019 Can-Am Maverick X3 Max X rs Turbo R Base Front Right 2020 Can-Am Maverick X3 Max RS Turbo R Base Front Right 2020 Can-Am Maverick X3 Max Turbo Base Front Right 2020 Can-Am Maverick X3 Max X mr Turbo RR Base Front Right 2020 Can-Am Maverick X3 Max X rs Turbo RR Base Front Right 2021 Can-Am Maverick X3 Max RS Turbo R Base Front Right 2021 Can-Am Maverick X3 Max X mr Turbo RR Base Front Right 2021 Can-Am Maverick X3 Max X rs Turbo RR Base Front Right 2021 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox Base Front Right 2022 Can-Am Maverick X3 Max X mr Turbo RR Base Front Right 2022 Can-Am Maverick X3 Max X rs Turbo RR Base Front Right 2022 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox Base Front Right 2022 Can-Am Maverick X3 Max RS Turbo RR Base Front Right 2023 Can-Am Maverick X3 Max RS Turbo RR Base Front Right 2023 Can-Am Maverick X3 Max X mr Turbo RR Base Front Right 2023 Can-Am Maverick X3 Max X rs Turbo RR Base Front Right 2023 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox Base Front Right 2024 Can-Am Maverick X3 Max RS Turbo RR Base Front Right 2024 Can-Am Maverick X3 Max X mr Turbo RR Base Front Right 2024 Can-Am Maverick X3 Max X rs Turbo RR Base Front Right 2024 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox Base Front Right
