B8 8112 (ZoneControl CR) - Front Right Corner Module - Bilstein - 41-326725

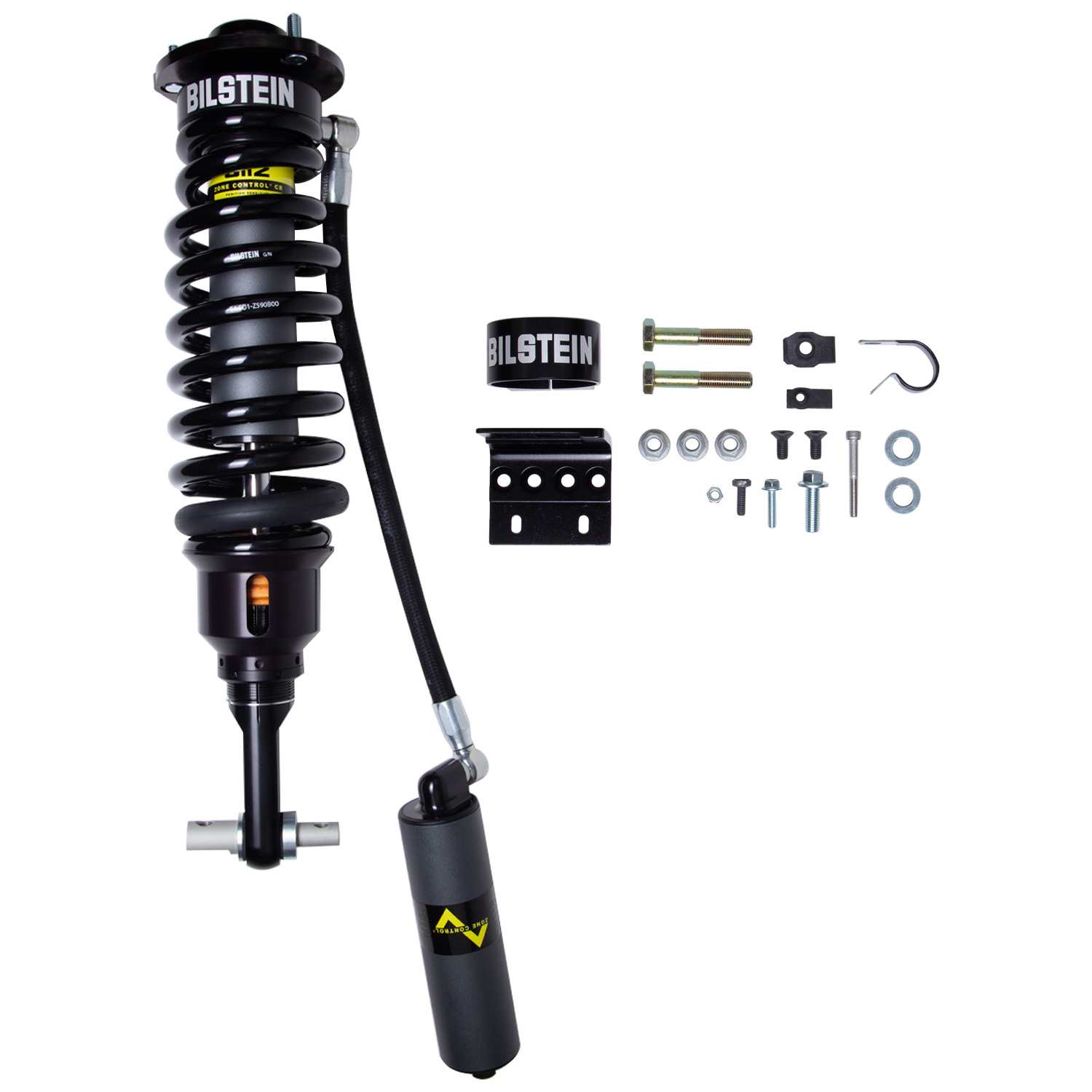

Bilstein B8 8112 (ZoneControl CR) is a direct fit 2.65-in body position sensitive coilover shock designed for light trucks and SUV-™s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8- (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons; Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs; 60mm remote reservoir for increased oil capacity and cooling
Adjustable Damping: Non-Adjustable
Aftermarket Upper Arms Required: Yes
Body Design: Smooth Body (Coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 18.45
Collapsed Length (MM): 468.7
Extended Length (IN): 23.22
Extended Length (MM): 589.8
FAB: Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
FAB: ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
FAB: 60mm remote reservoir for increased oil capacity and cooling
Finish: Dampers: EVO Grey/Springs: Black
Front Main Spring Rate (lbs/in): 500 lbs
Internal Design: Monotube
Lower Mount Type: Crossbar
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 8112 (ZoneControl CR)
Shaft Diameter (mm): 22.0
Spring Seat Included: Yes
Title: Bilstein Shock Absorbers
Upper Mount Type: Special

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2015 Ford F-150 XLT / XL / Lariat / Platinum / King Ranch Extended Cab Pickup / Crew Cab Pickup 4WD Front Right 2016 Ford F-150 XL / Lariat / Platinum / Limited / King Ranch / XLT Crew Cab Pickup / Extended Cab Pickup 4WD Front Right 2017 Ford F-150 XLT / XL / Lariat / Platinum / Limited / King Ranch Extended Cab Pickup / Crew Cab Pickup 4WD Front Right 2018 Ford F-150 Platinum / King Ranch / XLT / XL / Lariat / Limited Extended Cab Pickup / Crew Cab Pickup 4WD Front Right 2019 Ford F-150 Platinum / King Ranch / XLT / XL / Lariat / Limited Extended Cab Pickup / Crew Cab Pickup 4WD Front Right 2020 Ford F-150 XLT / XL / Platinum / Lariat / King Ranch / Limited Extended Cab Pickup / Crew Cab Pickup 4WD Front Right 2021 Ford F-150 XLT / XL / Platinum / Limited / Lariat / King Ranch / Tremor Extended Cab Pickup / Crew Cab Pickup 4WD Front Right 2022 Ford F-150 XLT / XL / Platinum / Limited / Lariat / King Ranch / Tremor Extended Cab Pickup / Crew Cab Pickup 4WD Front Right 2023 Ford F-150 Lariat / King Ranch / XLT / XL / Tremor / Platinum / Limited Extended Cab Pickup / Crew Cab Pickup 4WD Front Right
