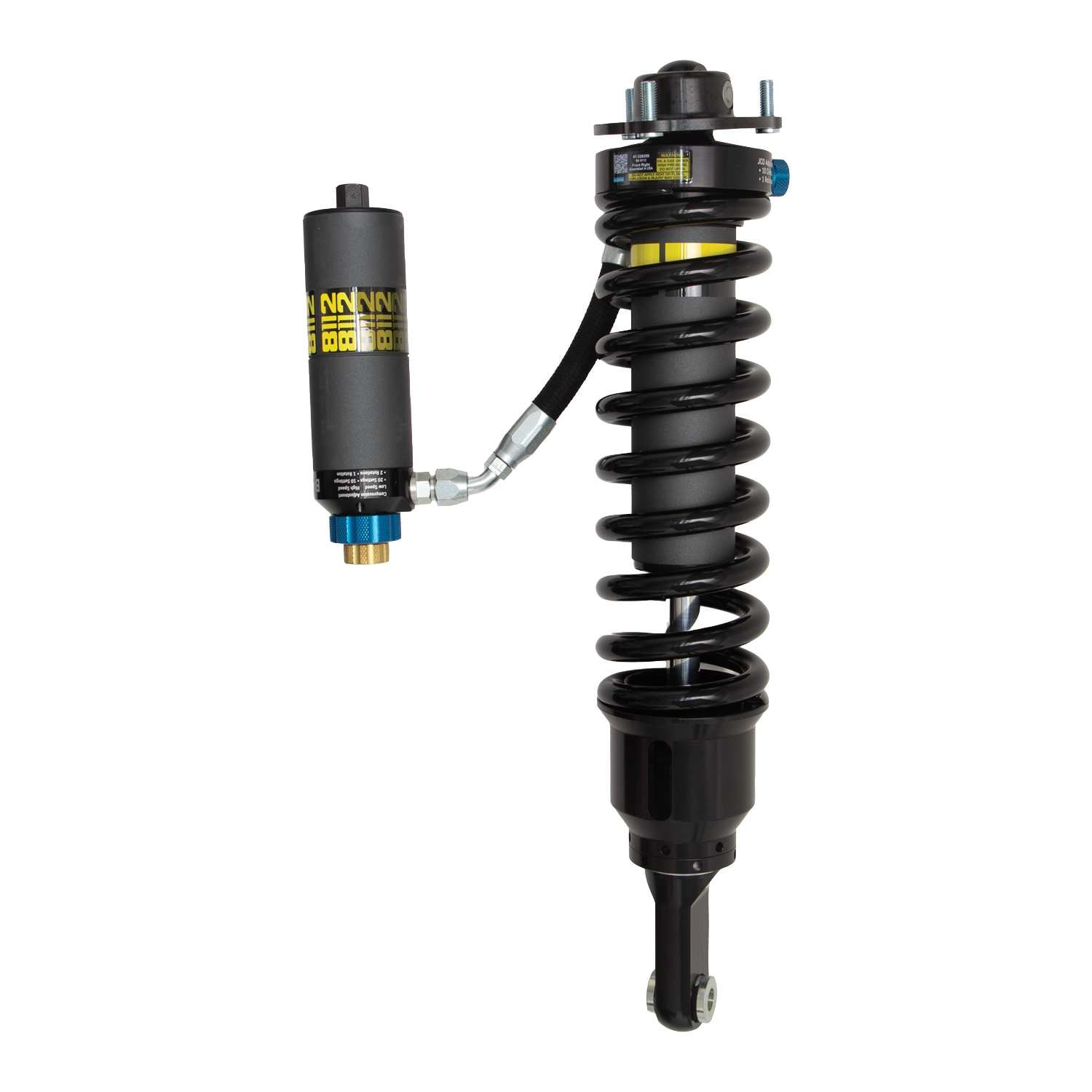

B8 8112 (ZoneControl CR DSA+) - Front Right Corner Module - Bilstein - 41-326350

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit 3-way adjustable 2.65-in body position sensitive coilover shock designed for light trucks and SUV-™s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3- (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons; Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop); 60mm remote reservoir for increased oil capacity and cooling
Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Body Design: Smooth Body (Coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 17.43
Collapsed Length (mm): 442.6
Extended Length (IN): 22.24
Extended Length (mm): 564.8
FAB: ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
FAB: Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
FAB: 60mm remote reservoir for increased oil capacity and cooling
Finish: Dampers: EVO Grey/Springs: Black
Front Main Spring Rate (lbs/in): 600
Internal Design: Monotube
Lower Mount Type: Eye 14.1mm
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 8112 (ZoneControl CR DSA+)
Shaft Diameter (mm): 22.0
Spring Seat Included: Yes
Title: Bilstein Shock Absorbers
Upper Mount Type: Special

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2003 Lexus GX470 Base Front Right 2003 Toyota 4Runner SR5 / Limited 4WD / RWD Front Right 2004 Lexus GX470 Base Front Right 2004 Toyota 4Runner SR5 / Limited 4WD / RWD Front Right 2005 Lexus GX470 Base Front Right 2005 Toyota 4Runner SR5 / Limited 4WD / RWD Front Right 2006 Lexus GX470 Base Front Right 2006 Toyota 4Runner SR5 / Limited 4WD / RWD Front Right 2007 Toyota FJ Cruiser TRD Special Edition / Base 4WD Front Right 2007 Toyota 4Runner SR5 / Limited 4WD / RWD Front Right 2007 Lexus GX470 Base Front Right 2008 Lexus GX470 Base Front Right 2008 Toyota 4Runner SR5 / Limited 4WD / RWD Front Right 2008 Toyota FJ Cruiser Trail Teams Special Edition / Base 4WD Front Right 2009 Toyota FJ Cruiser Base 4WD Front Right 2009 Lexus GX470 Base Front Right 2009 Toyota 4Runner SR5 / Limited 4WD / RWD Front Right
