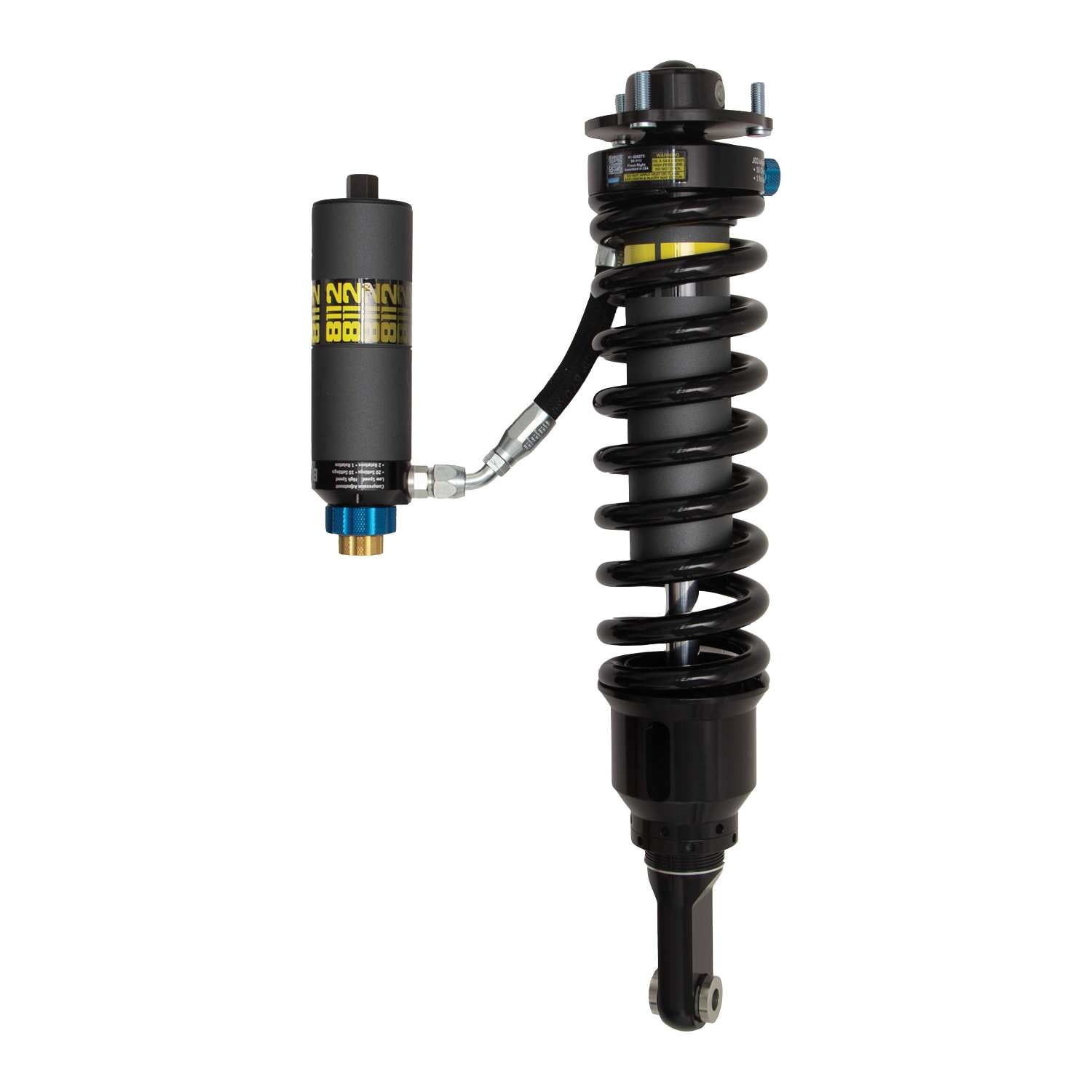

B8 8112 (ZoneControl CR DSA+) - Front Right Corner Module - Bilstein - 41-326275

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit 3-way adjustable 2.65-in body position sensitive coilover shock designed for light trucks and SUV-™s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3- (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons; Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop); 60mm remote reservoir for increased oil capacity and cooling
Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Body Design: Smooth Body (Coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 17.43
Collapsed Length (mm): 442.6
Extended Length (IN): 22.24
Extended Length (mm): 564.8
FAB: ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
FAB: Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
FAB: 60mm remote reservoir for increased oil capacity and cooling
Finish: Dampers: EVO Grey/Springs: Black
Front Main Spring Rate (lbs/in): 600
Internal Design: Monotube
Lower Mount Type: Eye 14.1mm
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 8112 (ZoneControl CR DSA+)
Shaft Diameter (mm): 22.0
Spring Seat Included: Yes
Title: Bilstein Shock Absorbers
Upper Mount Type: Special

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2010 Toyota 4Runner Trail / SR5 RWD / 4WD Front Right 2010 Toyota FJ Cruiser Base 4WD Front Right 2011 Toyota 4Runner Trail / SR5 RWD / 4WD Front Right 2011 Toyota FJ Cruiser Base 4WD Front Right 2012 Toyota FJ Cruiser Base 4WD Front Right 2012 Toyota 4Runner Trail / SR5 RWD / 4WD Front Right 2013 Toyota FJ Cruiser Base 4WD Front Right 2013 Toyota 4Runner Trail / SR5 RWD / 4WD Front Right 2014 Toyota FJ Cruiser Base 4WD Front Right 2014 Toyota 4Runner Trail / SR5 RWD / 4WD Front Right 2015 Toyota 4Runner Trail / TRD Pro / SR5 RWD / 4WD Front Right 2016 Toyota 4Runner Trail / TRD Pro / SR5 RWD / 4WD Front Right 2017 Toyota 4Runner TRD Pro / TRD Off-Road / SR5 RWD / 4WD Front Right 2018 Toyota 4Runner TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium RWD / 4WD Front Right 2019 Toyota 4Runner TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium RWD / 4WD Front Right 2020 Toyota 4Runner Venture / TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium RWD / 4WD Front Right 2021 Toyota 4Runner Venture / Trail / TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium RWD / 4WD Front Right 2022 Toyota 4Runner Venture / Trail / TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium RWD / 4WD Front Right 2023 Toyota 4Runner TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium / 40th Anniversary Edition RWD / 4WD Front Right 2024 Toyota 4Runner TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium RWD / 4WD Front Right
