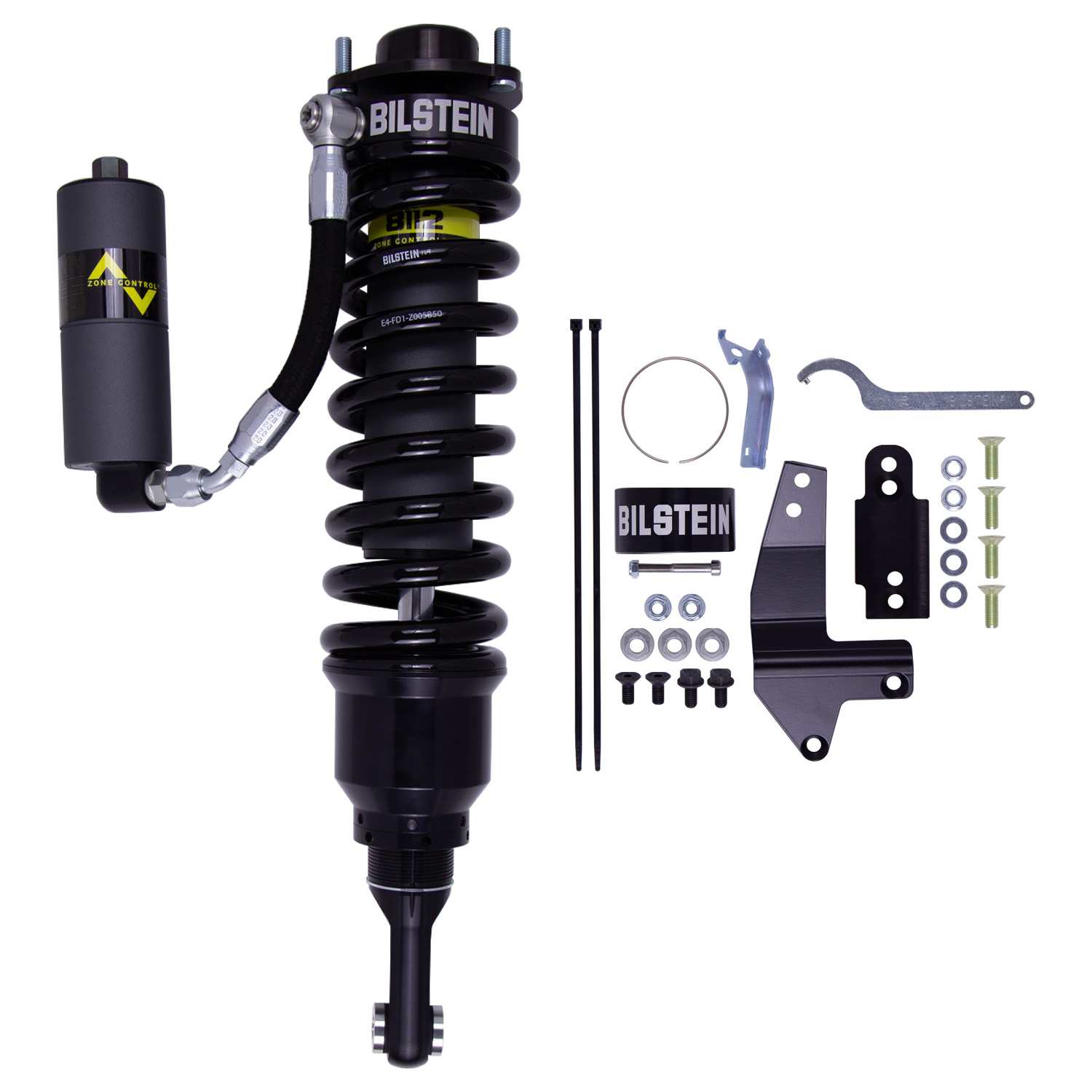

B8 8112 (ZoneControl CR) - Front Left Corner Module - Bilstein - 41-324172

Bilstein B8 8112 (ZoneControl CR) is a direct fit 2.65-in body position sensitive coilover shock designed for light trucks and SUV-™s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8- (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons; Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs; 60mm remote reservoir for increased oil capacity and cooling
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 17.99
Collapsed Length (MM): 456.9
Extended Length (IN): 22.80
Extended Length (MM): 579.1
FAB: Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
FAB: ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
FAB: 60mm remote reservoir for increased oil capacity and cooling
Finish: Dampers: EVO Grey / Springs: Black
Front Main Spring Rate (lbs/in): 600 lbs
Internal Design: Monotube
Lower Mount Type: Eye 14.1mm
Optional Heavy Load Springs: 53-291387 53-332837
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 8112 (ZoneControl CR)
Shaft Diameter (mm): 22.0
Spring Seat Included: Yes
Title: Bilstein Shock Absorbers
Upper Mount Type: Special

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2010 Toyota 4Runner Trail / SR5 RWD / 4WD Front Left 2010 Toyota FJ Cruiser Base 4WD Front Left 2011 Toyota 4Runner Trail / SR5 RWD / 4WD Front Left 2011 Toyota FJ Cruiser Base 4WD Front Left 2012 Toyota FJ Cruiser Base 4WD Front Left 2012 Toyota 4Runner Trail / SR5 RWD / 4WD Front Left 2013 Toyota FJ Cruiser Base 4WD Front Left 2013 Toyota 4Runner Trail / SR5 RWD / 4WD Front Left 2014 Toyota FJ Cruiser Base 4WD Front Left 2014 Toyota 4Runner Trail / SR5 RWD / 4WD Front Left 2015 Toyota 4Runner Trail / TRD Pro / SR5 RWD / 4WD Front Left 2016 Toyota 4Runner Trail / TRD Pro / SR5 RWD / 4WD Front Left 2017 Toyota 4Runner TRD Pro / TRD Off-Road / SR5 RWD / 4WD Front Left 2018 Toyota 4Runner TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium RWD / 4WD Front Left 2019 Toyota 4Runner TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium RWD / 4WD Front Left 2020 Toyota 4Runner Venture / TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium RWD / 4WD Front Left 2021 Toyota 4Runner Venture / Trail / TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium RWD / 4WD Front Left 2022 Toyota 4Runner SR5 Premium / Venture / Trail / TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 RWD / 4WD Front Left 2023 Toyota 4Runner TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium / 40th Anniversary Edition RWD / 4WD Front Left 2024 Toyota 4Runner TRD Pro / TRD Off-Road / TRD Off-Road Premium / SR5 / SR5 Premium RWD / 4WD Front Left
