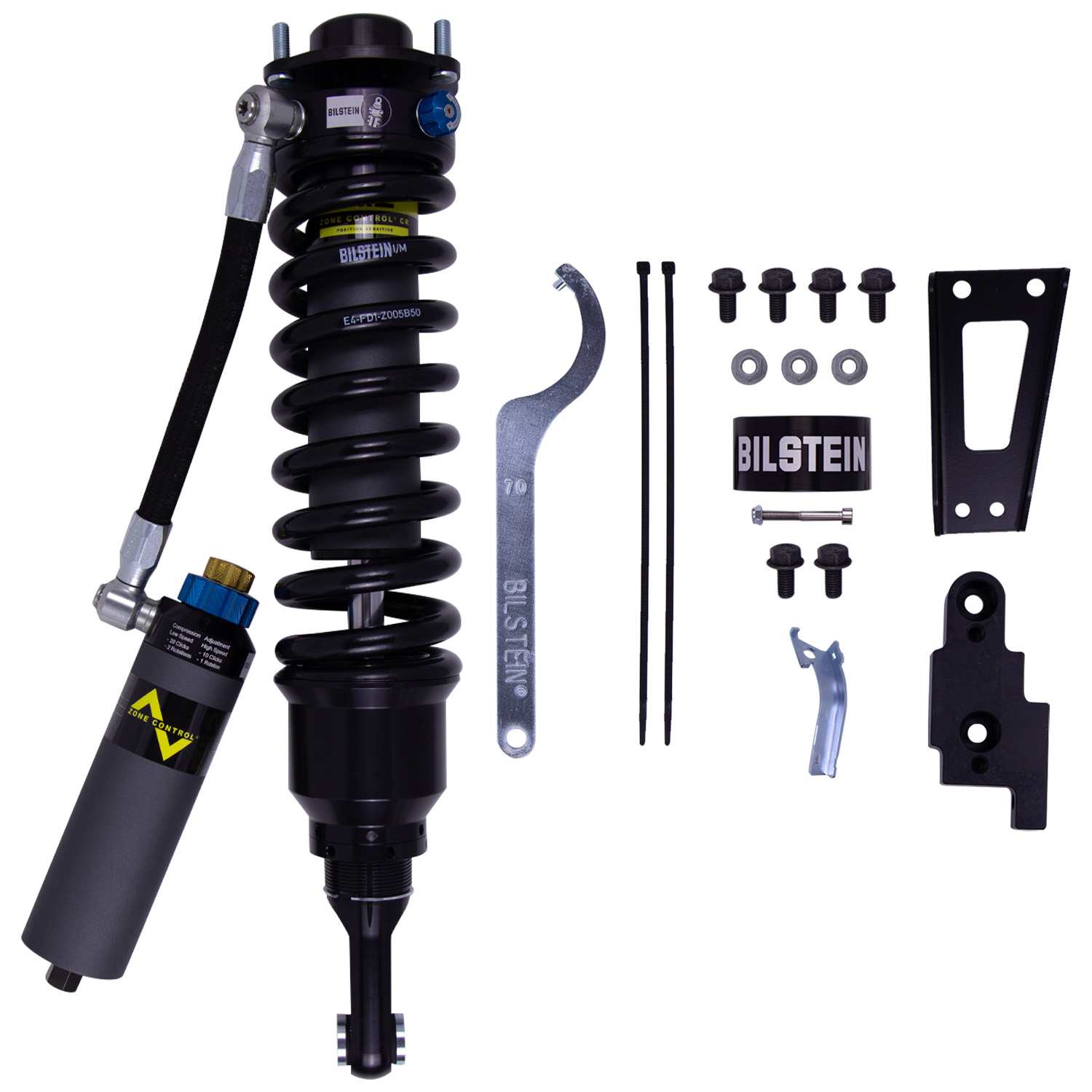

B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module - Bilstein - 41-319574

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit 3-way adjustable 2.65-in body position sensitive coilover shock designed for light trucks and SUV-™s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3- (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons; Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop); 60mm remote reservoir for increased oil capacity and cooling
Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Aftermarket Upper Arms Required: Yes
Body Design: Smooth Body (Coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 17.43
Collapsed Length (MM): 442.6
Extended Length (IN): 22.39
Extended Length (MM): 568.8
FAB: Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
FAB: ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
FAB: 60mm remote reservoir for increased oil capacity and cooling
Finish: Dampers: EVO Grey/Springs: Black
Front Main Spring Rate (lbs/in): 600 lbs
Internal Design: Monotube
Lower Mount Type: Eye 15.88mm
Optional Heavy Load Springs: 53-291387 53-332837
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes
Segment: Light Truck
Series: B8 8112 (ZoneControl CR DSA+)
Shaft Diameter (mm): 22.0
Spring Seat Included: Yes
Title: Bilstein Shock Absorbers
Upper Mount Type: Special

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2005 Toyota Tacoma Pre Runner / Base 4WD Front Left 2006 Toyota Tacoma Pre Runner / Base 4WD Front Left 2007 Toyota Tacoma Pre Runner / Base 4WD Front Left 2008 Toyota Tacoma Pre Runner / Base 4WD Front Left 2009 Toyota Tacoma Pre Runner / Base 4WD Front Left 2010 Toyota Tacoma Pre Runner / Base 4WD Front Left 2011 Toyota Tacoma Pre Runner / Base 4WD Front Left 2012 Toyota Tacoma Pre Runner / Base 4WD Front Left 2013 Toyota Tacoma Pre Runner / Base 4WD Front Left 2014 Toyota Tacoma Pre Runner / Base 4WD Front Left 2015 Toyota Tacoma TRD Pro / Pre Runner / Base 4WD Front Left 2016 Toyota Tacoma TRD Sport / TRD Off-Road / SR5 / SR / Limited RWD / 4WD Front Left 2017 Toyota Tacoma TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Limited RWD / 4WD Front Left 2018 Toyota Tacoma TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Limited RWD / 4WD Front Left 2019 Toyota Tacoma TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Limited RWD / 4WD Front Left 2020 Toyota Tacoma TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Limited RWD / 4WD Front Left 2021 Toyota Tacoma Trail / TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Nightshade / Limited RWD / 4WD Front Left 2022 Toyota Tacoma TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Nightshade / Limited RWD / 4WD Front Left 2023 Toyota Tacoma Trail Special Edition / TRD Sport / TRD Pro / TRD Off-Road / SR5 / SR / Limited 4WD / RWD Front Left
