B8 8112 Black Hawk - Front Right Corner Module - Bilstein - 41-314227

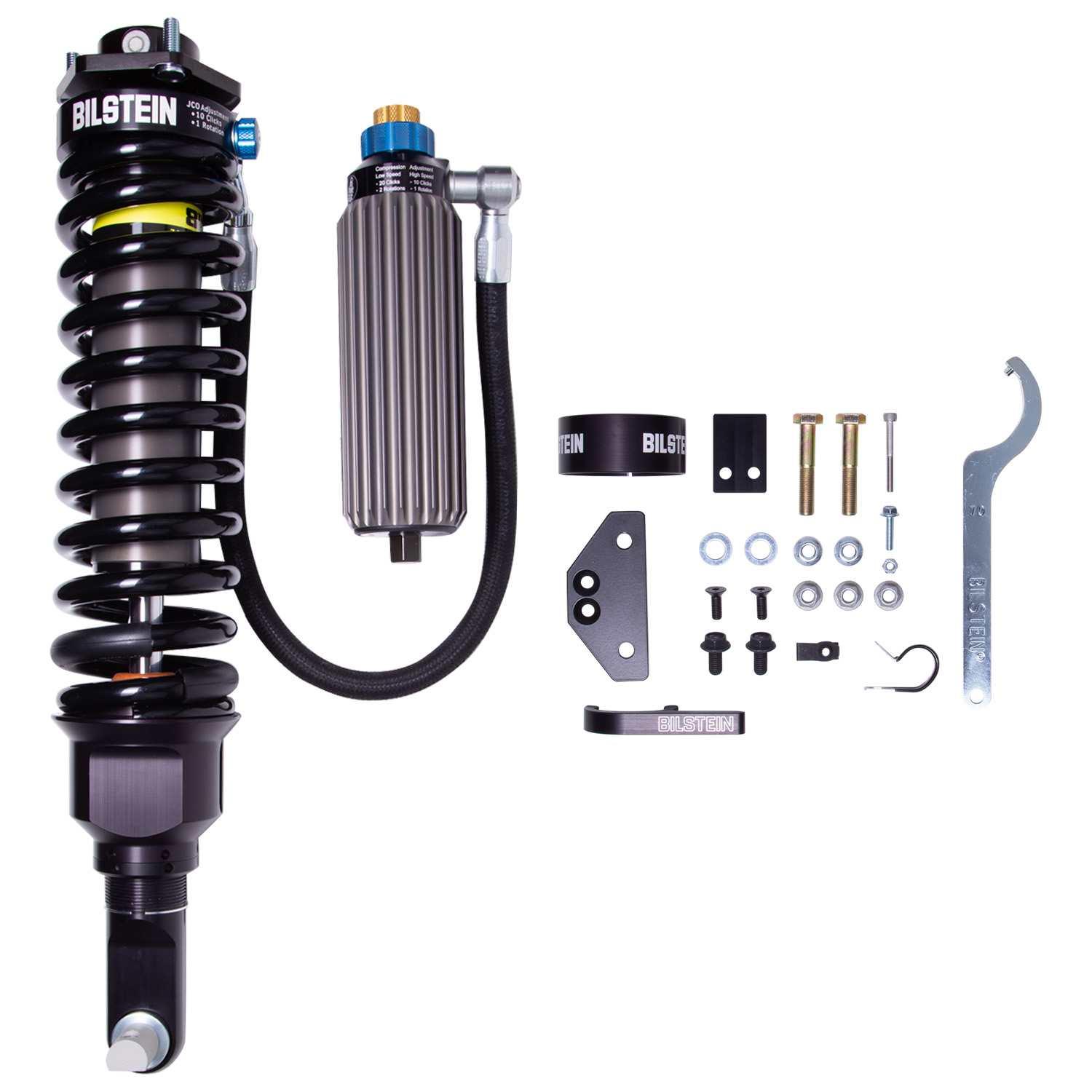

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit feature packed solutions for trucks and SUVs. The large 2.65- OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound. Plus 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option. The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you-™re driving rugged trails or paved roads fully loaded or unloaded the B8 8112 Black Hawk offers the -œbest in class- ride experience.Aluminum 2.65" body with finned aluminum remote reservoir for increased oil capacity and cooling; ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons; Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop
Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Aftermarket Upper Arms Required: Yes
Body Design: Smooth Body (Coilover)
Body Material: Aluminum
Boot Included: No
Collapsed Length (IN): 17.59
Collapsed Length (MM): 446.2
Extended Length (IN): 23.40
Extended Length (MM): 594.7
FAB: Aluminum 2.65 inch body with finned aluminum remote reservoir for increased oil capacity and cooling
FAB: Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop
FAB: ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones controlled by 3 independent pistons
Finish: Dampers: EVO Grey/Springs: Black
Front Main Spring Rate (lbs/in): 400
Internal Design: Monotube
Lower Mount Type: Crossbar
PartType: Shocks / Struts
Piston Diameter: 60mm
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reservoir: Yes - Finned Aluminum
Segment: Light Truck
Series: B8 8112 Black Hawk
Shaft Diameter (mm): 22.0
Spring Seat Included: Yes
Title: Bilstein Shock Absorbers
Upper Mount Type: Special

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Position 2021 Ford Bronco Wildtrak / Outer Banks / First Edition / Black Diamond / Big Bend / Base / Badlands Front Right 2022 Ford Bronco Wildtrak / Outer Banks / Everglades / Black Diamond / Big Bend / Base / Badlands Front Right 2023 Ford Bronco Wildtrak / Outer Banks / Heritage Limited Edition / Heritage Edition / Everglades / Black Diamond / Big Bend / Base / Badlands Front Right 2024 Ford Bronco Wildtrak / Outer Banks / Heritage Limited Edition / Heritage Edition / Everglades / Black Diamond / Big Bend / Badlands Front Right 2025 Ford Bronco Outer Banks / Heritage Edition / Big Bend / Base / Badlands / Stroppe Edition Front Right
