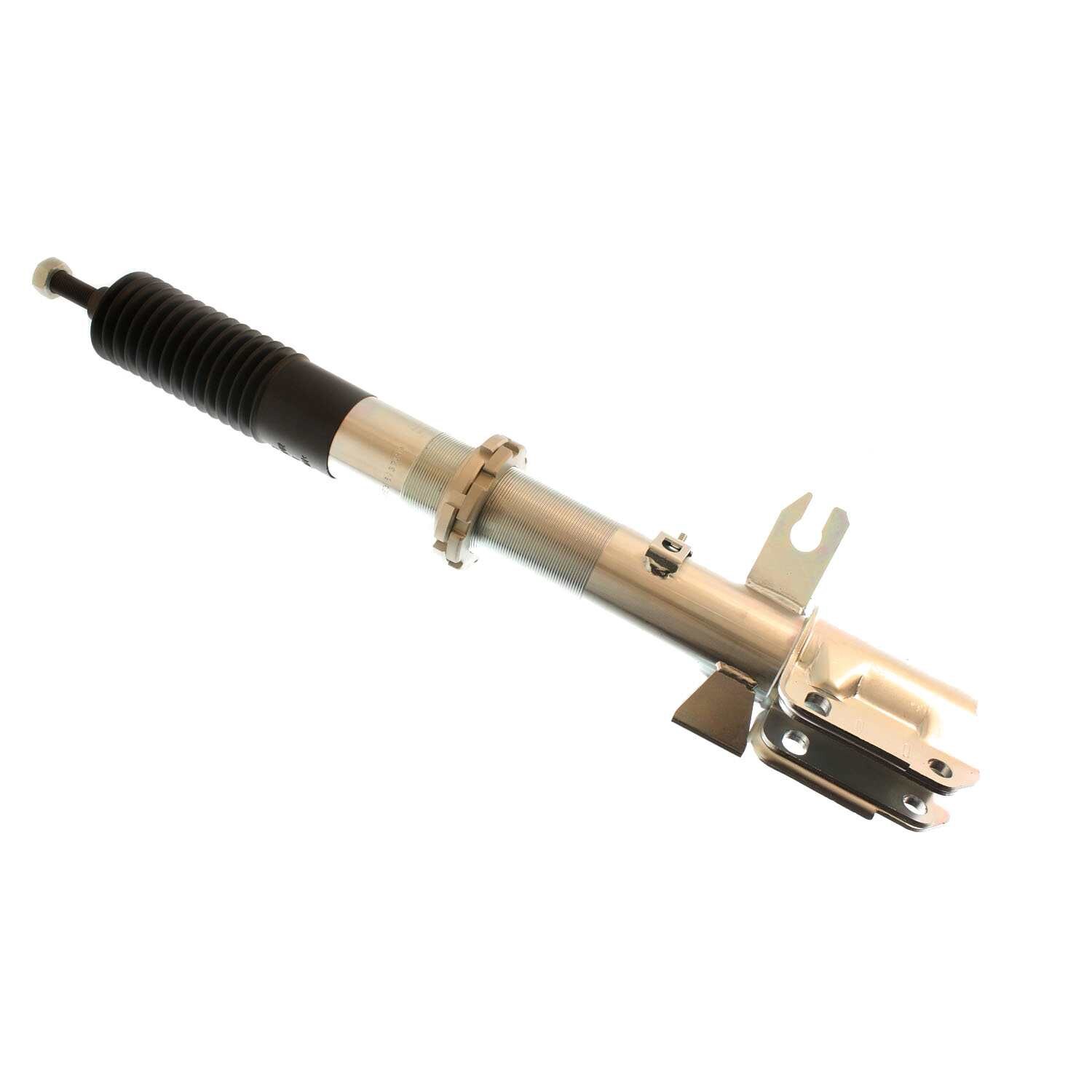

Motorsports - Suspension Strut Assembly - Bilstein - 35-593744

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.Monotube design ensures consistent fade-free performance in all conditions; Larger working piston with deflective disc valving; Available in steel and aluminum bodies
Adjustable Damping: Non-Adjustable
Body Design: Threaded Body (Coilover)
Body Material: Steel
Boot Included: Black Bellows
Collapsed Length (IN): 16.61
Collapsed Length (MM): 422.0
Compression @0.26m/s: 1440
Extended Length (IN): 20.53
Extended Length (MM): 521.5
FAB: Larger working piston with deflective disc valving
FAB: Monotube design ensures consistent fade-free performance in all conditions
FAB: Available in steel and aluminum bodies
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Bracket
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Digressive
Position: Front
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.26m/s: 5370
Segment: Motorsports
Series: Motorsports
Shaft Diameter: 11mm
Spring Hardware: N/A
Spring Seat Included: Yes
Stroke/Travel Length (IN): 3.92
Stroke/Travel Length (mm): 99.6
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem
