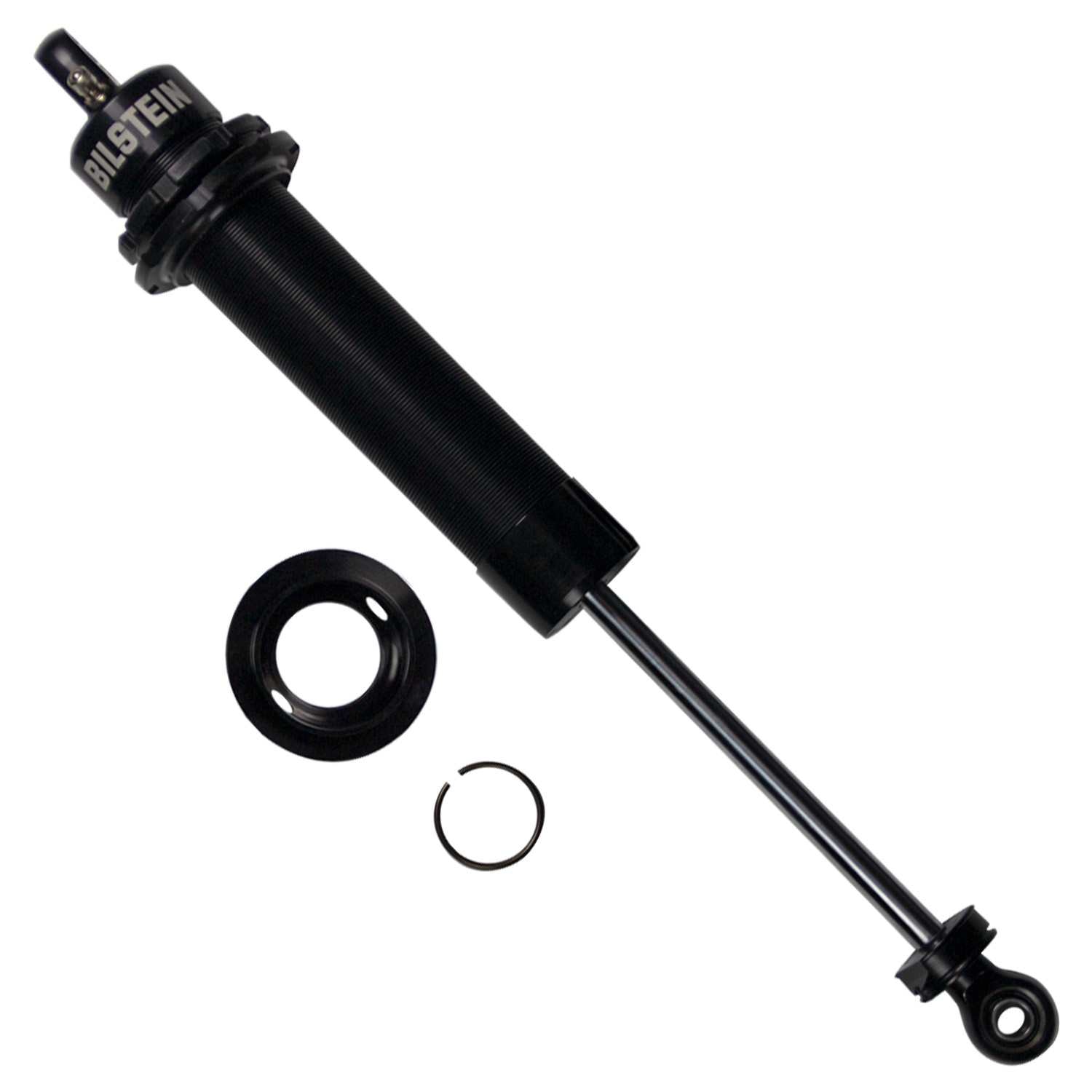

AS2 Series - Suspension Shock Absorber - Bilstein - 33-334066

Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non- single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.46mm lightweight extruded aluminum body for superior heat dissipation; Fine thread body provides precise adjustments in coilover applications; Single and double adjustable shaft options available
Adjustable Damping: Non-Adjustable
Body Design: Threaded Body Screw Top (Coilover)
Body Material: Aluminum
Boot Included: No
Collapsed Length (IN): 12.78
Collapsed Length (MM): 324.6
Extended Length (IN): 19.80
Extended Length (MM): 502.9
FAB: 46mm lightweight extruded aluminum body for superior heat dissipation
FAB: Single and double adjustable shaft options available
FAB: Fine thread body provides precise adjustments in coilover applications
Finish: Clear Anodized
Internal Design: Monotube
Lower Mount Type: 1/2in teflon heim
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Linear
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Segment: Motorsports
Series: AS2 Series
Shaft Diameter: 14mm
Spring Seat Included: Yes
Stroke/Travel Length (IN): 7.02
Stroke/Travel Length (mm): 178.3
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in teflon heim
