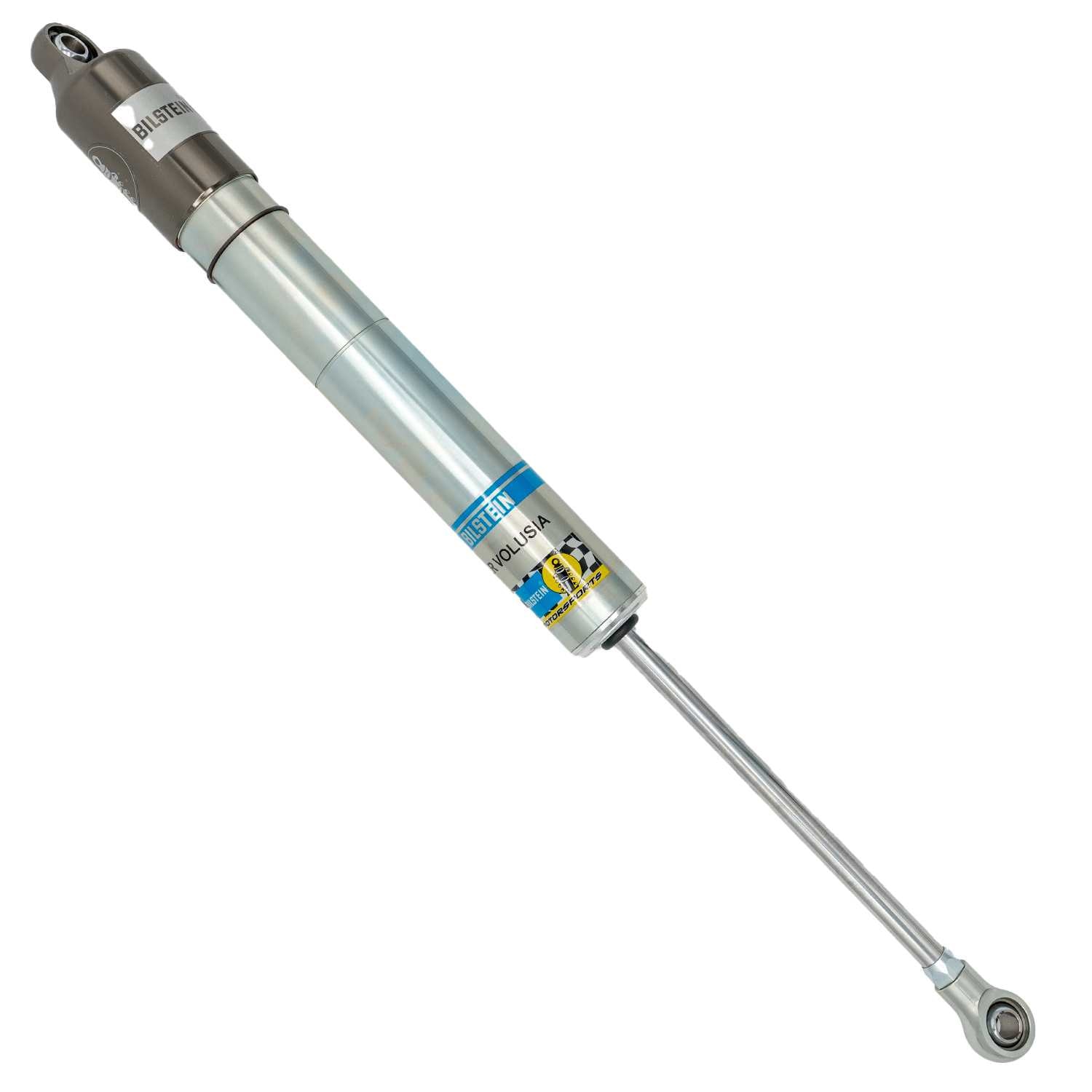

SNS2 Series (BV) - Suspension Shock Absorber - Bilstein - 33-323923

Bilstein SNS2 Series (BV) Suspension Shock Absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately base valve assembly and premium Teflon heims. These Suspension Shock Absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately). SNS2 Series (BV) Suspension Shock Absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.ÂBase Valve design delivers ultra low rod pressures and elminates gas preload; Modular steel body design allows racer rebuildability; Comes with IMCA-legal plug assembly installed (SNS2 Series)
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body Screw Top (Non-coilover)
Body Material: Steel
Boot Included: No
Collapsed Length (IN): 17.40
Collapsed Length (MM): 442.0
Extended Length (IN): 26.14
Extended Length (MM): 664.0
FAB: Base Valve design delivers ultra low rod pressures and elminates gas preload
FAB: Comes with IMCA-legal plug assembly installed (SNS2 Series)
FAB: Modular steel body design allows racer rebuildability
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
PartType: Shocks / Struts
Piston Diameter: 46mm
Piston Type: Digressive
Prop 65 (Y/N): Y
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Segment: Motorsports
Series: SNS2 Series (BV)
Shaft Diameter: 14mm
Spring Seat Included: No
Stroke/Travel Length (IN): 8.74
Stroke/Travel Length (mm): 222.0
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in Heim
